Product Specifications
| Machine Type: |
Industrial Ultrasonic Cleaner |
| Clean Type: |
Industrial Ultrasonic Cleaner |
Product Description

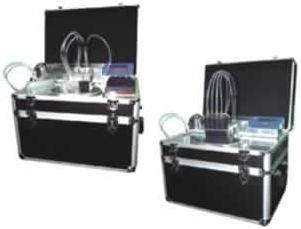

1, Function Parameter Guideline of our printhead cleaner
1) Input electricity---------- AC220V/50Hz
2) Voltage ---------- DC5V
3) Power ---------- 15W
4) Cleaning Frequency ---------- 8KHz
5) Max. Setting time---------- 15minutes
6) Can maintain 2PCS of print head at the same time
2, Application of our printhead cleaner
This product are make for piezo print cleaning processing, usually it can be clean in a few minute and back to work again like usual before it was. To make period of cleaning process to print head is very important, because this can make the life of print head much longer, and decrease the waste clog time, and to accord the low cost.
Every kind of large or small format plotter. Now it is adapt for XAAR, SEIKO, SPECTRA, KONIKA, Epson etc. Most powerful printhead cleaner in the market.
3, User Guide of our printhead cleaner
1) In the power off situation connect the print head and print head cleaner with the connector(Notice the print head connector and print head cleaner have to put in the correctly position)
2) Use glass syringe to inhale the cleaning fluid and use the provided oil tube to connect the inlet of print head and put into the container
3) The cleaning fluid ID 4-5cm deep in container(the front part of print head have to be inside of the cleaning fluid)
4) Turn on the power of print head cleaner(in the meantime you can hear a little noise) then push the syringe slowly and carefully
5) In this time you have to check the clean situation of cleaning fluid, if you have found dirty or something, you have to change the cleaning fluid and then clean the print head again till the print head are all unclog
6) Cut the power off, and disconnect the connector.
| Model | FY-3268D |
| Printhead | Drop on demand Piezo Head(SPT1020-35PL) |
| Number of Printhead | 8 Heads |
| Maximun Print Width | 3,200mm (125.98”) |
| Print Speed | 175m ² / hr 360X360dpi 1Pass |
| 132m ² / hr 240X720dpi 2Pass |
| 91m ² / hr 240x1080dpi 3Pass |
| 97m ² / hr 360x720dpi 2Pass |
| 50m ² / hr 720x720dpi 4Pass |
| Media | Max.width | 3,300mm (129.92’) |
| Max.Weight | 80kg |
| Type | Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper… |
| Thickness | 4mm (Max.) |
| Heating System | 5 way intelligent heater |
| Auto Media Feeding& Take-up System | Equipped |
| Ink | Type | Solvent, Eco-Solvent |
| Capacity | 1L or 5L per Color Main Tank |
| Auto Cleaning System | Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System |
| Print Interface | USB 2.0 |
| Power Specification | AC 220V/230V 50Hz/60Hz |
| Operational Environment | Temperature : 20°C -28°C Humidity : 40%-60% |
| Compatible RIP Software | Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop |
| Dimension &Weight | Machine | L5080mm X W1040mm X H1670mm |
| Package | L5250mm X W1210mm X H1950mm |
