Product Specifications
| Prod Model: |
QDYB1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Pneumatic trainer
2. Peumatic training equipment
3. Automation training equipment
4. Educational training equipment
Product overview:
This training device adopts industrial and ship process control system of pneumatic components and security explosion-proof, industrial shockproof instruments, adopt standard pneumatic control signal (20-100 KPa) simulation range change use pneumatic classic PID control system to realize the liquid level, pressure, and flow rate three type parameter closed loop and continuous process control.
Main parameters:
Size: 1500 mm x 1500 mm x 600 mm;
The power supply: Single phase AC220V, power < 1000 VA.
Main components:

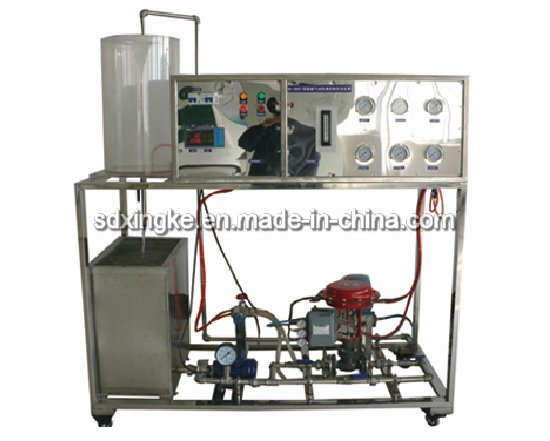

(1) controlled object: The stainless steel frame, organic glass water tank, magnetic pump, water storage tank, orifice board flowmeter, pneumatic difference pressure transmitter), pneumatic ribbon bar indicator, pneumatic control regulation meter, the pneumatic-valve (supporting pneumatic valve locator), gas power converter, air compressor, piping and valves etc.
(2) control system: The junction boxes, switch power (24 VDC), leakage protect, breaker, control switch, AC voltmeter, data collector, digital meter, control key.
Main functions:
The working principle cognition of pneumatic pressure transmitter, pneumatic difference pressure transmitter working principle and practice, pneumatic ribbon indicator working principle of cognition, pneumatic control regulation instrument working principle of cognition, pneumatic valve locator working principle cognition, pneumatic-valve working principle of cognition, air compressor and pressure reducing valve working principle of cognition, orifice flowmeter working principle of cognition, and differential pressure regulator determination, single level set values for the closed-loop control, single closed-loop pressure setting value control, single closed loop flow setting value control, and differential pressure regulator fixed value control. Have a safety protection function.
Annex:
Commonly used tools, the product specification.
