| Supplier: | Qingdao Shengtuo Jichuang Co., Ltd. |
|---|---|
| Price: | US $ 28000-30000/Set |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | ST-C6027 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stype: | CNC Lathe |
| Max. Swing Diameter: | 2700 mm |
| Color: | Yellow and Bule |
| Meteral: | Metal |
| Process Usage: | Metal-Cutting CNC Machine Tools |
| Movement Method: | Contour Control |
| Control Method: | Open-Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | High-End CNC Machine Tools |
Item | ST-C6027 | Unit |

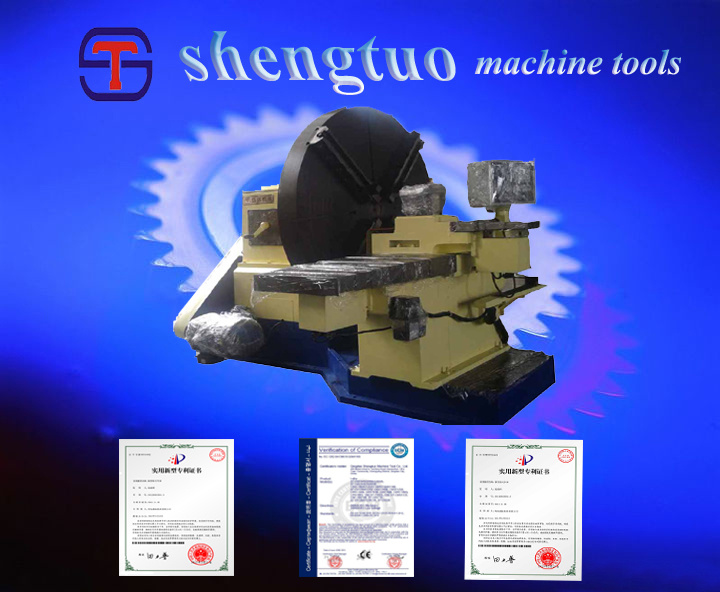

| Type of machine | Facing Lathe | |
| Max. swing diameter of workpiece | 2700 | mm |
| The cross-feed travel of slide carriage | 1000 | mm |
| The longitude-feed travel of slide carriage | 450 | mm |
| Max. length of workpiece | 500 | mm |
| Max. weight of workpiece | 3500 | kg |
| Chuck diameter | 1600 | mm |
| The quantity of the steel jaws | 4 | set |
| Number of spindle speeds | stepless | level |
| Spindle diameter | 220 | mm |
| Spindle bore | 50 | mm |
| Cutter bar section size | 50×50 | mm |
| Spindle speed range | 0~103 | r/min |
| Power of main motor | 11 | KW |
| Power of feed motor | 1.1 | KW |
| Adjusting mode of feed motor | stepless | |
| CNC system | GSK | set |
| Machine power supply | 380v,50HZ,3P | |
| Overall dimensions | 3000× 2200× 2100 | mm |
| Lathe weight | about 8 | t |
| Standard configuration:1 set of headstock,1 piece of 4-jaw chuck Φ1600mm(500mm-long per jaw),1 piece of chuck wrench,1 set of 1.56m bed,1 base,1 set of 11kw main motor,1 set of feed rate motor. | ||
| Optional configuration:Customers can extend the bed ,the base and choose one chuck from chucksΦ 1400mm,1600mm, 1800mm,2000mm(equiped with 800mm jaws) according to workpiece. | ||
| Specific Notice:Customers can customize the lathes according to their workpieces.(Based on changing configuration). | ||
