Product Specifications
| Prod Model: |
AT-TX628 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
3 Inches TFT Screen |
| Fingerprint Capacity: |
3200 |
| Transaction Capacity: |
80,000 |
| Sensor: |
Optical Sensor |
| Communication: |
RS232/485, TCP/IP,USB-Host |
| Optional Function: |
ID/Mifare/HID,Webserver,Printer |
| Dimension: |
180*135*37 Mm |
| Time Attendance: |
Yes |
| Software: |
Free |
| Power Supply: |
5V DC 2A |
| Software System: |
WIN7 |
| Attendance Method: |
Fingerprint |
| Connection: |
TCP/IP, USB |
Product Description

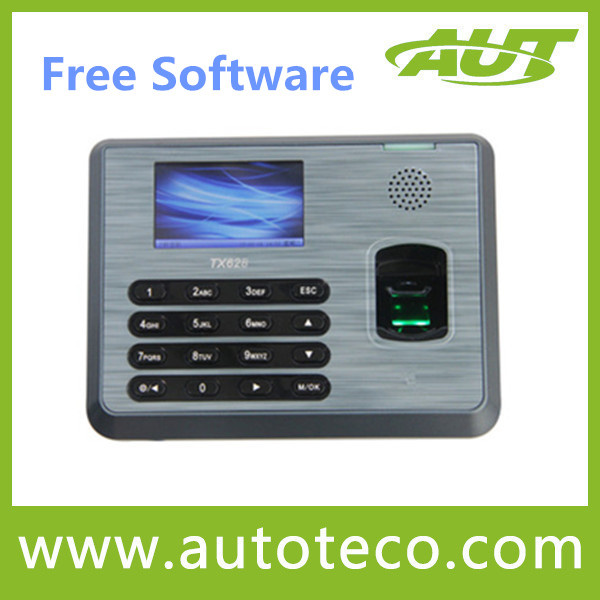

Professional Attendance Software Ethernet Time and Attendance Terminal(AT-TX628)
Introduction:
TX628 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The TX628 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3" TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Features
.Color TFT screen with GUI Interface for ease of use
.Stores 3,200 templates and 80,000 transactions
.Reads Fingerprint and/or PINs
.Optional integrated proximity or smart card reader
.Built-in Serial and Ethernet ports
.Built-in USB port optional, allows for manual data transfer when network isn't available
.Audio-Visual indications for acceptance and rejection of valid/invalid fingers
.SDK available for OEM customers and software developers
Technical Specification
| Fingerprint Capacity | 3200 templates |
| Transaction Capacity | 80,000 |
| Hardware Platform | ZEM510 |
| Sensor | Optical Sensor |
| Algorithm Version | Finger v10.0 |
| Communication | RS232/485, TCP/IP,USB-host |
| Optional Functions | ID/Mifare/HID,Webserver,printer |
| Display | 3 inches TFT Screen |
| Power Supply | 5V DC 2A |
| Operating Temperature | 0 °C- 45 °C |
| Operating Humidity | 20%-80% |
| Dimension | 180*135*37 mm |
| Gross Weight | 0.90 kg |
