Product Specifications
| Prod Model: |
XSZ-PW3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Advantage :
High quality ,excellent cost performance.
High flexibility and stability are the characters of this series microscope.

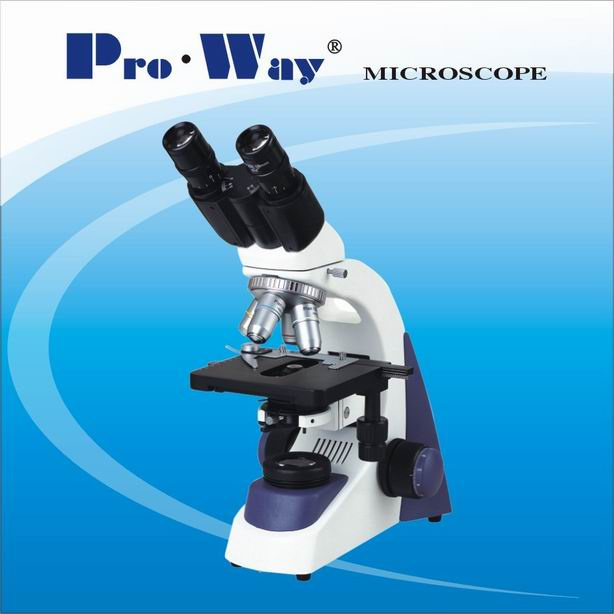

Biological Microscope XSZ-PW3000
Specification:
Magnification range: 40X-1000X
Viewing Head:
Seidentopf Binocular Head; 45 degree inclined;
built-in prism type; Diopter adjustment;
Interpupilary distance adjustment: 52-75 mm
Eyepiece lens:
WF 10x, high-eye point, reticles and pointer available;
Nosepiece:
Quadruple click-stop, revolving mechanism with multiple ball bearings;
Coarse and fine focusing:
Extra-large graduated coaxial coarse and fine focus controls;
Coarse motion torque adjustable;
Mechanical stage:
Stage size 142 (W) x 132 (D) mm; Double-plate system stage with removable slide holder; Travel area 75 (X) x 55 (Y) mm with a right-hand stage handle;
Condenser:
Abbe NA=1. 25 condenser with variable diaphragm and light filter
Objective lenses(Anti-mold):
Achromat 4X, N.A. 0.10, W.D 25mm
Achromat 10X, N.A. 0.25, W.D 5.6mm
Achromat 40X, N.A. 0.65, W.D 0.6mm, spring loaded
Achromat 100X oil, N.A.1.25, W.D 0.14mm, spring loaded
Illumination:
Halogen 6V-20W, 60Hz or 50Hz; Adjustable brightness
Power supply:
100V-240V universal power supply
Standard Accessory:
6V-30W spare halogen lamp ---1pc
Fuse ---1pc
Blue ground glass filter---1pc
immersion---1 bottle
Dust cover --- 1pc
Optional Accessories:
Plan-Achromatic objectives: 4x; 10x; 40(s); 100(s, oil)

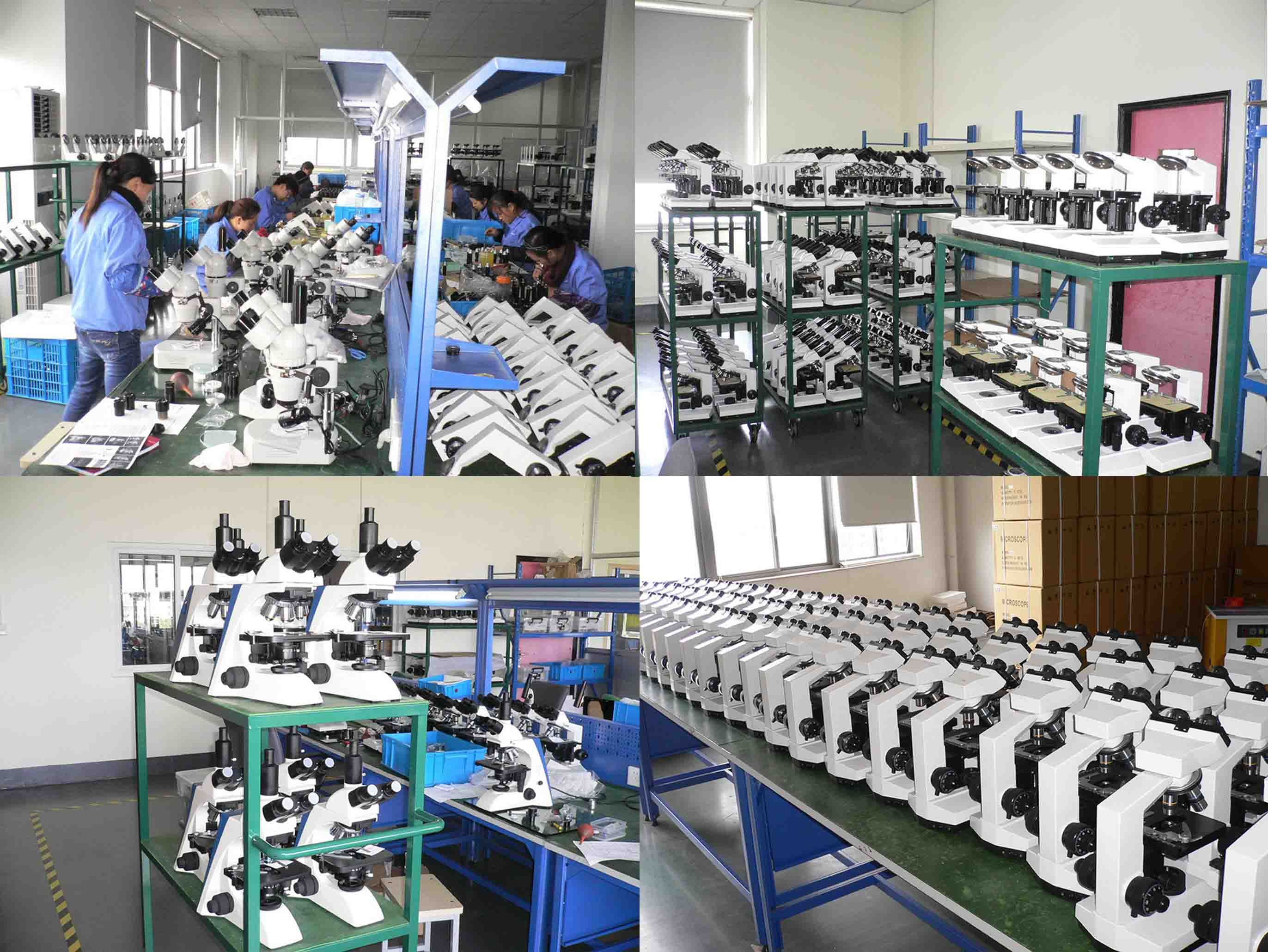

Workshop:
ProWay Optics & Electronics established in 1990s, as hi-tech industrial enterprise and professional supplier of microscopes, we are manufacturing all kinds of conventional compound of microscopes and its accessories, which have highly been applied and used in such domains as education, sanitation, industry and scientific research and etc...
We specialized in microscope filed for more than 25 years, and our ProWay Microscope have been exported to roughly 80 countries and regions. All of our products are CE Certified.
We always commit to follow the latest development of world leading optics and electronics technology, developing high-performance instrument and satisfying with expanding demands of end-users.
ProWay products are becoming more and more welcomed to customers around the world. Our company is making continuous efforts to provide globe users with technology support, excellent quality and best after-sale service.
.
To know more about our company and products, Please visit our website as below,
Ningboproway. En. Made-in-China. com,
If you have interest in our products, we are glad to provide more information and offer competitive quotation for your reference.
Business Type: Manufacturer/Factory,Trading Company
International Commercial Terms: FOB, EXW, CFR, CIF, DAT, CIP, CPT
Terms of Payment: T/T, Western Union, Small-amount payment
Average Lead Time: Peak season lead time: 1-3 monthsOff season lead time: one month
Number of Foreign Trading Staff: 4~10 People
Export Year: 1990-07-01
Export Percentage: >90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Room 8-1, Central Business, No. 54 Dashani Street, Haishu District, Ningbo, Zhejiang, China
R&D Capacity: OEM, ODM, Own Brand(ProWay)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Annual Output Value: US$1 Million - US$2.5 Million
