Professional CCTV Camera for Video Inspection with Record DVR (V8-3288)

Product Specifications

Prod Model:	V8-3288
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Camera Diameter:	50mm
Monitor Size:	8'' TFT Color LCD
LED Lighting:	18 PCS White LEDs
Special Features:	Waterproof / Weatherproof
Lens:	Sapphire Glass
Camera Materail:	Stainless Steel
Image:	Self-Levelling Images
Certification:	RoHS
HDMI Format:	720P
Effective Distance:	0-9m
Sensor Size:	1/3 inch
Remote Control:	With Remote Control
Type:	CCTV Camera
Sensor:	CCD
Style:	Bullet Camera
Feature:	Waterproof / Weatherproof
Technology:	Infrared
Kind:	Autofocus Lens
Horizontal Resolution:	600tvl

Product Description

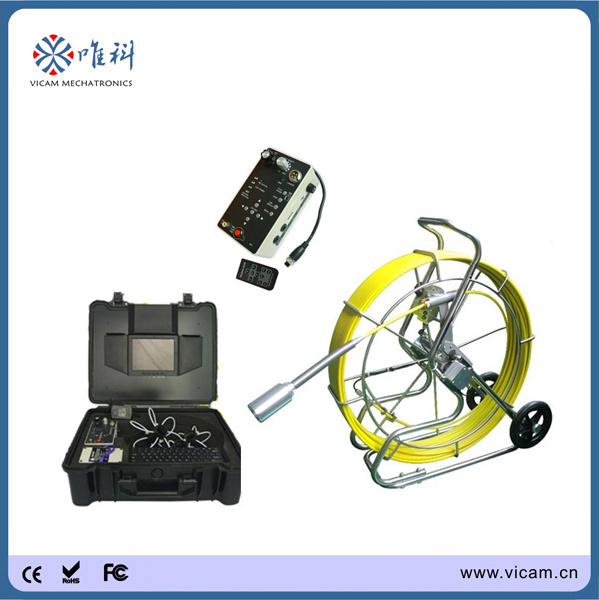

Professional CCTV camera for video inspection with record DVR (V8-3288)

Video CCTV inspection camera Head
* Camera head size Φ 50 x 88mm for pipe Φ 55 to 600mm
* Camera head housing material aluminum
* Camera lens window material sapphire glass
* Sensor size 1/3 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Waterproof IP68
* Field of view 90°
* Camera lighting 18 white LEDS

Video CCTV inspection camera Monitor
* 8 inch TFT LCD color monitor
* Power supply DC 12V
* OSD language: English
* mirror image
* Sunshade included

Video CCTV inspection camera DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card jack (8G SD card included)
* Rechargeable Li-ion Battery power supply (18650 x 6 pcs 4400 mAH)
* USB jack for Keyboard
* Video, audio & photo recording function
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel with meter counter
* Stainless steel Cable Reel size L70 x W28 x H84 cm
* 60m Φ 9mm fiberglass rod push cable (120m optional) with meter counter

USB Keyboard
* Removable waterproof keyboard;
* 2m lead wire;
* USB plug for DVR control box;

Carrying case
* ABS engineering carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Packing & Shipping
Durable ABS carrying case 520 x 435 x 200mm
2 pieces cases in one carton
All products will be tested & inspected before delivery
Tracking No. Will be sent after delivery

Warranty
* One year warranty, whole life service;
* Any problem, freely return within one week;
