Professional Encryption Type Ts Satellite IRD (WDT-1200D)

Name: Professional Encryption Type Ts Satellite IRD (WDT-1200D)
Brand: China-Manufacturer-Directory.com
SKU: 693678815
Availability: InStock
Rating: 4.5 (106 reviews)

Supplier:	Hangzhou Prevail Optoelectronic Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	WDT-1200D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Video Decoding Mode:	MPEG-2 MP@Ml
Dimension:	42434340mm
Demodulation Mode:	DVB-S2/S, DVB-C optional
Power Consumption:	25W
Operating Frequency Range:	950~2150MHz
Certification:	CE
Condition:	New
Function:	Signal Transmission Equipment
Type:	TV Front-end Equipment

Product Description

Specifications
1. Optional DVB-C/DVB-S/DVB-S2
2. SDI output optional
3. With ASI/TS IP output/input, multiplex
4. Support SPTS MPTS
5. CIM module

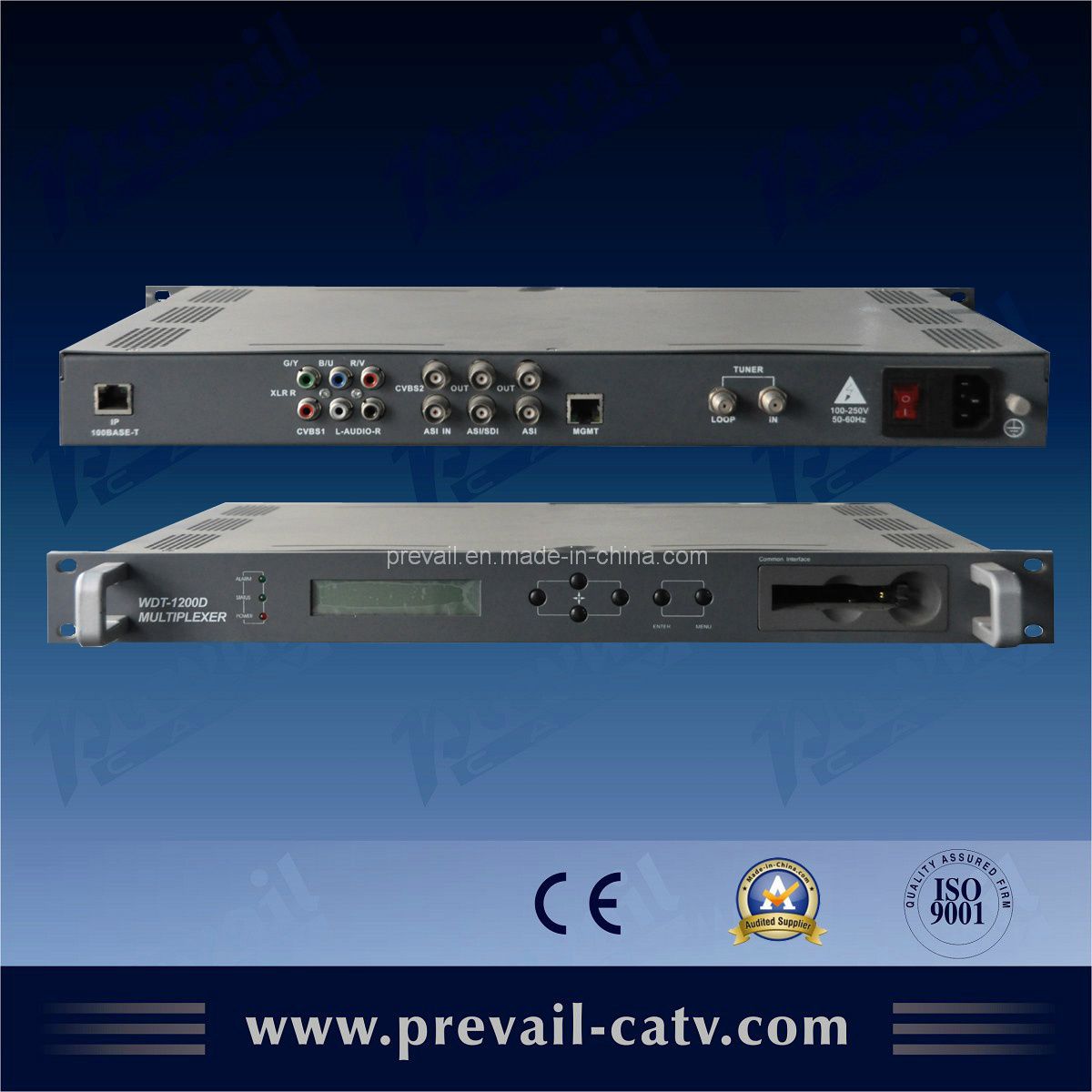

Satellite IRD (WDT-1200D)
L SCPC/MCPC and C/Ku band compatible
L Compatible with DVB-C
L Compatible with MPEG-2 MP@ML
L Supports PAL, NTSC or SECAM
L Supports TS over IP 100M input/output (IP optional), support MPTS and SPTS
L With two common interface slot
L Multi-channel encrypted programs by the specific CAM
L Supports various CAS (Conax, Cryptoworks, Irdeto, NDS, Mediaguard, SECA, Viaccess, Compunicate, etc. )
L SDI video output with digital audio embedded
L Two sets of independent ASI outputs
L Teletext VBI, EBU subtitle and DVB subtitle
L DiSEqC1.2, choose channel fast, multi-satellite multi-LNB function
L Memory protection for power-fail
L Multi-languages and interfaces for choosing
L Local keyboard control and LCD display, or access via Ethernet link

Parameter	Symbol	Description	Unit	Remark
Mechanical dimension
Height	H	42	mm
Width	W	434	mm
Depth	D	340	mm
Input Signal and Demodulation Performance
Operating Frequency Range	-	950~2150(DVB-S/S2) /48~860(DVB-C)	MHz
Receiving Signal Level Range	-	-65~ -25 dBm (DVB-S/S2) /45~ 75dBuV(DVB-C)
RF Catching Range	-	±2.5	MHz
Demodulation Mode	-	DVB-S2/S/C	NA
Symbol Rate Range	-	Symbol rate 5~45MBaud/s for QPSK,10~31MBaud/s for 8PSK/ 1~7MBaud for DVB-C (ITU J.83 Anne× A)
Eb/No	-	3.1(DVB-S/S2)	dB
Antenna choose control	-	22(DVB-S/S2)	KHz
LNB power supply	-	13.0 ±1 / 18V±1(DVB-S/S2)	V	Max300 mA
CI Interface
Descramble processing	-	Support for the European DVB-CSA
Smart Card interface	-	ISO7816
Device exclusive card	-	PCMCIA
Channel Coding
RS Coding	-	RS(204,188)
Convolution Interleaving Depth	-	I=12
Square Root Raised Cosine Roll-off FIR Filter Coefficient	-	0.35/0.25/0.2
Input Interface
RF Signal Input	-	F-Female		with RF loop out
ASI Signal Input		BNC-Female,75Ω
Output Interface
Video Signal Output 1	-	Compound Video Broadcast Signal :RCA 75Ω
Video Signal Output 2	-	Compound Video Broadcast Signal :BNC-Female,75Ω
Audio Signal Output 1	-	RCA:600Ω unbalance low-resistance, R/L
ASI Output	-	1×2-way:BNC-Female,75Ω
SDI Output	-	1×2-way:BNC-Female,75Ω
TS IP input/output	-	RJ45 100Base-T DVB:MPTS IPTV:SPTS(max 6)		≤70Mb/s; Support IGMPV2, Multicast/ Unicast
Human-computer Interaction	-	LCD and OSD interface
Audio Decode
Sound Decode	-	MPEG-I Layer I and II
Audio Operating Mode	-	Single Track/ Double Track/Stereo
Audio Sampling Frequency	-	32/44.1/48	KHz
Video Decode
Video Format	-	4:3, 16:9
Resolution	-	MAX 720 x576
Video Mode	-	PAL/NTSC /SECAM
Video Decoding Mode	-	MPEG-2 MP@ML
Image Resolution	-	720576(PAL) 720480(NTSC)
Video Output Range	-	800±80	mVp-p
Video Synchronization Range	-	300±20	mVp-p
Line Synchronization Front Dithering	-	≤20
Video Frequency Feature	-	±0.5	dB	(≤4.8MHz)
Differential Gain(p-p)	-	≤5	%
Differential Phase(p-p)	-	≤5
Video SNR	-	≥56	dB
Brightness nonlinear	-	±2.1	%
Chroma and Brightness Gain	-	±5	%
Chroma and Brightness Delay	-	≤30	ns
K Coefficient	-	≤3	%

Ordering Information	Description
WDT-1200D-S/S2	DVB-S/S2 compatible, CVBS output, SDI output, ASI input/output, TS(MPTS OR SPTS) over IP input/output(optional).
WDT-1200D-C	DVB-C compatible, CVBS output, SDI output, ASI input/output, TS(MPTS OR SPTS) over IP input/output(optional).
