Product Specifications
| Prod Model: |
wavecom q2403 q2406 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China |
| Module: |
Wavecom Q2403 Q2406 |
| GSM Frequency: |
900/1800MHz |
| Support: |
Bulk SMS Sending and Receivng |
| Gross Weight: |
3kg |
| Package Size: |
24*20*18cm |
| Shipment: |
DHL, FedEx, UPS, TNT, EMS etc |
| Payment: |
T/T, Paypal, Western Union |
| Type: |
Internal |
| Interface Type: |
RJ-45 |
| Transmission Rate: |
14.4Kbps |
| Application: |
Household |
Product Description

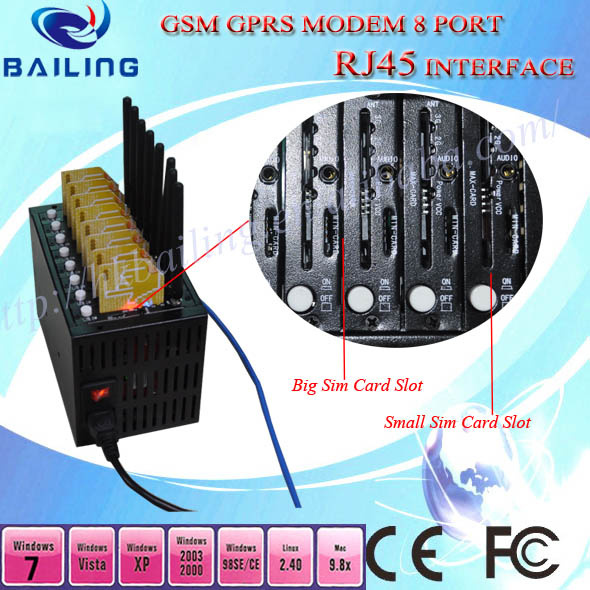

High quality gsm modem pool 8 port based on wavecom q2403a/b q2406a/b module with rj45 interface
PRODUCT FEATURES
Dual Band EGSM/GPRS module (EGSM 900/1800 MHz, EGSM850/1900MHz) designed
Compliant with ETSI GSM Phase 2+standard
Class 4 (2W @ 900 MHz)
Class 1 (1W @ 1800 MHz)
ENVIRONMENT ANDMECHANICSO
perating temperature range:-20°C to +55°C
Storage temperature range:-30°C to +85°C
Overall dimensions:24*20*18cm
Gross Weight:3kg (including package carton)
INTERFACES
Antenna:RF Pad supporting coaxial cable
60 pins board to board connector
Including:
1.3V SIM interface with SIM detection
2.2 microphone inputs and 2 speaker
Outputs
1 SPI/I2C
10 input lines for 5x5 keypad
1 buzzer output
1 vibrator output
2 Analog to Digital Converters
2 RS-232 serial links
IrDA interface
Battery charging interface
AT commands interface:
GSM 07.05 and 07.07 AT commands
Comprehensive set of enhanced AT commands
Open AT APIs:Numerous interfaces for embedded applications
SIM Toolkit release 99
Modem interface:RJ45
APPROVALS
The modules are approved worldwide under test standards including:
1.Radio and Telecommunication Terminal
2.Equipment (R&TTE), Global Certification
3.Forum Certification Criteria (GCF-CC),
4.EMC, Safety and Chinese approvals
VOICE FEATURES
Voice features (GSM mode):
Telephony, Emergency calls
FR, EFR, HR, AMR*
Echo Cancellation and Noise Reduction
DATA FEATURES
Data circuit asynchronous, transparent and non transparent up to 14400 bits/s
Fax group 3 (Class 1 and 2)
GPRS packet Data features
3.Class 10
4.Coding Schemes:CS1 to CS4
5.PBCCH support
MESSAGE SERVICES
Point to point (MT/MO) and Cell Broadcast
GSM SUPPLEMENTARY
SERVICES
Call Forwarding, Call Barring
Multiparty
Call Waiting, Call Hold
USSD
Applications
1.Large shopping malls, supermarkets
2.Professional market, large wholesalers
3.Large hotels,large-scale entertainment
4.Large agencies
5.Transport, logistics industry
6.Large enterprises, and institutions
7.Large hospitals, large bookstore
8.Newspaper, television and radio stations
9.Oil Company ( other chain business model)
10.Government agencies or large township
Supported Operating systems
1.Windows 7 (Home, Premium, Pro, Ultimate, Enterprise)
2.Windows Vista (Home, Business, Ultimate, Enterprise)
3.Windows XP (Pro and Home)
4.Windows Server 2003 (original and R2)
5.Windows 2000 (Server and Pro)
6.MAC etc
