Product Specifications
Prod Model: |
TK116 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model Number: |
Tk116 |
Color: |
Black |
Weight: |
45g |
GSM Frequency: |
850/900/1800/1900MHz |
Working Voltage: |
12VDC/24VDC/36VDC |
Type: |
GPS Tracker |
Use: |
Automotive&Hand Held |
Product Description
People have started using gps tracking solutions for variety of purposes and that's why Eelink brings you some of the best gps tracking solutions. Affordable gps tracking solutions available at Eelink can definitely give you lot of advantages which should make you check out these gps tracking solutions. You will be able to understand that why people are investing money and purchasing gps tracking solutions after reading this article which mentions the reasons making people go for gps tracking solutions.
Specifications
*Realtime vehicle tracking system
*Fleet Management Solution
*Multiple kinds of Alarm
*OTA software update

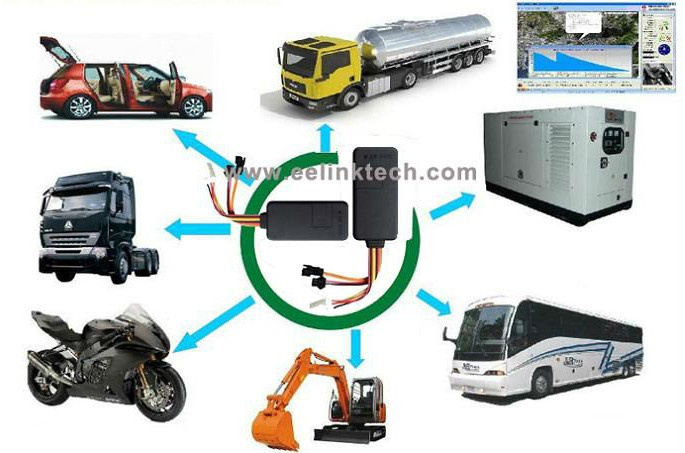

Applications
Car rental solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage: 6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle...
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Platform
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Brand | Eelink |
Model | TK116 |
Quantity | 1 piece(s) |
Color | Black |
Material | ABS |
Network | GSM |
Band | 850\900\1800\1900 MHz |
SIM Card Qty. | one SIM |
Emergency Phone Number Qty. | 3 |
Tracking Information Method | Monitoring and controlling platform |
Power Supply | DC 6~36V |
GPS Chip | SIRF |
GPS Sensitivity | -163 dB |
GPS Channel | 20 |
Position Accuracy | 10 m |
Altitude Limit | 18000 m |
Hot Start | 3 seconds |
Warm Start | 15 seconds |
Cold Start | 60 seconds |
SOS | Yes |
Geo-fence | Yes |
Vibrating Alerts | Yes |
Remote Monitoring | Yes |
Engine Cut Off | Yes |
Realtime Monitoring | Yes |
Track Playback | Yes |
ACC Anti-Theft | Yes |
Overspeed Alerts | Yes |
Low Battery Alerts | Yes |
GPS Blind Area Alarm | Yes |
Voice Call | No |
Waterproof Function | Yes |
Waterproof Rate | Daily user water resistant |
Working Temperature | -35ºC~75ºC |
Working Humidity | 5%~95% |
Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
Certification | CE |
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
