Product Specifications
| Prod Model: |
SF30B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sf30b |
| Rotary Speed Of Spindle(R/Min): |
3800 |
| Finess: |
10-120 Mesh |
| Production Capacity(Kg/H): |
80-300 |
| Material Limit(Mm): |
10*10*10 |
| Motor Power(Kw): |
7.5 |
| Outine.Dim(Mm): |
900*520*1450 |
| Type: |
Sliced Herbal Medicine Machinery |
| Certification: |
SGS |
| Finished Dosage Form: |
Powder |
| Voltage: |
Customized |
Product Description

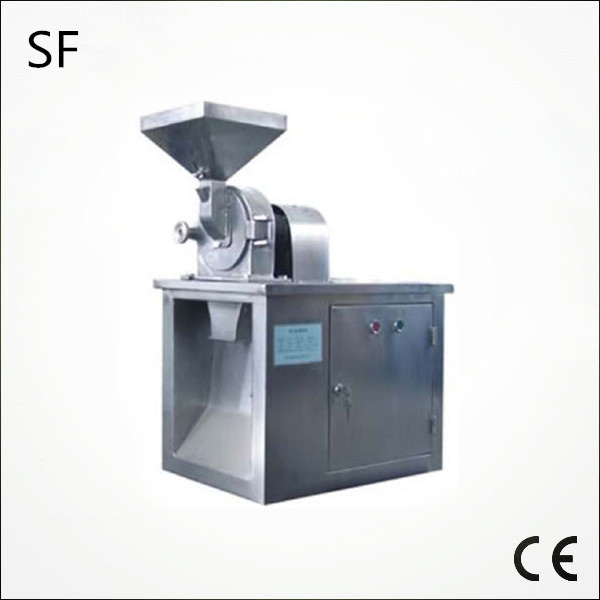

SF Universal Pulverizer
CE Approved
SGS Approved
APPLICATION
SF Universal Pulverizer is widely used in pulverizing the materials in pharmaceutical ,chemical,foodstuff,grain and so on.
It can crush a lot of things,mainly including herbs,chemicals,grocery,etc.
It's features by simple and solid structure,stable running,high grinding efficiency.
FEATURES
1. It utilizes the relative movement between the movable tooth and fixed tooth disc , and the raw materials is grinded by the comprehensive actions such as impacted by teeth, friction, impact between raw materials, finally the materials are crushed.
2. The crushed materials will be discharged through the grinding chamber into the into the collection bag, moreover,different size of granuals or powder can be got through exchanging screen with different mesh.
3. The powder is crushed by the machine is uniform without loss.
4. Its function has reached the domestic advanced level.The machine is ideal universal pulverizer which meeting the GMP requirenments.
MACHINE DETAILS
Model |
Rotary speed of main shaft |
Fineness
(Mesh) |
Production capacity |
Limit materials
(mm) |
Using electric distribution |
Outline dim. (mm) |
SF100 |
8000r/min |
10-120 |
1-2kg/h |
5x5x5 |
0.75kw |
270 x 540 x 480 |
SF130e |
7000r/min |
10-120 |
2-5kg/h |
5x5x5 |
1.1kw |
560 x 350 x 820 |
SE130e
Table type |
7000r/min |
10-120 |
2-5kg/h |
5x5x5 |
1.1kw |
Table type:
600 x 310 x 640 |
SF180 |
4000r/min |
10-120 |
10-20kg/h |
8x8x8 |
2.2kw |
420 x 600 x 1000 |
SF250 |
4000r/min |
10-120 |
50-250kg/h |
10x10x10 |
5.5kw |
860 x 500 x1360 |
SF320 |
4000r/min |
10-120 |
80-300kg/h |
10x10x10 |
7.5kw |
880 x 520 x 1450 |
SF30B |
4000r/min |
10-120(Mesh) |
80-300kg/h |
10x10x10 |
7.5Kw |
900 x 520 x1450 |
