Product Specifications
| Prod Model: |
HPS812D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
TV Front-end Equipment |
| Function: |
IRD |
Product Description
Professional IRD DVB-T2 IRD decoder with Biss function
(4 DVB-T2 tuner input, ASI/IP output, support CAM/CI+Biss function)
Product Introduction

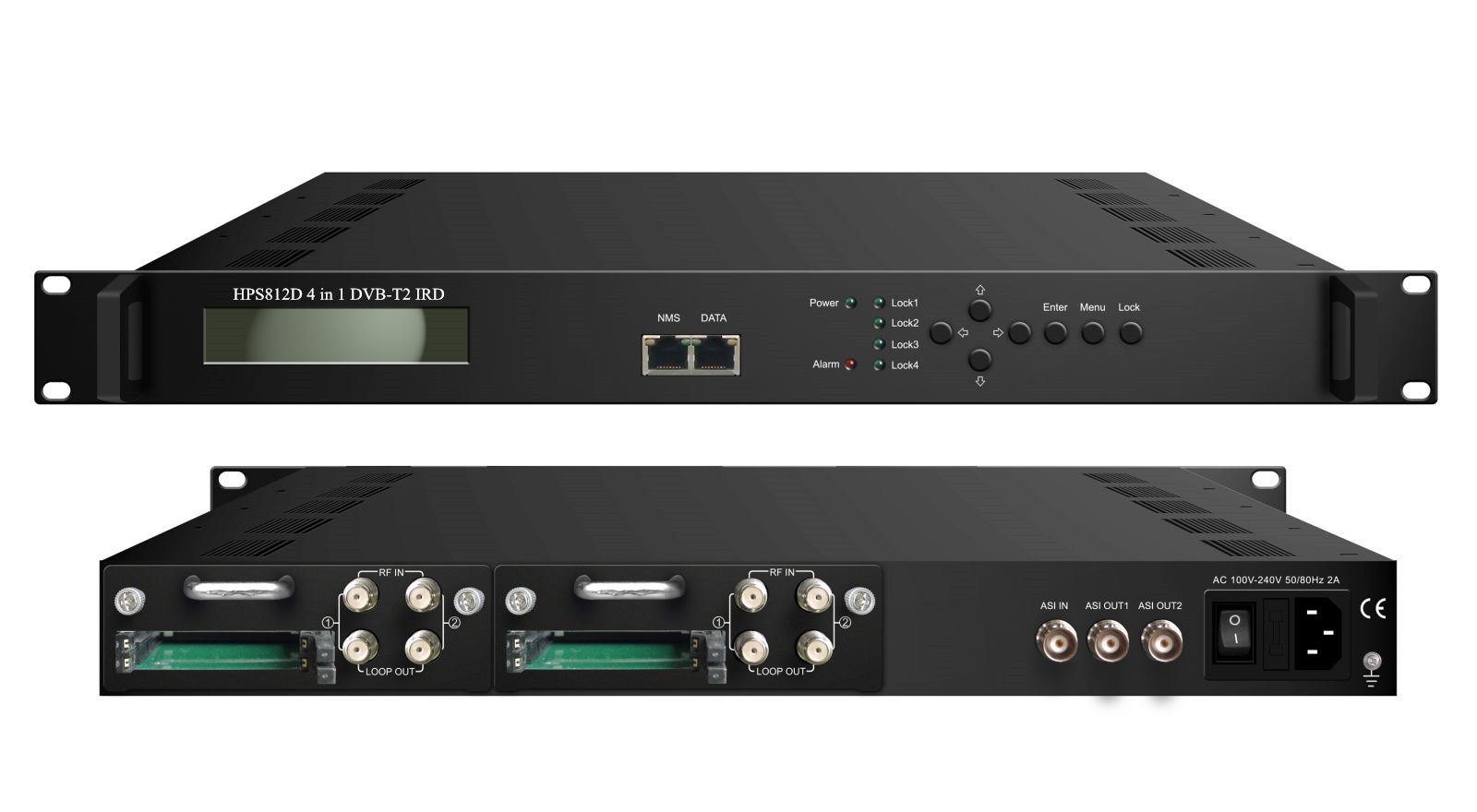

HPS812D IRD is HIPRO's new design which integrates demodulation, de-scrambler in one case to convert RF signals into TS output after re-mux. It is a 1-U case which supports 4 tuner inputs. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs from any input. Its pluggable structure design greatly facilitates the change of Tuner modules as needed. To meet customers' various requirements, HPS812D is also equipped with 1 ASI and 1 IP input for re-mux, and output with 2 ASI ports and IP port.
Key Features
* 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
* 1 ASI & 1 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Support BISS descrambling(Up to 120 Mbps)
* 2 independent ASI output
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output;
* Support maximum 128 PID mapping per input
* Pluggable and changeable demodulator modules
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
Hipro Electronics Co., Ltd. Have been specialised in the research, manufacture of satellite digital CATV front-end equipments and IPTV equipments for more than 10 years in Chengdu, China
We offer full range of IRD & Decoder, Encoder, Multiplexer, Scrambler, Modulator, all-in-one device, We help network operator build digital TV broadcasting system based on DVB-C, DVB-T/T2, DVB-S/S2, ISDB-T solution, and IPTV system solution.
We are also one of leading IPTV operator, adopt the most advanced P2P IPTV streaming technology, customer can watch channels in the world only if there are internet. We can offer Arabic channels IPTV receiver, Turkish channels IPTV receiver, Indian channels IPTV receiver, etc.
All of our products have to undergo a burn-in test before shipment, they are fully connected and have to function correctly for 30 uninterrupted days. Only then can they be shipped to customers.
Hipro have a powerful technical engineer team to provide professional technical support and after sale service.
Hipro always takes the belief" Leading technology first, bring to the beautiful TV world"
