Product Specifications
| Prod Model: |
XP-501T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Advantage :
High quality ,excellent cost performance.
High flexibility and stability are the characters of this series microscope.
Competitive price only for you

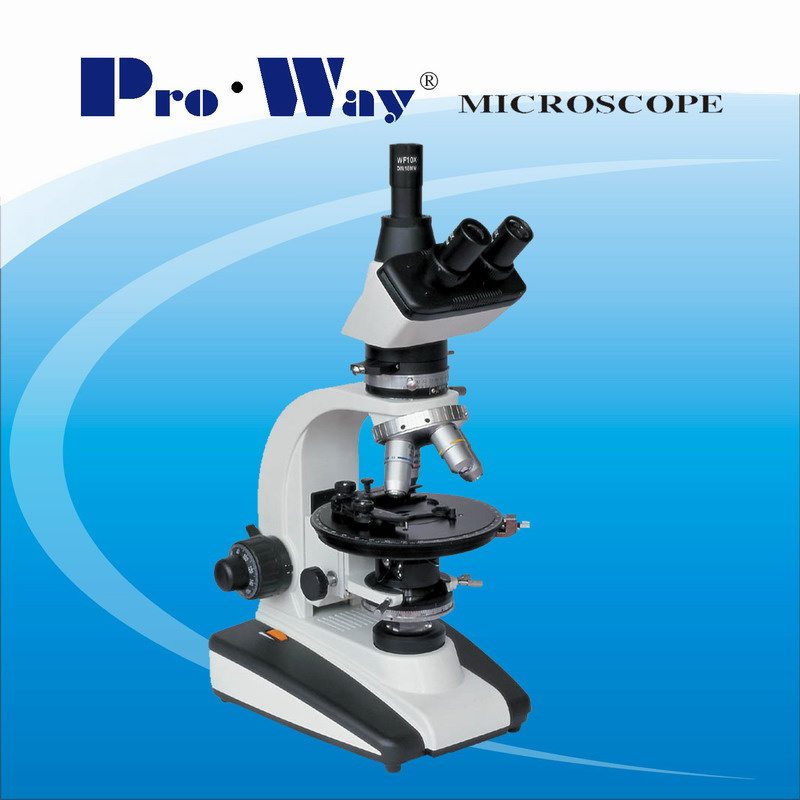

Specification:
Viewing Head: Sliding Trinocular head (Inclined 45 degree)
Interpupilary Distance(IPD): 52mm ~ 74mm
Eyepiece: WF10X, WF10X gridding eyepiece, WF10X with reticule.
Achromatic objective: 4X, 10X, 25X(s), 40X(s), 63X(s)
Stage: Rotatable circular mechanical
Stage. Dia. 160mm
With the graduation of 360 degree
Compensator: λ λ /4; Quartz cleat (12x28mm, I-IV)
Condenser: Swing type Abbe NA=1.25 with Iris diaphrame and filter
Illumination: Halogn lamp 6V/30W, AC85V-230V, Adjustable brightness
Focusing: Coaxial Coarse and Fine Adjustment with rack & pinion
Focusing interval 0.002mm
Standard accessory:
6V/30W spare halogen lmp ---1pc
BGX1-20(0.5A) fuse ---2pcs
Blue ground glass filter---1pc
Dust cover --- 1pc
English manual --- 1pc
Optional accessory:
WF16X Camera Eyepiece

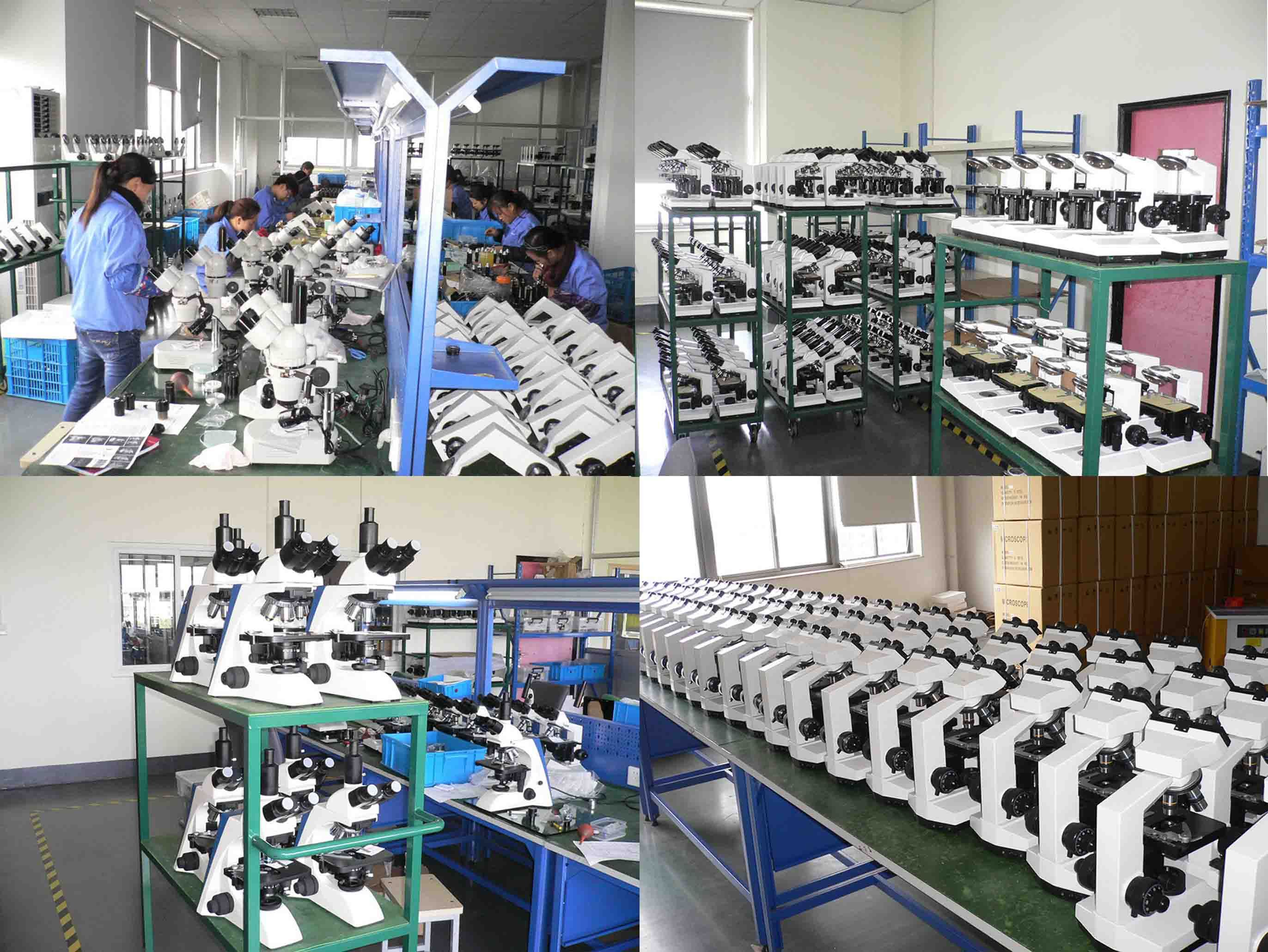

Workshop:
ProWay Optics & Electronics established in 1990s, as hi-tech industrial enterprise and professional supplier of microscopes, we are manufacturing all kinds of conventional compound of microscopes and its accessories, which have highly been applied and used in such domains as education, sanitation, industry and scientific research and etc...
We specialized in microscope filed for more than 25 years, and our ProWay Microscope have been exported to roughly 80 countries and regions. All of our products are CE Certified.
We always commit to follow the latest development of world leading optics and electronics technology, developing high-performance instrument and satisfying with expanding demands of end-users.
ProWay products are becoming more and more welcomed to customers around the world. Our company is making continuous efforts to provide globe users with technology support, excellent quality and best after-sale service.
.
To know more about our company and products, Please visit our website as below,
www.proway-microscope.com,
If you have interest in our products, we are glad to provide more information and offer competitive quotation for your reference.
