Product Specifications
| Prod Model: |
ZD-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

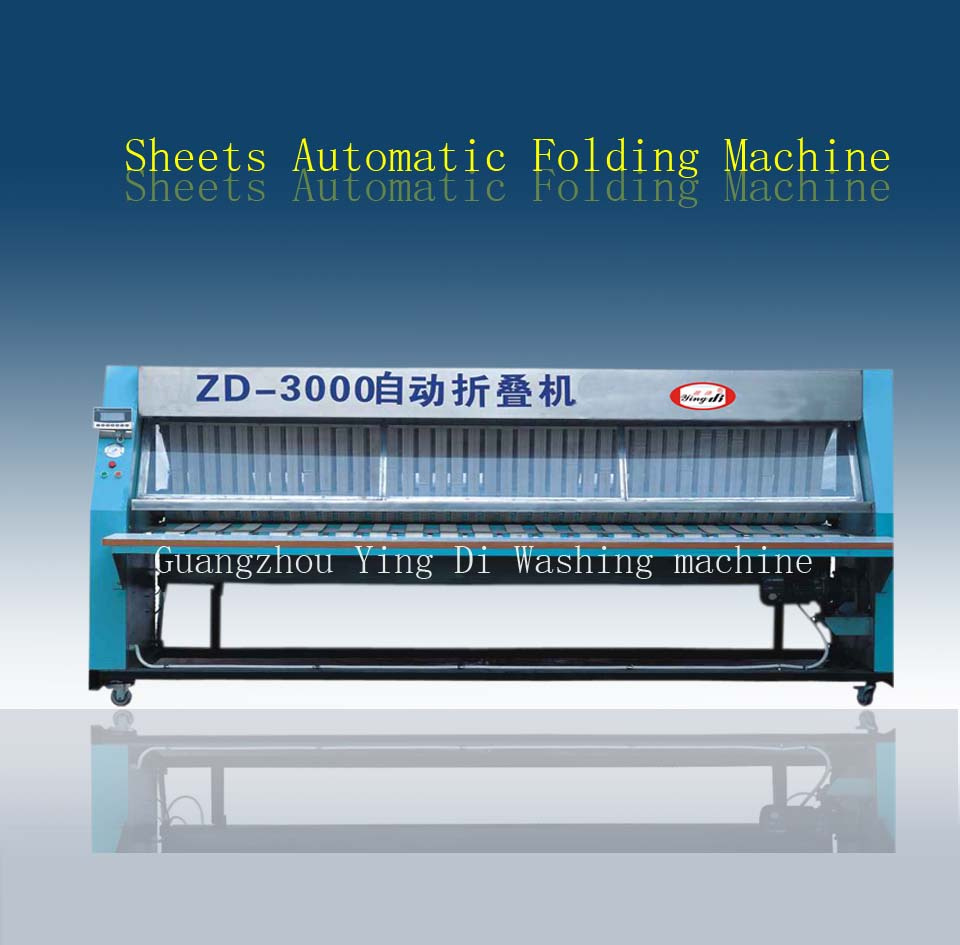

Professional sheet, bed sheet, table cloth automatic folding machine, for industry washing machines series:
Folding machine is the down stream support equipment of the ironing machine. It processes 2 forward lengthwise folding and 3 left/right breath-wise folding size is 3000× 3000mm.
2 sets of independent variable Frequency Drive control system with folding speed enable the unit to be adaptable and attached to various type of ironing machine. PLC control system. High electric noise resistance. Sophisticated smart high resolution LED display touch screen provide good human interface. Complete self-diagnostic capability enables daily safe operation and maintenance of the machine. First in the country to apply anti-static effect feature onto the machine to enhance reliability and stability.
Model: ZD-3000
Max folding L× W(mm): 3000× 3000
Max number of folds(times): 4
Folding speed(m/min): 10-50
Air pressure(Mpa): 0.7
Pressurized air(m³ /min): 0.2
Specified In-put power(KW): 1.5
Extemal dimension(mm): 3430× 3100× 1600
Machine total weight(kg): 1600.
Guangzhou Ying Di Washing Machinery Co., Ltd. is a research, development, manufacture and service of high-end washing equipment manufacturers, strong technical force, exquisite production technology, advanced testing equipment, and the establishment of a comprehensive scientific quality management system. Good quality, perfect after-sales service, won the praise of users, widely used in various star hotels, laundry centers, troops, food industry, health care system, medicine, schools, enterprises and institutions. Products sold throughout the country for many years exported to Europe, Africa, Middle East and Southeast Asia more than 50 countries and regions.
The products cover the entire washing equipment industry, including: Industrial Automatic laundry machine, industrial Tumbler Dryer, industrial Ironing machine, industrial Folding machine, automatic laundry dryer, automatic dry cleaning machine, universal clip machine, Spotting Board, Vacuum Ironing Board, Towel flatwork Ironer, multifunction ironing table, etc., Also we specialize in design what you needs equipment style, we can manufacture washing equipment and related products as your request.
