Product Specifications
| Prod Model: |
Sx-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Packed in Wooden Case |
| Weight: |
260kg |
| Volume: |
0.82cbm |
| Warranty: |
3 Years |
| Maintainance: |
Lifetime |
| Coating: |
Coil Coating |
| Type: |
Coating Production Line |
| Substrate: |
Steel |
Product Description

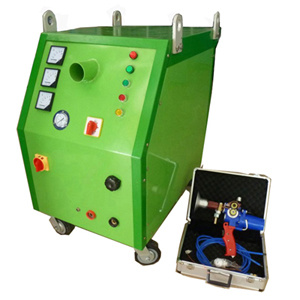

professional spray coating
Model:SX-600
Composition:power supply, supersonic arc spray gun,control system and compressed air system
Coating material:zinc,aluminium,copper,etc.
Occupied area: 15-50m²
Advantage: easy for operation
Application:
1, hardware industry(cultery,steel hardware).
2,machinery,metallurgy
3,bridge,furnace.
4,electrical industrial and chemical industial.
Color:white,grey,black,according to the coating material's color
Technical Parameter
Power supply:three-phase 380v,50HZ |
Rated current:600A |
Rated input power:22KW |
Input current:22A |
Output volt:45V flat
characteristic |
Output current≤400A |
Load factor:60% |
Volt regulationg rank:9 |
Insulationg grade:E |
Wire diameter:2mm |
Spray effiency:zinc 34kg/h,aluminium 34kg/h,alloy 36kg/h |
Measurement:60*45*85cm |
Net weight:205kg |
|
principle
Supersonic arc spray machine sends two spraying metal wires to the two electric mouths of spray gun, and the electric mouths link to the high-current and low-voltage two electrodes. When the two metal wires contact with each other, there will be a short circuit which can make an arc, and the metal wire would be melted by the 5000ºC heat which is produced by the arc. Then the melted wire would be pulverized to micro particles by high-velocity compressed air.These micro particles then are sprayed on the surface of workpiece by the compressed air with a supersonic speed (above 400m/s) to make a coating. Compared with normal arc spray coating ,the supersonic spray coating has smaller and compact micro structure, and stronger adhesive force.
Our service
(1) Vacuum Plasma Spray Machine
(2) Sputter Target Produce Equipment and technology
(3) Precious metal vacuum coating equipment
(4) Cooker magnetism and thermal conduction coating spraying production line
(5) Industrial water chillers
(6) Thermal Spray Coating Services
(7) HVOF spray equipment
(8) Arc spray equipment
(9) Electro Brush Plating Equipment
(10) High power flame spray plastic equipment
FAQ
Question:What's the use of your machine?
Answer: Our machine is for surface treatment.
Question:Do you offer the training for the machine operation?
Answer: Yes,we do,we can offer the training for free.
Question:Do you offer the coating service besides machine?
Answer: Yes ,we do,we can offer the coating service around the world,we can spray the workpiece in our factory or send people to where you are.
Guangzhou Sanxin Metal S&T company which is a professional thermal spray coating machine manufacturer and spray coating service supplier from China, we have been engaged in thermal spray more then 30 years. Our machine and service is popular around the world, such as Middle East, Africa, USA, Germany, Russia and so on.
