Product Specifications
| Prod Model: |
DTSF722 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current(a): |
3*1.5(6) 3*5(20) 3*10(40) 3*15(60) 3* 20(80) 3*30 |
| Rated Voltage(V): |
3*220/380vor 3*57.7/100V |
| Rated Frequency(Hz): |
50 or 60 |
| Accuracy Class: |
Class1 or Class2 |
| Display: |
Digital |
| Usage: |
Multi-rate Watt-hour Meters |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description

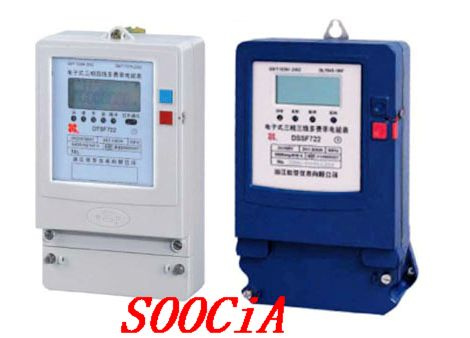

DTSF722 type three-phase electronic multi-rate watt-hour meter
1.Brief introduction of product
The DTSF722 type three-phase electronic multi-rate watt-hour meter adopts the advanced special energy measuring chips and the multi-rate technology, using the date sampling and SMT technology. The product is designed and produced according to the practical situation of the deweller. All the indexes of the meter accord with the standard of the GB/T15284-2002 "Multi-rate(Time-sharing)Watt-hour Meter" and GB/T 17215.321-2008 " Class 1 and 2 Static A.C Active Watt-hour Meter" the communication accord with DL/T 645-1997 "Multi-function Watt-hour meter communication rule".
2. Function and features
-Each of hour periods has different rates(point period, peak period, smooth period and tough period). Every period of time can be programmed into 12 periods of time and the minimum time of interval is five minutes
-All the consumption date can be reserved for 12 months
-The meter adopts the advanced energy measuring chips, high capacity CPU and RTC clock chips
-Recording the active electric quantity and the electric quantity under every rate and reserve it
-High accuracy, sensitivity and reliability, wide overload endurance, low power consumption and light in weight
-Auto accumulate and recording the working time of the battery
-Display the present time, rate, total electric power and every rate electric power
-Communication agreement accord with DL/T645-1997
-It has pulse output communication, pulse width: 80ms+ or-20ms
-It adopts the password and program switch protection, recording the latest program time and degree
-It can setup the meter number, bureau number, time period, rate, date, time, meter reading time, password and the initial electric power.
3.Main Technical data
Rated Current(A):3*1.5(6) 3*5(20) 3*10(40) 3*15(60) 3* 20(80) 3*30(100)
Rated voltage(v): three-phase three-wire 3*100VA or 3*380V three-phase four-wire 3*220/380Vor 3*57.7/100V
Rated Frequency(Hz): 50 or 60
Accuracy class: class1 or class2
Clock error: <=0.5sec/day <=1.0sec/day
Battery:Imported lithium battery: voltage:3.0V or 3.6V capacitance>=1000mAh
