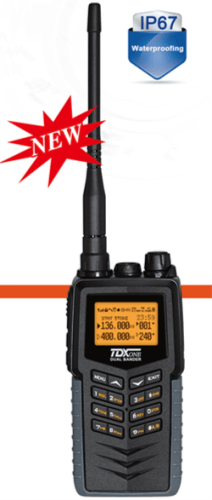

Product Specifications
| Prod Model: |
TDX-Q12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Trademark: Tdx: |
Packing: Beautiful Coloreful Box |
| Production Capacity: 10000PCS/Month: |
Origin: China |
| Wavelength And Frequency: |
Short-wave |
| Application: |
Industrial |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description
Main Function:
IP67 waterproof protection CTCSS\DCS
Monitor Squelch level
DTMF VOX function
Whisper Talk around
Wide \ Narrow band setting Dual monitor function
Working mode Language setting
Automatic relay function Frequency Step setting
Keyboard lock High \low power switching
Alarm clock Date &Time Setting
Flashlight illumination Busy channel lockout function
Battery Save Function Offset Frequency\direction Setting
FM Radio Watch Priority channel Scan
Scan Resume APO (Automatic Power Off)
Low power alert Automatic contact & call
Power-on password setting Transmit over beep prompt(ROG Beep)
Channel deleting setting Transmit begin beep prompt(Begin Beep)
Channel name editing\display Optional backlight color setting for Rx, Tx, Standby
Specifications:
Frequency range: 136-174 400-520 MHz
Channel Number: 240
Channel Spacing: 25\12.5 KHz
Operating Voltage: 7.4V DC
Dimension (W X H X D): 55.5mm X 119.2mm X 30.5mm (without antenna & battery)
Weight: 127 g (without battery)
Transmitter:
Battery: 1700mAh Polymer lithium battery
Frequency Stability: ±2.5 ppm
Operating temperature range: -25ºC ~65 ºCºC
Antenna Impedance: 50 Ω
Receiver
Sensitivity ≤0.25/0.28μV
Adjacent Channel Selectivity: 65/50dB
Intermodulation Resistance: 60dB
Sputious Rejection: 65dB
Signal to noise ratio: 40/35dB
Audio power output: 1W
Audio frequency distortion ≤5%
Accessories:
* 1 X Antenna
* 1 X 1700 mAh Polymer Li-ion battery
* 1 X Belt clip
* 1 X Strap
* 1 X User's manual
* 1 X Power adapter
* 1 X Desktop charger
