Product Specifications
| Prod Model: |
V belt |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2000 ISO9001:2008 |
| Key Word: |
Rubber Conveyor Belt |
Product Description

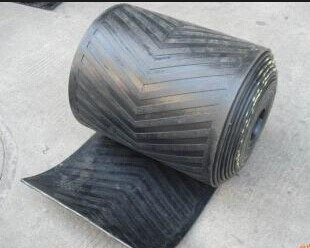

Patterned Conveyor Belt
Brief introductions:
Its work surface is covered by pattern shape rubber and the non-working surface is covered by flat rubber. Its core is consisted of Angle conveyor belt.
Description:
(1) core material: Ordinary cotton canvas (CC), polyester cotton blended woven canvas (CP), nylon (NN), polyester (EP), etc
(2) bandwidth: 300 ~ 1700 mm space between two patterns125, 200, 250, 330, 400, 500(mm)
(3) pattern height: 5, 10, 15, 20, 25, 30 mm
Note: Pattern shape can be in accordance with the requirements of customers' design
(4) features: Suitable for Angle 0 ° ~40 and material delivery, prevent material down
Advantages:
1. Good anti-impact
2. High adhesion, good flexing capacity
3. Good trough ability
4. Higher strength, smaller thickness and weight compared with EP belts
5. Good resistance to moisture and heat, corrosion resistant
6. Good wear ability and long service life
Usage:
Suitable for bulk, material packed in bag conveying up to 45, side resistant and high conveying capacity. Mainly used in moist conveying occasion at high speed
Type:
Patterned convey or belt
1. Shallow patterned conveyor belt
(Pattern depth below 10 mm, Conveying Angle20° ~30° )
2. Deep patterned conveyor belt(Pattern depth above10mm, Conveying Angle30° ~45° )
|
Specification and technical data of multi-poly polyester conveyor belt |
|
Fabric type |
Fabric structure |
Fabric
specs |
Ply
thickness
(mm/p) |
Strength series(N/mm) |
Cover Thickness(mm) |
Width
mm |
Length
m |
|
Warp |
Weft |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
|
Polyester
(EP) |
Polyester |
Polyamine |
EP-80 |
0.80 |
160 |
240 |
320 |
400 |
480 |
2.0-8.0 |
0-4.5 |
400-1600 |
≤300 |
|
EP-100 |
0.80 |
200 |
300 |
400 |
500 |
600 |
|
EP-125 |
0.85 |
250 |
375 |
500 |
625 |
750 |
|
EP-150 |
0.90 |
300 |
450 |
600 |
750 |
900 |
|
EP-160 |
0.90 |
320 |
480 |
640 |
800 |
960 |
|
EP-200 |
1.05 |
400 |
600 |
800 |
1000 |
1200 |
2.0-10.0 |
0-6.0 |
500-1600 |
|
EP-250 |
1.25 |
500 |
750 |
1000 |
1250 |
1500 |
|
EP-300 |
1.35 |
600 |
900 |
1200 |
1500 |
1800 |
|
EP-350 |
1.50 |
- |
1050 |
1400 |
1750 |
2100 |
3.0-10.0 |
0-6.0 |
600-1600 |
|
EP-400 |
1.80 |
- |
- |
1600 |
2000 |
2400 |
|
EP-500 |
2.00 |
- |
- |
2000 |
2500 |
3000 |
