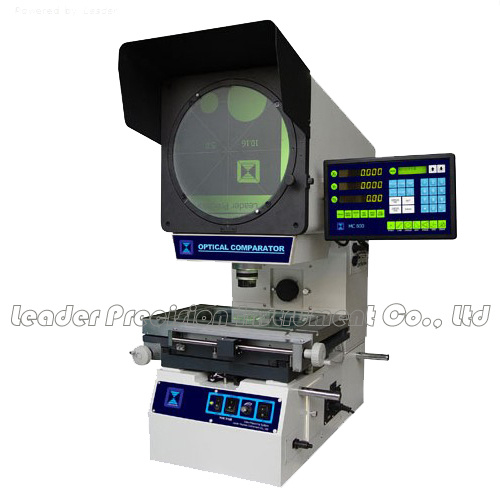

Profile Projector PP&Optical Comparator (VOE-2515)
Product Specifications
| Prod Model: |
VOE-2515 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stage Travel X Y 150mm*250mm: |
Screen Diamete: 300mm |
Product Description
Character:
1. Full erect: Not be affected by upside down and division in the left and right
2. High precision: (3+L/75) μ M is comparable to the accuracy of the foreign similar products
3. Large travel: 250*150*100(for the focus)
4. Large load: The accuracy remains stationary under the press of 50 kg
5. Projector head: Adjust the focus by ascending and descending
6. Edge detector: Automatically aim and gather data.
|
Reverse |
VOE-1510O |
VOE-2010O |
VOE-2515O |
|
Obverse |
VOE-1510 |
VOE-2010 |
VOE-2515 |
|
Metal table' s size(mm) |
357*228 |
404*228 |
450*280 |
|
Glass table' s size(mm) |
210*160 |
260*160 |
306*196 |
|
Stage Travel X-axis |
150mm |
200mm |
250mm |
|
Stage Travel Y-axis |
100mm |
100mm |
150mm |
|
Stage Travel Z-axis |
100mm(for focus) |
100mm(for focus) |
100mm(for focus) |
|
Accuracy |
≤ ± (3+L/75)µ m |
≤ ± (3+L/75)µ m |
≤ ± (3+L/75)µ m |
|
Screen |
Screen Diameter: Diameter 312mmwith 4 film clips |
|
Screen rotary range: 0° -360° |
|
Rotary angle resolution: 1' or 0.01° |
|
Digital Readout |
MC800 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance). |
|
Illumination |
Transmission and reflection: 24V/150w-halogen lamp. |
|
Power |
AC110-120v, 200-240v, single phase 50/60Hz Total power 400W |
|
Cooling |
Fans |
|
G. W/N. W |
220/170KG |
225/175KG |
230/180KG |
|
Dimension(L*W*H mm) |
780*910*1120 |
780*810*1120 |
780*810*1120 |
|
Digital Readout MC800 |
VOC-10X Objective |
Screen Clamp |
|
Foot-Switch |
Power Cable |
Light source |
|
Measuring Software |
Edge Detector |
Charts (3 kinds) |
|
VOL-20X Objective |
VOL-50X Objective |
VOL-100X Objective |
|
Holder Clamp |
V-shape Clamp |
swivel center support |
|
Mini-printer |
Rotary table |
Calibration Scale |
