Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |

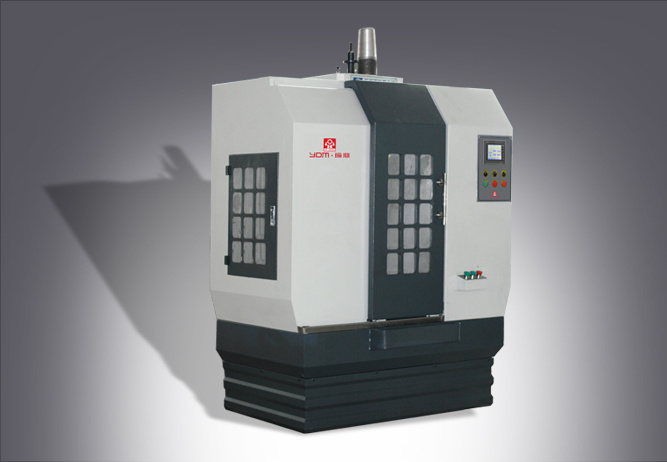

Product Description
Technical Parameter
Max. Drilling Diameter: φ 50mm
Max. Tapping Diameter: M45 G1 1/8'
Drilling Spindle Motor: 3KW/4P
Tapping Spindle Motor: 2.2KW/6P
Spindle Rotation Speed:
Drillling: 790, 1200r/min
Tapping: 435, 620r/min
Spindle Feed Travel: Drilling: 140mm Tapping: 120mm
Spindle Diameter: φ 95mm
Spindle Taper: BT40(7: 24-40#)
Distance between Spindles: 250mm
Distance from Spindle Face to Worktable: 460/160mm
Distance from Spindle Axis to Column: 310mm
Worktable Size: 760× 240mm
Worktable Travel:
Lateral Direction: 260mm
Longtitudinal Direction: 150mm
Diemensions: 1600× 1900× 2350mm
Weight: 1700kg
Main Components
1. Casted Iron 6 Pieces: Base, Column, Spindle Box, Lift Platform, Panel, Worktable
2. All the spindle bearings come from NSK Japan.
3. Power Heads with 2 Phase Feeding Speed Adjusting Device (The user can adjust the speed according to the pricision of the workpiece)
4. All the spindle bearings come from NSK Japan.
Electrical System: Electrical Control Cabinet, Imported Ermersion Programmable Controller(PLC), Man-machine Operating System, Schneider 5. Touch Screen, Electrical Components.
6. Hydraulic System: Individual Hydraulic station, with forced air cooling system, solenoid valve from Taiwan brand, Oil Pump from Taiwan CAMEL, Oil 7. Pump Motor from Taiwan CT.
Cooling System: Water Tank with volume 120L.
8. Manual Lubrication system: with manual lubrication pump
Sheet Metal
9. Tool Box, including operating manual, guarantee Card, User Feedback Form, Qualified Certificate, Common Tools.
10. Gravity Arbor, not including cutter tools.
11. Optional: Hydraulic Vice YD-HQ-140 with Dove Tail Jaw
Our company has obtained the ISO9001 seal and has received national patent for machinery outlook, being also granted the national Quality Trustworthy Products"award. YuDing has stressed on brand building from the very beginning, so we have always consider th quality of products to be the life of the company.
In order to create the best value for new products, we set high standards in every product characteristic, from the appearance to th effectiveness of operation, passing through work results and humanistic operation. YuDing products have been granted the "Quality Trustworthy Products"award by CQGC. Meanwhile, in th area of after of after-sales service, we are doing our best to meet customers'need.
