Product Specifications
| Prod Model: |
K-1150/1370CL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Paper Machine |
| Type: |
Paper Cutting Machine |
| Automatic Grade: |
Automatic |
| Certification: |
CE |
| Computerized: |
Yes |
Product Description

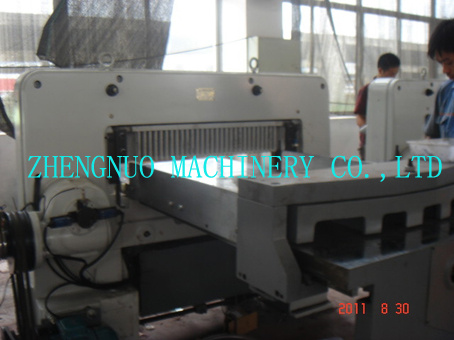

Program control paper cutter machinery
This model adopts Japan AC digit servo control system, 15inches colorful liquid crystal display screen of resolution rate is 0.01mm, has self-diagnostic function of troubles and displays the operating pattern, It has 1000 program units, more than 100000different cutting position, dynamic cutting display, running situation, dynamic follow-up. The max paper-pushing speed is 25m/min, it adopts stronger computer operating system. It can memorize store the storage time can be up to 300000 hours above. It has self maintenance to the operating system. Adopt Italy hydraulic components, Germany Japan and Korea electric components. Taiwan ball lead screw and linear guide-rail are used. PLC controller can monitor all the electrical and mechanical section. Its key parts adopt imported bearing of low maintenance.
Main features:
1. The displaying panel use Japan 15inch, you can adjust the color by yourself.
2. They have the high quality colors(25600), their storage can reach 100 groups, every group have 999 cut, Its storage time can reach 300, 000 hours.
3. The multi-language operating interface, such as Chinese, English, Spanish...
4. It has luminous shortcut key so as to ensure the hight stability.
5. Electric control appliance adopt from French Schneider, Omron, . Using Japan NSK Bearing Servo motor is from Japan.
6. Single hydraulic Hydraulic system USES ISO standard hydraulic components (paper pressing and cutting both by hydraulic), pressure paper strength size is adjustable.
7. Flat worm speed reducer transmission. Through the clutch for best load transfer machine operation, compact, quiet.
8. Ejecting device for knife bar Safety device for knife bed, overloading protection for cutting, automatic return safety device.
9. IR(Infrared Radiation) photoelectric protection, buttons by two hands safety devices.
10. Exquisite PRO-cyclical protection device of appearance design, easy operation, the cutting both safety thing straying knife gate block glazing.
11. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Push the paper deft and mattress formed, shipped paper lightweight mattress effortless.
12. Slotless double guide way-rail working table, linearity guide way is from Taiwan.
13. Lineraity guidway The material is bearing steel. Which has the high strength, thus it has the high accuracy.
14. Hydraulic system apply rapid pressure lifting system with adjustable pressure. (self-lock structure hydraulic system as option. ) Hang hook type knife mounting structure make knife exchange work more simple.
15. Roller ball lead screw: ABBA(can be selected)Rail guide way: ABBA(can be seleced)
16. The quality of knife is much better than digital display paper cutter
|
Model |
1150 |
1370 |
|
Cutting width(cm) |
115 |
137 |
|
Cutting height(cm) |
16.5 |
16.5 |
|
Cutting length(cm) |
115 |
145 |
|
Main motor power(kw) |
4 |
4 |
|
Net weight(kg) |
3800 |
4500 |
|
width with sideway(cm) |
265 |
287 |
|
width without sideway(cm) |
236.5 |
238.5 |
|
length(cm) |
246.5 |
278.5 |
|
height(cm) |
165 |
165 |
|
Front table length(cm) |
73.5 |
73.5 |
|
table height(cm) |
90 |
90 |
|
Clamp pressure min(dan) |
150 |
150 |
|
Clamp pressure max(dan) |
8000 |
8000 |
|
Knife thickness(mm) |
13.75 |
13.75 |
|
Grinding reserve(cm) |
6 |
6 |
|
Smallest cut with out false clamp(cm) |
2.5 |
2.5 |
|
Smallest cut with false clamp(cm) |
9.5 |
9.5 |
|
Cutting speed(times/min) |
45 |
45 |
|
Packing sizel(cm) |
275*140*200 |
295*140*200 |
|
Voltage(v) |
361-399 |
361-399 |
|
Wire size(mm2) |
2.5 |
2.5 |
