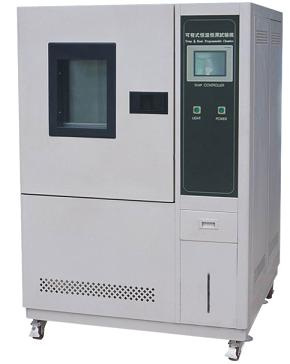

Product explanation:
This machine is manufactured and designed to meet the requirements of relevant standards, such as GB/T2951, UL1581, IEC540, IEC60598, etc. It is used to provide a constant temperature & humidity environment to perform a further test.
Features:
* Programable setting available.
* The refrigeration is come from Tecumseh (France).
* A big TEMI880 super induction LCD touch screen makes operation more convenient, and test graph can be shown by this screen.
* P. I. D count automatically makes it can correct temperature and humidity immediately.
* Controlled by a microcomputer, actions like temperature rising and humidity rising could be applied dividually.
* All stainless steel structure.
* The big window in the door makes your view more convenient.
* Four-tiered safety system for super-cooling conditions.
* RS-232 communication interface available, computer can be connected with this tester to display testing status, testing result, setting programs, operating this tester and more.
Technical parameter:
Inside dimensions(W*D*H) 50*50*60cm 50*60*75cm 60*80*85cm 100*80*100cm
Outside dimensions(W*D*H) 110*105*150cm 110*115*165cm 120*135*175cm 150*140*190cm
Inside capacity(Liter) 150 225 408 800
Material SUS#304 stainless steel
High temperature(centigrade degree) 100/150 100/150 100/150 100/150
Teating time(min) 30/40 30/40 30/40 30/40
Low temperature(centigrade degree) -70 -40 -20 0 -70 -40 -20 0 -70 -40 -20 0 -70 -40 -20 0
Cooling time(min) 90 60 35 25 90 60 35 25 85 65 40 20 90 70 40 2o
Humidity range 10%~98%RH
Temperature uniformity(centigrade degree) +-1 when -40 ~100; +-1.5 when < -40 or > 100.
Humidity uniformity(RH) +-3 +-3 +-3 +-3
Temperature stability(centigrade degree) +-0.3 +-0.3 +-0.3 +-0.3
Humidity stability (RH) +-2 +-2 +-2 +-2
Temperature resolution (centigrade degree) 0.01 0.01 0.01 0.01
Humidity resolution(RH) 0.1 0.1 0.1 0.1
Controller TEMI880 TEMI300 KR-K OYO
Cooling system Air cooling hermetic/semi-hermeic compressor
Heating system Balance temperature P. I. D. +P. W. M. +S. S. R.
Humidification system Balance humidity P. I. D. +P. W. M. +S. S. R.
Water supply Automatic water regulating+Recoverable supply system
Power source AC 220V/AC 380V
Floor space(W*D)cm 170*200 170*210 180*240 220*240
OPTION RS-232 interface(connect with computer available)
|
Technical parameter |
|
Inside dimensions(W*D*H) |
50*50*60cm |
50*60*75cm |
60*80*85cm |
100*80*100cm |
|
Outside dimensions(W*D*H) |
110*105*150cm |
110*115*165cm |
120*135*175cm |
150*140*190cm |
|
Inside capacity(Liter) |
150 |
225 |
408 |
800 |
|
Material |
SUS#304 stainless steel |
|
High temperature( centigrade degree ) |
100/150 |
100/150 |
100/150 |
100/150 |
|
Teating time(min) |
30/40 |
30/40 |
30/40 |
30/40 |
Low temperature
( centigrade degree ) |
-70, -40, -20.0 |
|
Cooling time(min) |
90, 60.35, 25 |
85, 65, 40, 20 |
90, 70, 40, 20 |
|
Humidity range |
10%~98%RH |
|
Temperature uniformity( centigrade degree ) |
+-1oC when -40 oC~100 oC; +-1.5oC when < -40 oC or > 100 oC. |
|
Humidity uniformity(RH) |
+-3 |
|
Temperature stability( centigrade degree ) |
+-0.3 |
|
Humidity stability (RH) |
+-2 |
Temperature resolution
( centigrade degree ) |
0.01 |
|
Humidity resolution(RH) |
0.1 |
|
Controller |
TEMI880 TEMI300 KR-K OYO |
|
Cooling system |
Air cooling hermetic/semi-hermeic compressor |
|
Heating system |
Balance temperature P. I. D. +P. W. M. +S. S. R. |
|
Humidification system |
Balance humidity P. I. D. +P. W. M. +S. S. R. |
|
Water supply |
Automatic water regulating+Recoverable supply system |
|
Power source |
AC 220V/AC 380V |
|
Floor space(W*D)cm |
170*200 |
170*210 |
180*240 |
220*240 |
|
OPTION |
RS-232 interface(connect with computer available) |
|
|
|
|
|
|
