DLDS-1214A
Electrical Installation Training System
Equipment overview

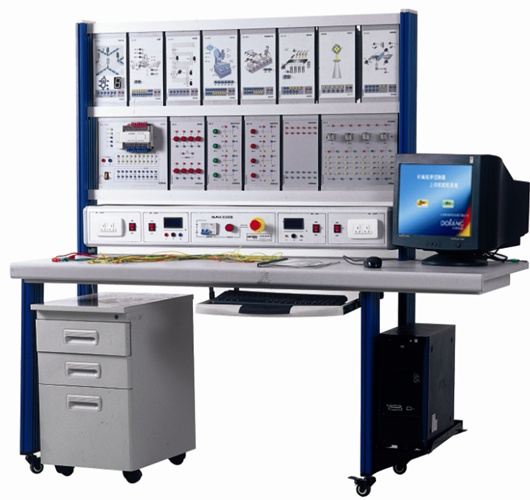

DLPLC-FXGD series programmable logic controller comprehensive training device, is a set of comprehensive teaching experiment and training system that integrated the PLC principle and application technology(Mitsubishi FX2N-32MR) configuration king software application technology. This experiment system adopts full open type modular structure, apply to all kinds of vocational colleges, secondary specialized schools and other training institutions, not only can be used as "the programmable logic controller technology ", "the programmable logic controller principle and application", "maintenance electrician", "the PLC application technology", the PLC principle and application", and other relevant materials supporting teaching experiment equipment, and can also be used for qualification examination, the graduation design, curriculum design, interest developing, etc.
II. Function overview
1. Module type structure. It is easy to organize kinds of training projects. That is mean PLC main machine, switch volume input and kinds of simulation experiments units are hanging box type, can combined according to experiment projects, network requirement, later if need to increase experiments, just need increase component, and never out.
2. The experiment hang box is color space diagram, image is clear, close to the actual application of the industrial site, through training o f the device, students can adapt to the scene work soon; Equipment use blue industry pillar profiles, and obtains the national patent; Desktop use high density board that wear-resistant, anti-skidding, 25 mm thick, prevent students peel and cross cut when using.
3. The system using the computer simulation modern information technology means, through the operation, the simulation, the emulation three training level, solves the problem that professional training theory and experiment, practice and the practical application disconnected.
4. Has ground protection, leakage protection, and emergency stop button protection measures.
5. Mating MCGS configuration king software, provide application guidance and application engineering examples.
6. It is easy to learn: supporting educational software, the electronic materials, material database software, project teaching guiding software, and industry simulation software series' upgrade.
7. Easy to teach: use project teaching method and combine with the teaching case. Supporting higher education press multi-media electronic textbooks, multi-media electronic lesson plan production platform and project teaching software, let the teacher's experiment teaching and theoretical teaching easier.
III. Technical parameter
1. Experiment table dimension:1800×800×1662mm(length×width×height).
2. Work power: input power: three phase five wire AC380V±10%,50Hz/60Hz.
Output power: three phase AC 380V±10% 50Hz/60 Hz;
Single phase AC 220V±10% 50Hz/60 Hz. Acquire has DC voltage stabilizer
3. Power control: automatic air switches hige power, have over-voltage protection, voltage protection, over current protection, leakage protection devices.
4. PLC: Mitsubishi FX2N-32MR, relay input/output method.
Training Projects
Experiment 1 Know GX DEVELOPER and PLC
Experiment 2 And, Or, Non-logical Processing
Experiment 3 Timers, Counters
Experiment 4 Jump, Branch Experiment
Experiment 5 Motor Control Simulation Training
Experiment 6 Sky Tower Light Simulation Training
Experiment 7 Traffic Light Test Simulation Training
Experiment 8 Mail Sorting Simulation Training
Experiment 9 Processing Center Simulation Training
Experiment 10Auto Milling Simulation Training
Experiment 11 Automatic Packaging Production Line Simulation Training
Experiment 12 Manipulator Simulation Training
