Product Specifications
| Prod Model: |
PCV-519 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Glass: |
Bk7, Fused Silica, Sf10, CaF2, Sapphire .etc. |
| Paraxial Focal Length Tolerance: |
+2%/-2% |
| Dimension Tolerance: |
0.2(General). 0.05(High Precision) |
| Centration: |
<3 Arc Min |
| Irr: |
1/4lambda(General), 1/10lambda(High Precision) |
| Clear Aperture: |
>80%(Small Size), >95%(Laege Size) |
| Surface Figure: |
<1.5lambda(General), <1/4lambda(High Precision) |
| Bevel: |
<0.25mm |
| Coating: |
Uncaoted, Ar, Pr, Hr, etc. |
| Customization: |
Yes |
| Material: |
Optical Glass |
| Shape: |
Single-lens |
| Type: |
Concave Lens |
Product Description

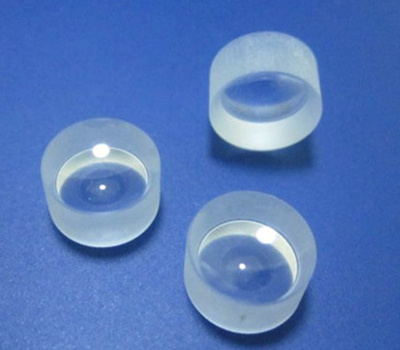

Projection Optical Systems Optical Plano-Concave Glass Lens
Features:
Diverges incident light, Reduce spherical aberation, High Precision Dimension Control, Optional Substrate Material.
Applications:
Beam expansion systems, Light projection systems, Optical Display Systems, Projection Optical Systems, Imaging Optical Systems, Laser Measurement Systems, etc.
Description:
Plano-Concave (PCV) or negative focal length lenses have a flat surface on one side and a spherical surface on the other. They are used to expand beams or to increase focal lengths in optical systems or other similar applications.
Plano - concave lenses are negative spherical lenses with one concave surface and one flat surface. These lenses can be used to expand light or to increase the focal length of an optical system.
Plano-concave lenses are available either uncoated or with single layer AR coating. Broadband multi-layer antireflection coating can be done on custom basis.
Simple shape lenses for spreading the collimated laser beam.
These are available for expanding the beam diameter or in combination with convex, expanding the irradiation area of illumination light.
Specifications:
Material: BK7, Fused Silica, SF10, CaF2, Sapphire. etc.
Paraxial Focal Length Tolerance: ± 2%
Dimension Tolerance: ± 0.2(General). ± 0.05(High Precision)
Centration: <3 arc min
IRR: λ /4@633nm(General), λ /10@633nm(High Precision)
Clear Aperture: >80%(Small Size), >95%(Laege Size)
Surface Figure<1.5λ @633nm(General), <λ /4@633nm(High Precision)
Surface Quality: 60/40(General), 10/5(High Precision)
Bevel: <0.25mm
Coating: Uncaoted, AR, PR, HR, etc.
|
Item# |
Φ(mm) |
f(mm) |
R(mm) |
Tc |
Te |
Fb |
|
PCV-001 |
6 |
-12 |
6.22 |
2 |
2.77 |
-13.31 |
|
PCV-002 |
6 |
-24 |
12.44 |
2 |
2.37 |
-25.31 |
|
PCV-101 |
12.7 |
-15 |
7.79 |
2 |
5.27 |
-16.35 |
|
PCV-102 |
12.7 |
-20 |
10.37 |
2 |
4.17 |
-21.32 |
|
PCV-103 |
12.7 |
-25 |
12.97 |
2 |
3.7 |
-26.33 |
|
PCV-104 |
12.7 |
-30 |
15.56 |
2 |
3.4 |
-31.31 |
|
PCV-105 |
12.7 |
-40 |
20.75 |
2 |
3 |
-41.32 |
|
PCV-106 |
12.7 |
-50 |
25.94 |
2 |
2.79 |
-51.33 |
|
PCV-107 |
12.7 |
-75 |
38.9 |
2 |
2.52 |
-76.31 |
|
PCV-108 |
12.7 |
-100 |
51.88 |
2 |
2.39 |
-101.33 |
|
PCV-201 |
25.4 |
-35 |
18.15 |
2 |
7.18 |
-36.32 |
|
PCV-202 |
25.4 |
-50 |
25.94 |
2 |
5.32 |
-51.33 |
|
PCV-203 |
25.4 |
-70 |
36.31 |
2 |
4.29 |
-71.32 |
|
PCV-204 |
25.4 |
-75 |
38.9 |
2 |
4.13 |
-76.31 |
|
PCV-205 |
25.4 |
-100 |
51.88 |
2 |
3.58 |
-101.33 |
|
PCV-206 |
25.4 |
-125 |
64.96 |
2 |
3.26 |
-126.36 |
|
PCV-207 |
25.4 |
-150 |
77.8 |
2 |
3.04 |
-151.3 |
|
PCV-208 |
25.4 |
-175 |
90.78 |
2 |
2.89 |
-176.32 |
|
PCV-209 |
25.4 |
-200 |
103.75 |
2 |
2.78 |
-201.33 |
|
PCV-210 |
25.4 |
-250 |
129.72 |
2 |
2.62 |
-251.39 |
|
PCV-211 |
25.4 |
-300 |
155.6 |
2 |
2.52 |
-301.29 |
|
PCV-212 |
25.4 |
-500 |
259.4 |
2 |
2.31 |
-501.39 |
|
PCV-213 |
25.4 |
-1000 |
518.7 |
2 |
2.16 |
-1001.28 |
|
PCV-301 |
30 |
-80 |
41.5 |
2 |
4.81 |
-81.32 |
|
PCV-302 |
30 |
-100 |
51.88 |
2 |
4.22 |
-101.33 |
|
PCV-303 |
30 |
-200 |
103.75 |
2 |
3.09 |
-201.33 |
|
PCV-401 |
38 |
-50 |
25.94 |
2 |
10.28 |
-51.33 |
|
PCV-402 |
38 |
-100 |
51.88 |
2 |
5.6 |
-101.33 |
|
PCV-403 |
38 |
-150 |
77.8 |
2 |
4.36 |
-151.3 |
|
PCV-404 |
38 |
-200 |
103.75 |
2 |
3.76 |
-201.33 |
|
PCV-405 |
38 |
-350 |
181.55 |
2 |
3 |
-351.31 |
|
PCV-406 |
38 |
-500 |
259.4 |
2 |
2.7 |
-501.39 |
|
PCV-407 |
38 |
-700 |
363.1 |
2 |
2.5 |
-701.31 |
|
PCV-408 |
40 |
-50 |
25.94 |
2 |
11.42 |
-51.33 |
|
PCV-501 |
50 |
-75 |
38.9 |
2 |
12.1 |
-76.97 |
|
PCV-502 |
50 |
-100 |
51.88 |
3 |
9.42 |
-101.99 |
|
PCV-503 |
50 |
-150 |
77.8 |
3 |
7.13 |
-151.96 |
|
PCV-504 |
50 |
-200 |
103.75 |
3 |
6.06 |
-201.99 |
|
PCV-505 |
50 |
-250 |
129.72 |
3 |
5.43 |
-252.05 |
|
PCV-506 |
50 |
-400 |
207 |
3 |
4.52 |
-401.03 |
|
PCV-507 |
50 |
-500 |
259.4 |
3 |
4.21 |
-502.05 |
|
PCV-508 |
50 |
-600 |
311.2 |
3 |
4.01 |
-601.91 |
|
PCV-509 |
50 |
-800 |
415 |
3 |
3.75 |
-802.02 |
