Product Specifications
| Prod Model: |
LMF22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
| Theory: |
Biological Sensor |
Product Description
Main features
1. Compact volume
2. High precision of repeated location
3. Diversified exterior structures
4. Good performance of anti-interference
5. Many output forms
6. High on-off frequency
7. Wide voltage range
8. Dust proof, vibration proof, water proof and oil proof
9. With short-circuit protection and inverted connecting protection
10. Long service life
Application
1. Various location detection of machinery process center
2. Arm location detection of robot
3. Inspection of the existing of milk inside the paper paxkage
4. Stopper detection of grinding machine
5. Bottle lid detection
6. Spacing detection
Switch type:
LM: Inductance type CM: Capacitance type SM: Hall type
AM: Safety explosion-proof type XM: HM: Reed type
Working voltage
30: 6-36V 310: 5-24VDC 320: 12-60VDC
20: 90-250VAC 210: 24-250VAC 220: 380VAC
40: 12-240VAC/24-240VAC 50: Special voltage
Detection distance: 01: 1mm 05: 5mm 10: 10mm
Output form
N: NPN Three-wire DC NPN output
P: PNP Three-wire DC PNP output
L: Two-wire DC output
W: AC Three-wire output
J: Relay contact output
NP: NPN+PNP NPN+PNP double output
Output state
A: Normally open(NO)
B: Normally close(NC)
C: Normally open + Normally close (NO+NC)
MU: Mimic voltage
MI: Mimic current
Subsidiary functions
T: With aviation connector
Y: Water proof, oil proof
H: High temp resistance.

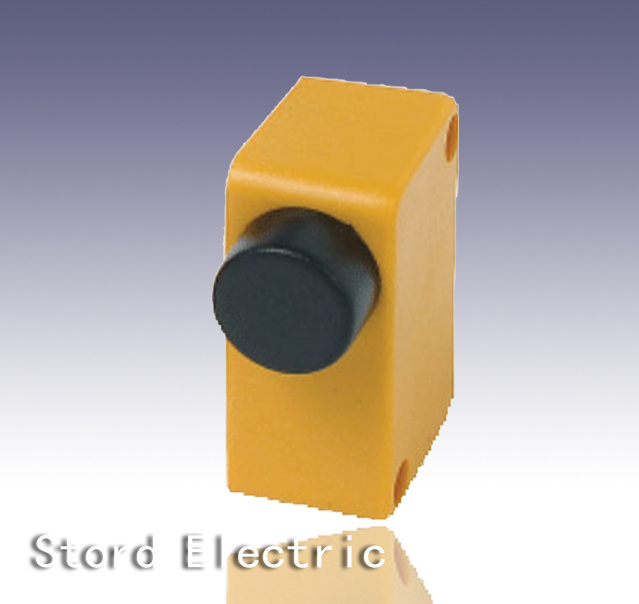

Proximity Sensor (LMF22)
|
INDUCTIVE PROXIMITY SWITCH |
|
Structural category |
Angular column type |
|
Outward appearance code |
LMF22 |
|
Appearance |
Bitmap
|
|
Dimension |
Bitmap
|
|
Flush |
Detection distance |
2mm |
|
|
NPN |
NO |
3002NA |
|
DC |
NC |
3002NB |
|
6 |
NO+NC |
3002NC |
|
-- |
PNP |
NO |
3002PA |
|
36 |
NC |
3002PB |
|
V |
NO+NC |
3002PC |
|
|
two wire system |
NO |
3002LA |
|
|
NC |
3002LB |
|
AC |
SRC Control label silicon |
NO |
2002A |
|
90 |
NC |
2002B |
|
--250 |
NO+NC |
|
|
V |
Relay output |
|
|
Non-flush |
Detection distance |
4mm |
|
|
NPN |
NO |
3004NA |
|
|
NC |
3004NB |
|
DC |
NO+NC |
|
|
6 |
PNP |
NO |
3004PA |
|
-- |
NC |
3004PB |
|
36 |
NO+NC |
|
|
V |
two wire system |
NO |
3004LA |
|
|
NC |
3004LB |
|
AC |
SRC Control label silicon |
NO |
|
|
90 |
NC |
|
|
--250 |
NO+NC |
|
|
V |
Relay output |
|
|
Control output |
DC |
200mA |
|
SCR/Relay |
300mA |
|
Output voltage dropDC/AC |
DC<3V , DC(Two wire system)<3.9V , AC<10V |
|
Consumption current |
DC < 15mA, AC < 10mA |
|
Standard detected object |
15×15×1(A3 iron) |
|
Repeated precision |
0.01 |
|
DC/AC Response frequency |
300Hz |
|
Working environment temperature |
–25C--70C |
|
Insulation resistance |
≥50MΩ |
|
Shell material |
ABS Resin |
|
Protection grade |
IEC standard IP67 |
|
