Product Specifications
| Prod Model: |
prx612m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Active |
| Size: |
1X12" |
| Power Rating: |
1000W |
| Frequency Respone: |
60Hz-17.5kHz |
| Coverage Pattern: |
90° X 50° Nominal |
| Finish: |
Duraflex Finish /Environmental Water-Based Pain |
| Hf: |
1X1.5" |
| Lf: |
1X12" |
| Sensitivity(1W/1m): |
96dB |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Application: |
Commercial |
| Certification: |
CE |
| THD: |
<0.005% |
| Speaker System: |
Professional Preformence |
| Speaker Material: |
Professional Preformence |
| Monitor: |
Professional Preformence |
Product Description

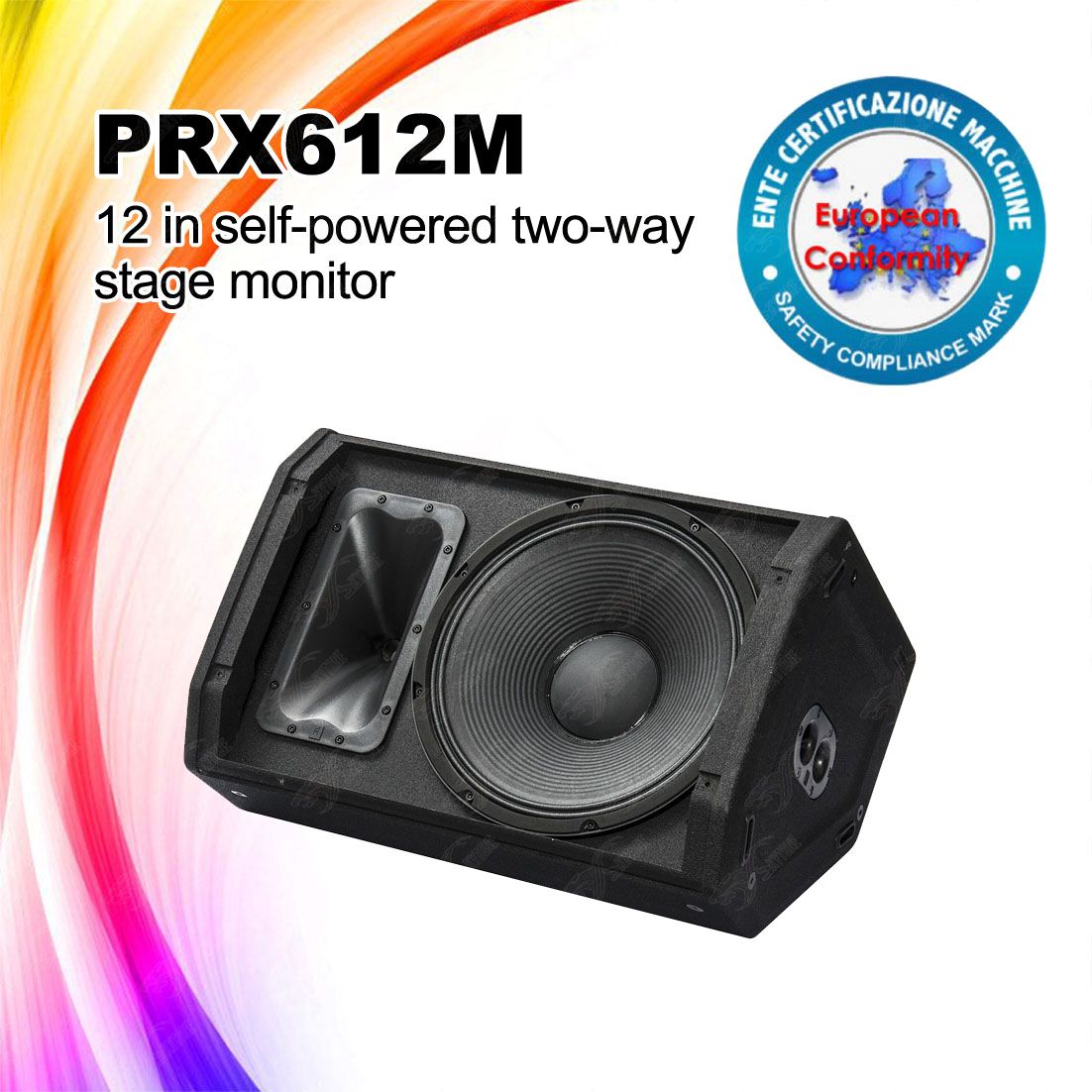

PRX612M style 12" two -way active professional high power speaker Pro audio
12" active pro speaker
Self-powered speaker
Single 12"
Professional speaker
12 in. Two-Way Multipurpose
Self-Powered Sound
Reinforcement System
Stage monitor
PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.
Features:
Maximum SPL 134db peak
Dual purpose enclosure for both front-of house and floor monitor applications
Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
Optimized EQ for monitor or front-of-house applications
305mm (12 in) woofer
37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
1000 Watt (Dual 500 watt) amplifier
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and 0.25" Mic/Instrument inputs, with loop through
Dual-angle pole mount socket
Model | PRX612M |
| System Type | Self-powered 12", two-way, bass-reflex |
| Maximum SPL Output | Full Range: 134 dB peak |
| Monitor: 133 dB peak |
| Frequency Range (-10 dB) | Full Range: 50 Hz - 19.5 kHz |
| Monitor: 51 Hz - 19.5 kHz |
| Frequency Response (±3 dB) | Full Range: 60 Hz - 17.5 kHz |
| Monitor: 61 Hz - 18.5 kHz |
| Coverage Pattern | 90º x 50º nominal |
| Power Rating | 1000 W ( 2 x 500 ) |
| Dimension (H x W x D): | 592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in ) |
| Net Weight | 15.6 kg ( 34.5 lb ) |
