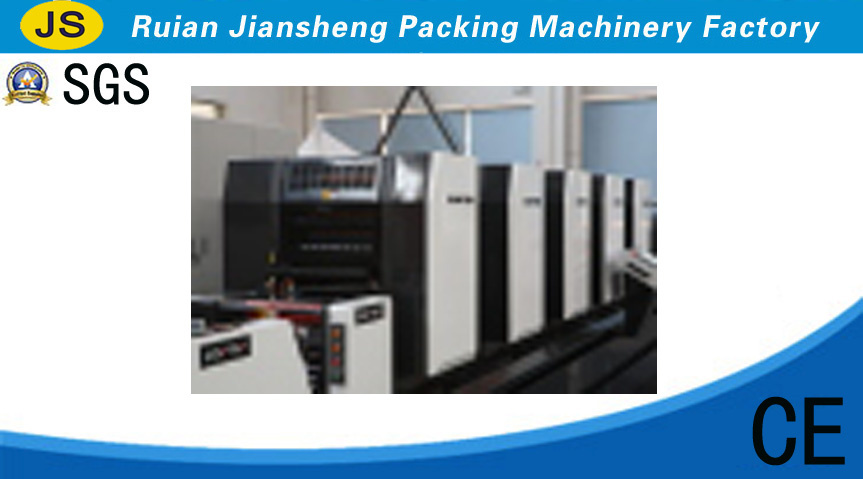

Product Description
1. Servo driven: Independent servo driven system in each unit to guarantee stable register at high printing speed.
2. Printing unit: Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and alcohol damping system to guarantee printing quarlity.
3. Pre-register system: Based upon the printing length, log data into the sliding control station, each unit will automatically be adjusted to its ready position.
4. Register system: Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press to save time and reduce the waste of substrate.
5. Vacuum backflow control unwind: Vac cum back flow cylinder should be able to prevent scratches on the back of P/S label during intermittent motion.
6. Joystickless: Fully automatic operation system including pressure adjustment, inking roll washup, roller impression, etc.
7. Easy to operate: Equipped with sliding touch screen control station which can be moving around to increase the efficiency of operator.
8. Printing size: Paterted technology to minimize printing size to achieve larger scale of variable size printing.
9. Control system: Apply electronic component from famous international brand to guarantee long term reliable operation.
10. Lubrication system: Centralized automatic lubrication.
|
Max. web width |
330mm |
|
Max. printing width |
320mm |
|
Printing repeat |
100~320mm |
|
Thickness of substrate |
0.1~0.3mm |
|
Machine speed |
30-200rpm(50M/min) |
|
Max. unwind diameter |
700mm |
|
Max. rewind diameter |
700mm |
|
Pneumatic requirement |
7kg/cm2 |
|
Total capacity |
30kw/6 colors without UV 30kw/6 colors (Not including UV) |
|
UV capacity |
4.8/kw/colors 4.8kw/color |
|
Power |
Three-phase 380v three phase 380V |
|
Overall dimension(L×W×H) |
9500×1700×1600mm |
|
Machine weight |
about 9/t/6 colors about 9 ton/6 colors |
Notes: With the viriation of the length to be printed, machine speed should be changed.
*Its overall dimension and manufacturing Process are subject to change without further notice. |
