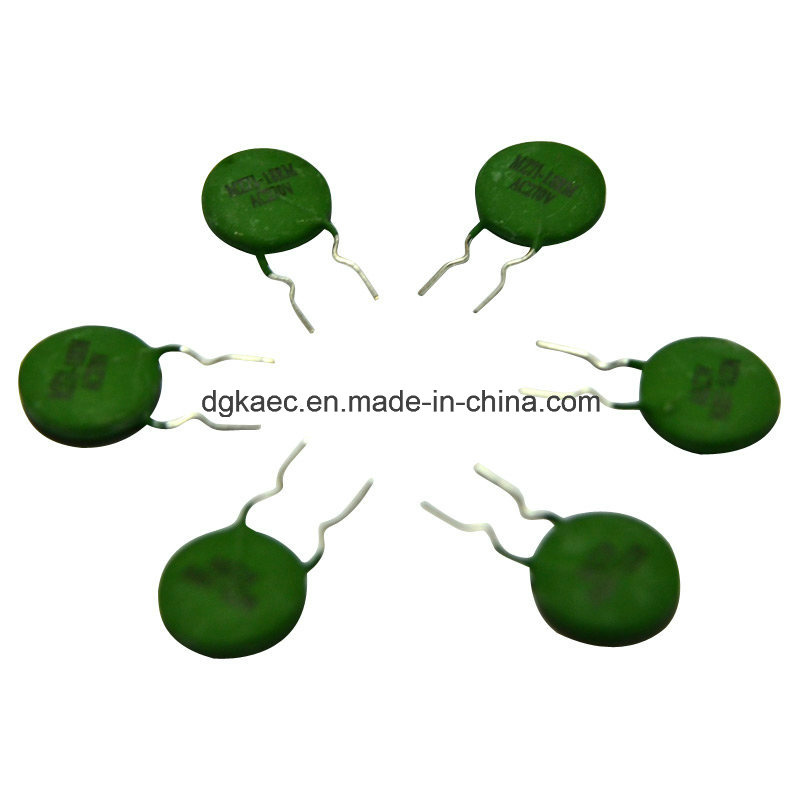

PTC Mz71-9RM 270V Overcurrent Protectors Degaussing Resistance

Name: PTC Mz71-9RM 270V Overcurrent Protectors Degaussing Resistance
Brand: china-manufacturer-directory.com
SKU: 764573705
Availability: InStock
Rating: 4.5 (149 reviews)

Supplier:	Dongguan Kaian Electronics Co., Ltd.
Price:	US $ 0.06-0.08/Piece
Min Order:	10000/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	MZ71 9RM 270V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PTC Overcurrent Protectors Degaussing Re:	Polymer PTC Thermistor
Resistance:	Sensitive Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Package Type:	Throught Hole
Type:	Thermal Resistor
Material:	PTC Overcurrent Protectors Degaussing Resistance M
Quantity:	PCS
Brand:	Kaec

Product Description

High quality degaussing PTC thermistor for overcurrent protection
1.over 12 years experience, Professional resistor manufacturer.
2. Good overload resistor.
3. RoHS & ISO9001&ISO14000
4. OEM.

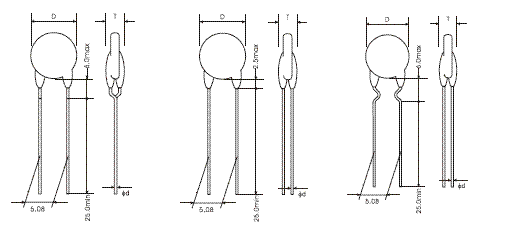

Dimensions

Code	Size
Dmax	Ø14mm
Tmax	5mm
F±0.5	10mm
Hmax	25mm
d±0.05	ø0.7mm

2.Making of Part Number

MZ	71	9R	M

:Positive Temperature Coefficient Resistance
:2pin fom encased
:Resistance :9R
:Resistance tolerance :±20%
       product marks :KAEC
                  MZ71-9RM
                     AC270
3,structure
    1.Packaging materials and colors
   phenolic resin                         black
    2.lead
Conductive metal surfaces tin

4. ELECTRICAL CHARACTERISTICS
No.	Item	Spec	Test conditions and methods
4-1.	Rated Zero Power Resistance (RN)	9R±20%	TA:25±2ºC Testing voltage:DC 2.0 Vmax After placing for 1~2 hours under TA, the resistance value shall be measured.
4-2.	Rated Voltage (VN)	AC 220Vrms	TA:-10~+60ºC
4-3.	Max. Operating Voltage (Vmax)	AC 270Vrms	TA:-10~+60ºC
4-4.	Min. Resistance of Degaussing Coil	≥7Ω
4-5.	I-T Decay Curve	Inrush current(I0) ≥20 Ap-p After 60 seconds Residual Current(I60) ≤8mArms	TA:25±2ºC Testing voltage:220VAC, 50~60Hz In static air.

No.		Item		Spec.		Test conditions and methods
4-6.		Voltage Withstanding		No damage. The resistance change ratio within ±30%		TA:25±2ºC Voltage:AC 270Vrms (50~60Hz) for 60 sec. AC 380Vrms for 120sec. Test Circuit:See Fig. 1.
4-7.		Recovery Characteristics		RN'≤2 RN		TA:25±2ºC(Still air) Voltage: AC220Vrms Test circuit:See fig.1. The resistance value RN' shall be measured after on 4 min. / off 6 min.
5.TECHNICAL CHERACTERISTICS
No.	Item		Spec.		Test conditions and methods
5-1.	Terminal Strength		No damage		Fasten the body and apply a force gradually to each lead until 20 N and then keep for 10sec. Hold the body and apply a force to each lead until 90°slowly at 10N in the direction of lead axis and then keep for 10sec, and do this in the opposite direction repeat for other terminal. (GB2423.29 U)
