| Supplier: | Wuxi Xiangjian PTFE Product Co., Ltd. |
|---|---|
| Price: | US $ 0.01-1000/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

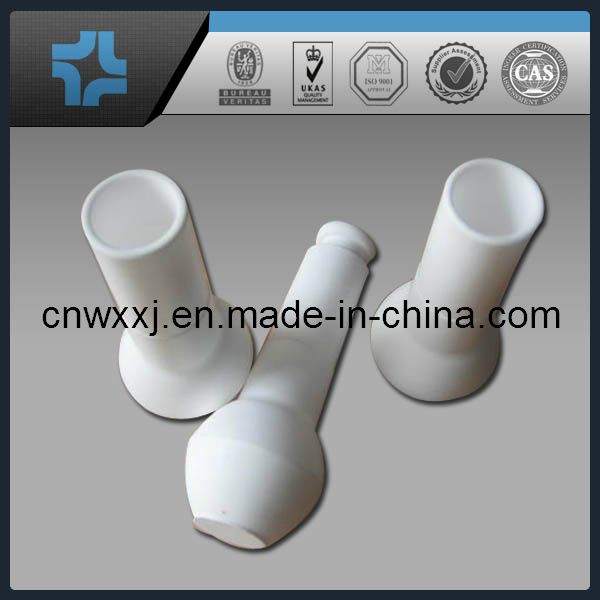

| Prod Model: | PTFE machining drawing part |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | PTFE Machining Drawing Part |
| Model Number: | PTFE Machining Drawing Part |
| Plastic Modling Type: | Mould |
| Color: | White,Colorful |
| Temperature: | -180 - + 260 Degree |
| Size: | as Order |
| Filling: | Graphite,Carbon, Bronze. |
| Density: | 2.1-2.3 G/Cubic Centimetre |
| Package: | Carton/Wooden Cases |
| Material: | PTFE |
|
Filled PTFE Products have strong corrosion resistance and friction-resistance,By addifiller such as glass fiber,carbon fiber,copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder,ceramic fiber,metal powder,polyamide,PS,the hardness,compression strength and abrasion resistance of the products is improved ,in addition,it will have good heat conductivity and low heat expansion coefficient. |
||||
| Glass Fiber: | Increases compressive strength, rigidity and wear. | |||
| Reduces creep and cold flow | ||||
| Minimal effect on chemical and electrical properties | ||||
| Carbon: | Increases compressive strength, hardness, wear, and load properties. | |||
| Good chemical resistance | ||||
| Various types and amounts of carbon can be added to alter conductivity | ||||
| Graphite: | Reduces coefficient of friction | |||
| Reduces initial wear | ||||
| Increases strength | ||||
| Molybdenum Disulfide: | Increases hardness, stiffness, and wear | |||
| Minimal effect on chemical and electrical properties | ||||
| Bronze: | Increases hardness and wear resistance | |||
| Increases dimensional stability and compressive strength | ||||
| Not suitable for corrosive or electrical applications | ||||
| Technical index | ||||
| Properties | Unit | Result | ||
| Apparent density | g/cm3 | 2.10-2.30 | ||
| Tensile strength (min) | MPa | 30 | ||
| Ultimate elongation (min)(min) | % | 300 | ||
| Product No. | Filled compound and content by weight | Tension strength MPa min | Ultimatestrength% min | Compresivestrength MPa min |
| 1 | 20% glass fiber | 10 | 120 | 16 |
| 2 | 25% glass fiber | 10 | 100 | 16 |
| 3 | 20% glass fiber graphile | 10 | 120 | 16 |
| 4 | 60% bronze | 10 | 80 | 20 |
| 5 | 15% carbon fiber | 11 | 130 | 16 |
| 6 | 24% bronze 12%glass fiber 6% graphite | 9 | 100 | 16 |
| 7 | 15%glass fiber 105polyikmide 5% graphite | 10 | 120 | 16.7 |
