Product Description
Bitmap
4D joystick for pan/tilt/zoom/focus control, ergonomic design and excellent finishing
High brightness keys
Auto backlight keys
Shortcut keys customization
Sleep function
Batch program cameras in the systems
Multi-level password protection
Multi-baud rate and protocols
256 address
Compact design with portable features
Introduction

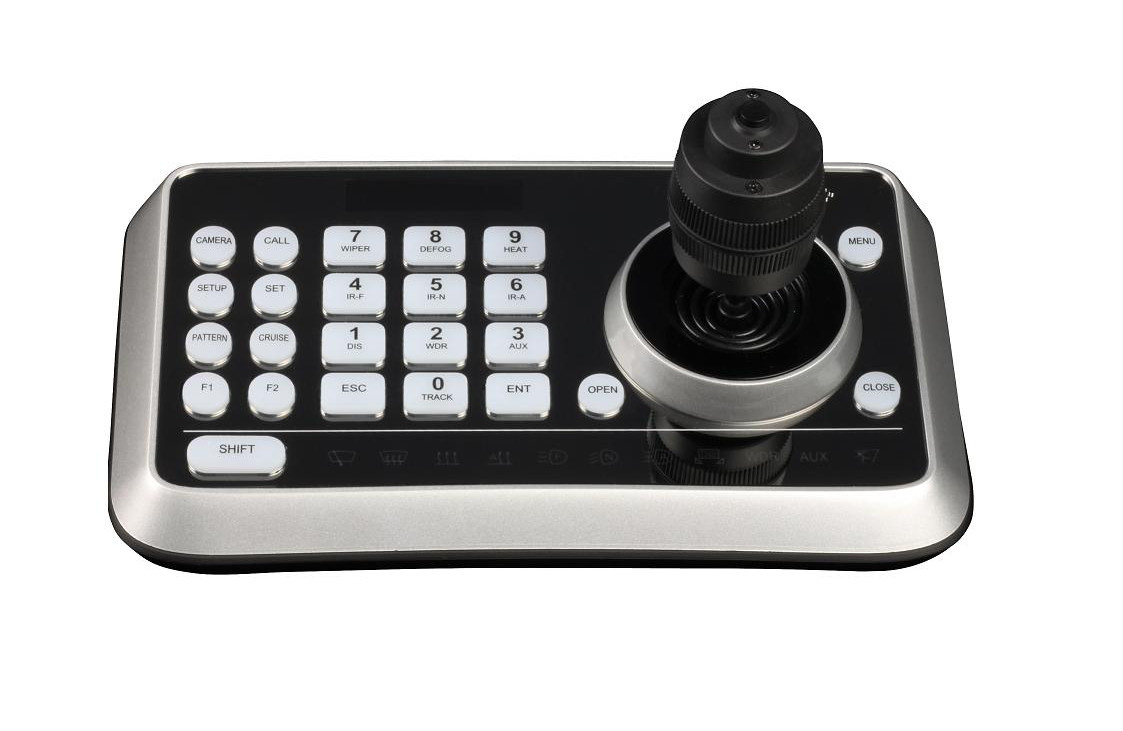

The mini keyboard controller is a full-function system keyboard, With features of ergonomic design, multi-function, high reliaility and easy operation, it is a perfect controller for vehicle speed PTZ cameras, video conference cameras, surveillance cameras and so on.
Specification
Model No. CKB02
Comm. InterfaceRS-485/RS232
ProtocolPelco-D, Pelco-P, VISCA
Baud Rate2400BPS, 4800BPS, 9600BPS, 19200BPS, 38400BPS
Address0 ~255
Joystick4-axis(Left/Right, Up/Down, Zoom in/Zoom out, Focus Near/Focus Far)
DisplayOLED
PowerDC12V
Power Consumptin<20W
Dimension160(D) X 206(H)mm
