Product Specifications
| Prod Model: |
PBS G03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Hardness: |
90 Shore a |
| Color: |
Optional |
| Channel: |
5 |
| Material: |
Polyurethane |
| Type: |
Cable Protector |

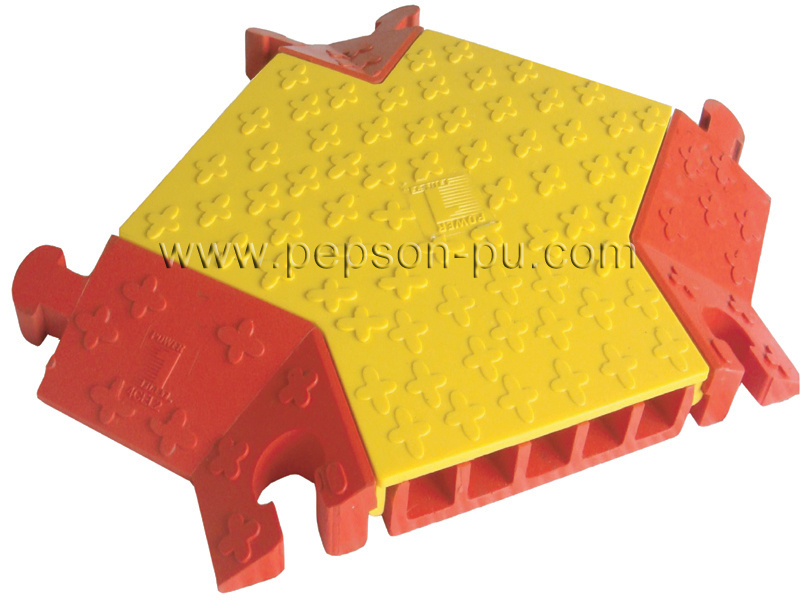

Product Description
Characteristics:
Polyurethane.
Excellent wear resistance, resilience and heavy load capacity.
Excellent flame retardant properties.
Electrical insulation properties.
Corrosion resistance (oil, chemicals, etc. )
Application:
Products are widely used in temporary buildings and sites based on (especially the stage, concerts, large-scale theatrical performances, product exhibitions, trade fairs, all kinds of celebration activities, etc. ) and structured cabling system, product assembly easy and flexible.
|

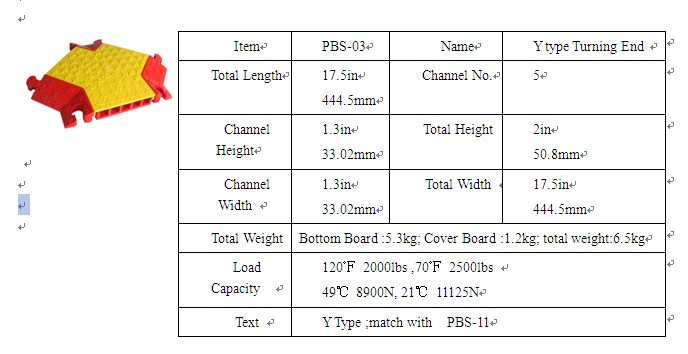

Item |
PBS-03 |
Name |
Y type Turning End |
|
Total Length |
17.5in
444.5mm |
Channel No. |
5 |
|
Channel Height |
1.3in
33.02mm |
Total Height |
2in
50.8mm |
|
Channel Width |
1.3in
33.02mm |
Total Width |
17.5in
444.5mm |
|
Total Weight |
Bottom Board :5.3kg; Cover Board :1.2kg; total weight:6.5kg |
|
Load Capacity |
120 degree fahrenheit 2000lbs ,70 degree fahrenheit 2500lbs
49 degree 8900N, 21 degree 11125N |
|
Text |
Y Type ;match with PBS-11 |
