PU on Cast Iron Core Wheels for Casters

Product Specifications

Prod Model:	EU250.50-B5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No:	EU250.50
Wheel Size:	250X50mm
Hardness:	93A
Hub Length:	60mm
Bearing Hole:	52X15mm
Axle Size:	25mm
Load Capacity:	1200kg
Wheel Material:	PU
Brake:	Without Brake
Bearing Type:	Ball Bearing
Type:	Single Wheel
Surface Treatment:	Painted
Brand:	Mingze
Maximum Load:	1200kg
Specification:	10inch
Thickness:	PU Thickness 10mm

Product Description

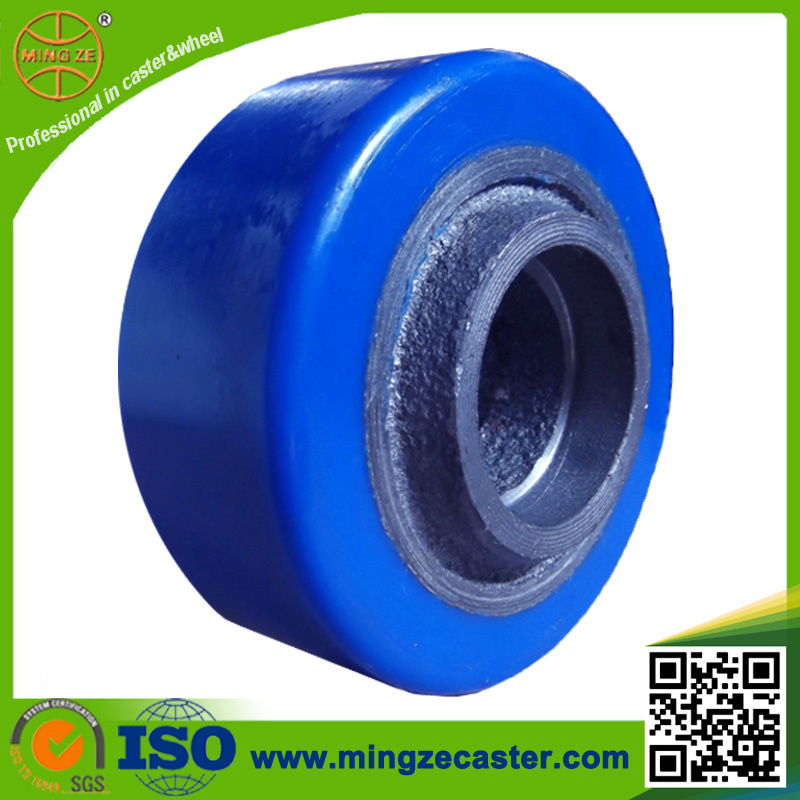

PU on cast iron core wheels for casters

1.Item No. : EU250.50-B5
2. Wheel material: Blue polyurethane on cast iron core wheel
3. Wheel size:250X50mm
4. Hardness: 93A
5.Bearing: 6205 ball bearing
6. Load capacity: 1200kg
Optional size with detail parameters as below:

ITEM NO.	Dia. (mm)	Width (mm)	hub length (mm)	hub size(mm)	Load Capacity(kg)	Bearing	bearing hole dia.
EU075.030-B1	75	30	40	32×10	200	Ball bearing	12
EU100.030-B1	100	30	40	32×10	250	Ball bearing	12
EU100.040-B1	100	40	50	32×10	350	Ball bearing	12
EU100.040-B4	100	40	50	47×14	300	Ball bearing	20
EU125.040-B4	125	40	50	47×14	400	Ball bearing	20
EU125.050-B4	150	50	60	47×14	400	Ball bearing	20
EU150.040-B4	150	40	50	47×14	500	Ball bearing	20
EU150.050-B4	150	50	60	47×14	800	Ball bearing	20
EU160.050-B4	160	50	60	47×14	850	Ball bearing	20
EU200.040-B4	200	40	50	47×14	500	Ball bearing	20
EU200.050-B4	200	50	60	47×14	1000	Ball bearing	20
EU200.080-B6	200	80	80	62×16	1400	Ball bearing	30
EU250.050-B5	250	50	60	52×15	1200	Ball bearing	25
EU250.080-B6	250	80	90	62×16	1800	Ball bearing	30
EU300.070-B7	300	70	72	72×17	2200	Ball bearing	35
EU300.100-B8	300	100	120	80×18	2800	Ball bearing	40
