Pulp and Juice Filler Machine for 500ml Pet Bottle
Product Specifications
| Prod Model: |
YLS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Yls |
| Capacity: |
2000-25000b/H |
| Bottle Size: |
Diameter: 50-100mm, Height: 150-320mm |
| Cap Shape: |
Plastic Cap |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Fully Automatic |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Dosing Device: |
Capacity Cup |
| Filling Principle: |
Negative Pressure |
| Packaging Container Lifting Structure: |
Chute Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
| Material Type: |
Liquid and Granular |
Product Description
Description:
Sphere of applied product: juice, tea beverage, functional beverage and so on.
Suitable for: PET bottles with all volumes and shapes
Filling system: hot filling
Production capacity: 12000BPH *500ml
This hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
Technical features:
Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

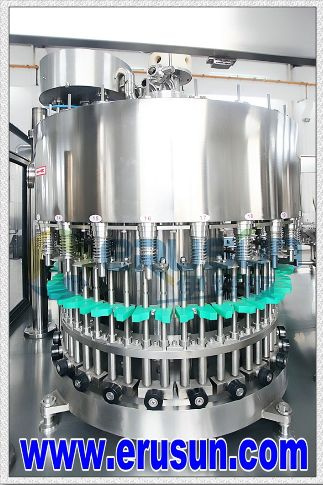

Sanitary filling head system is of umbrella structure, high filling speed.
Perfect filling temperature control system.
Return tank system has the function of supplying the material automatically.
Perfect CIP systemProduct Description
Summary

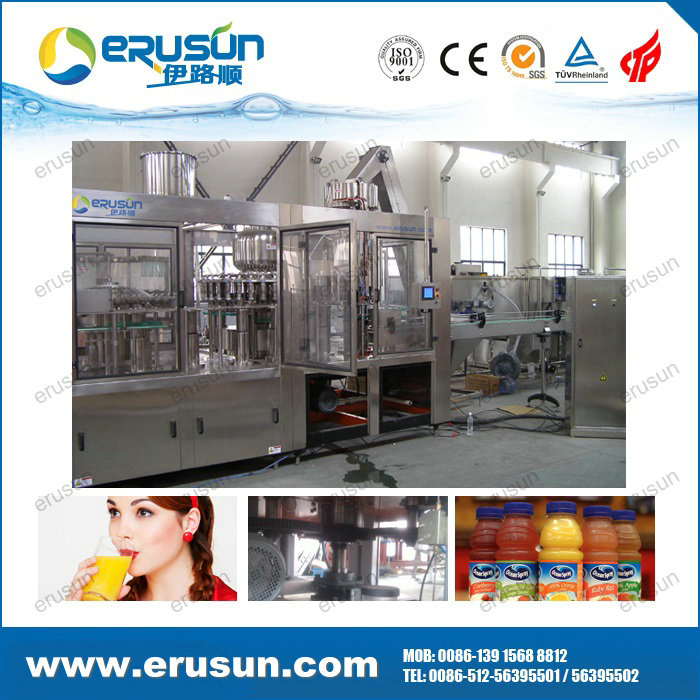

ERUSUN Pulp juice filling machine is a set of rinsing, pulp filling, juice filling and capping in one of the moderate (high) temperature filling machine, pulp, juice separately filling solve the problem of uneven content.
Host fully enclosed sealed windows, filling part 100 clean to ensure that the environment in the filling area to reach the desired temperature and filling requirements.
Bottle conveying adopts NECK HOLD, to reduce the adjustment and operation to the machine when changing bottle shape under the circumstance of keep the bottle mouth.
Host using reducer and coupling interaction transfer power to ensure the smooth operation.
| brand | ERUSUN |
| company | ZHANGJIAGANG ERUSUN MACHINERY CO.,LTD. |
| original | CHINA |
ZHANGJIAGANG ERUSUN MACHINERY Co., Ltd. is one of the leading providers of liquid packing solution, for drinking water, carbonated soft drinks, juice drink, tea drink, energy drink, milk drink, alcoholic beverages, beer, and edible oil, packed in plastic bottles, glass bottles, pop-top cans, cups, sachets, stand-up pouch and etc.
ERUSUN is in this business for over 10years, have installed our filling line in more than 30 countries and regions, such as Russia, Armenia, Ukraine, Uzbekistan, Kazakhstan, Kyrgyzstan, South Africa, Mexico, Peru, Singapore, Canada, Malaysia, Thailand, Indonesia, Vietnam, India, Pakistan, Iraq, Iran, Lebanon, Nigeria, Tanzania, Sudan, Kenya, and so on.
We offer flexible and reliable filling machines that are easily adaptable to market developments and future technology, supported by value-added services. We are committed to being an innovative, responsive and reliable partner, providing sustainable solutions for the beverage industry.
Cooperate with us to get a bright future together, Our Products, Your Industry!
