Zhangjiagang Erusun Machinery Co., Ltd. >> Pulp Juice Filling Monobloc Machine for 500ml Pet Bottle

Pulp Juice Filling Monobloc Machine for 500ml Pet Bottle

Name: Pulp Juice Filling Monobloc Machine for 500ml Pet Bottle
Brand: china-manufacturer-directory.com
SKU: 770473335
Availability: InStock
Rating: 4.6 (108 reviews)

Supplier:	Zhangjiagang Erusun Machinery Co., Ltd.
Price:	US $ 22000-77000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	RHFC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Model:	Yls
Capacity:	2000-10000b/H
Condition:	New
Suitable Bottle Size:	Diameter 50-100mm, Height 150-320mm
Type:	Volumetric Filling Machine
Automatic Grade:	Fully Automatic
Filling Valve Head:	Multi-Head
Feed Cylinder Structure:	Multi-Room Feeding
Dosing Device:	Capacity Cup
Filling Principle:	Negative Pressure
Packaging Container Lifting Structure:	Chute Lifting
Structure:	Rotary
Packaging Type:	Bottle
Packaging Material:	Plastic
Material Type:	Liquid and Granular

Product Description

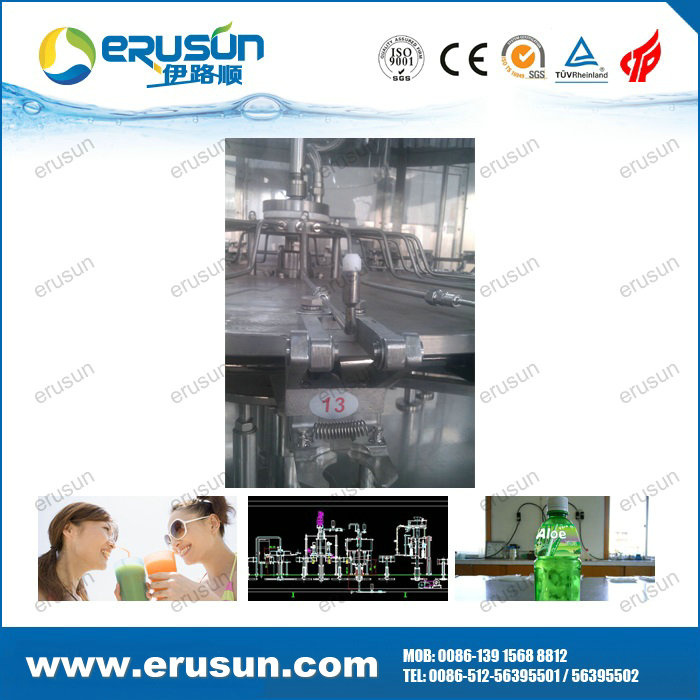

ERUSUN Pulp juice 4-in-1 filling machine is a set of rinsing, pulp filling, juice filling and capping in one of the moderate (high) temperature filling machine, pulp, juice separately filling solve the problem of uneven content.
Host fully enclosed sealed windows, filling part 100 clean to ensure that the environment in the filling area to reach the desired temperature and filling requirements.

Bottle conveying adopts NECK HOLD, to reduce the adjustment and operation to the machine when changing bottle shape under the circumstance of keep the bottle mouth.

Host using reducer and coupling interaction transfer power to ensure the smooth operation.

Good quality, cheap price, your first choice of reasonable filling machine for pulp juice !!!

Model	RHFC16/8/12/6P	RHFC18/12/18/6P	RHFC24/18/24/8P	RHFC32/18/32/10P
Rinsing Head	16	18	24	32
Pulp filling head	8	12	18	18
Juice Filling Head	12	18	24	32
Capping Head	6	6	8	10
Production capacity (500ml) (B/H)	3000BPH	5000BPH	8000BPH	11000BPH
PET bottle size (mm)	Bottle diameter φ50-φ100mm; Height 150-320mm
Rinsing water pressure (Mpa)	0.2-0.25
Rinsing water consumption (ton/h)	1t/hour	1.2t/hour	2t/hour	2t/hour
Air pressure (Mpa)	0.7
Air consumption (m3/min)	0.25m3/min	0.8m3/min	0.8m3/min	0.8m3/min
Motor power (KW)	3.5	4	6	8
Weight (KG)	5500	7500	11000	13000
Packing Size (LWH) (mm)	370023002600	430030002600	500036002600	600044002600

ZHANGJIAGANG ERUSUN MACHINERY Co., Ltd. is one of the leading providers of liquid packing solution, for drinking water, carbonated soft drinks, juice drink, tea drink, energy drink, milk drink, alcoholic beverages, beer, and edible oil, packed in plastic bottles, glass bottles, pop-top cans, cups, sachets, stand-up pouch and etc.

ERUSUN is in this business for over 10years, have installed our filling line in more than 30 countries and regions, such as Russia, Armenia, Ukraine, Uzbekistan, Kazakhstan, Kyrgyzstan, South Africa, Mexico, Peru, Singapore, Canada, Malaysia, Thailand, Indonesia, Vietnam, India, Pakistan, Iraq, Iran, Lebanon, Nigeria, Tanzania, Sudan, Kenya, and so on.

We offer flexible and reliable filling machines that are easily adaptable to market developments and future technology, supported by value-added services. We are committed to being an innovative, responsive and reliable partner, providing sustainable solutions for the beverage industry.

Cooperate with us to get a bright future together, Our Products, Your Industry!
