Pulse Jet Crusher Dust Collector/ Flat Bag Filter

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Dust Collector
Efficiency:	99.5%
Warranty:	1 Year
Control:	Electric-Pneumatic
Cleaning Type:	Clean-in-Place (Cip)
Minimum Particle Size:	Customized
Function:	Main Equipment
Usage:	General Equipment
Processing Methods:	Physics
Water Pollution Control Equipment Type:	Physical Treatment Equipment

Product Description


Company Information

Qingdao Antai Heavy Industry Machinery Co., LTD
Located in Jiaonan industrial park on the west coast of Qingdao, China
Founded in 2003, 10 years experience in shot blasting machine.
13 experienced engineers for considerations of every customer.
Over 108 high quality workers to ensure product's quality and quantity.
3D software for auxiliary design. Show every design details in front of you.
Engineers available to service machinery overseas.
CE, ISO 9001:2008 verified company.
Product Description

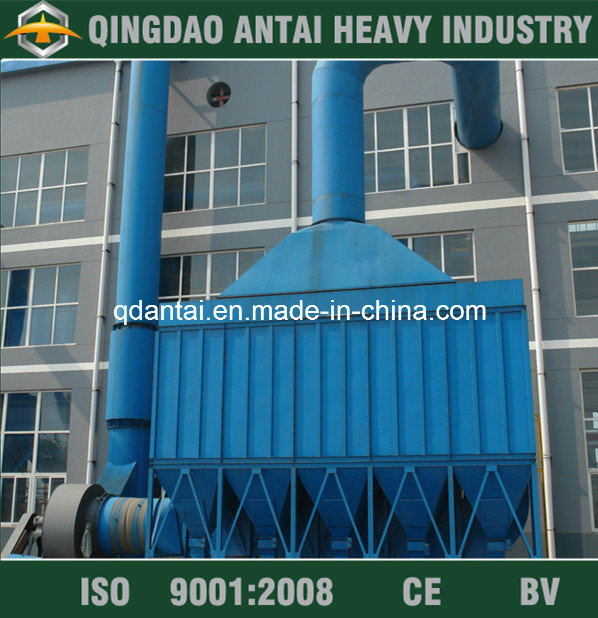

FD series flat bag filter  introduction
FD series flat bag filter is our company developed the dust collector for the high-end market. Its wide range of applications.Can be used in casting, tobacco, food processing, chemical and other different industry in the ash handing system. With the features of easy installation, long service life, high safely performance, ect. The flat  bag filter layer structure, has small volume, enery saving, high efficiency, easy maintenance, etc.

Working principle
  Dust through the upper gas inlet cover after air flow uniform distribution, from top to bottom through the precipitator, net by flat bag filter into the gas chamber . In this process, the filter bag dust and dust from forming on the surface layer, as thickening layers of dust on the filter bag, filter filtration resistance increase.  When the net gas chamber and the pressure difference to setting of the dust chamber, pulse control meter control pulse valve open, compressed air through the holes on the spray torch, for each column for blowing dust filter bag.  Soot cleaning process can be set according to request of soot, every once in a while, the adhesion of dust on the filter bag is preset program will be compressed air and the secondary drainage gas blowing falls and fell into a set of grey at the bottom of the filter device, again by ash conveying device away .

Features:
1. FD series Pulse Jet Dust Collector make continuous self-cleaning by the compressed air.
2. Adopted the Principle of Top Inlet, Middle Filter and Bottom Air-out, the resistance was down and the dust collection effect was enhanced.
3. High efficiency, low operation cost, and little floor space, easy maintenance.
4. There is the maintenance platform on the dust collector, the filters can be overhauled and replaced easily on the platform.


FD Compressed air baghouse dust collector
Technical Parameter:
Type	Bag Quantity	Filetering Area	Ventilation m3/h
FD601	72	108	6500~13000
FD610	108	162	9700~19500
FD602	144	216	13000~26000
FD611	180	270	16500~32500
FD620	216	324	19500~39000
FD612	252	378	22700~45400
FD621	288	432	26000~52000
FD630	324	486	30000~60000
FD622	360	540	33000~66000
FD631	396	594	36000~72000
FD640	432	648	39000~78000
FD632	468	702	43000~86000
FD641	504	756	45000~90000
FD650	540	810	49000~98000
FD642	576	864	52000~104000
FD651	612	918	55000~110000
FD660	648	972	58000~116000
FD652	684	1026	61000~122000
FD661	720	1080	65000~130000
FD670	756	1134	68000~136000
FD662	792	1188	71000~142000
FD671	828	1242	75000~150000
FD680	864	1296	78000~156000
FD672	900	1350	81000~162000
FD681	936	1404	84000~168000
FD690	972	1458	87500~175000
FD682	1008	1512	90000~180000
FD691	1044	1566	94000~188000


    Working theory of FD series dust collector is settlement flow and outer surface filtration. After filtration, the dust is blocked on outer surface of bags, and clean air will be exhausted to open air through ducting under blower working. The efficiency of this dust collector can reach 99.9%, and dust emission concentration is less than 50mg/m3.


The bag house: the production of bag house is strictly insure each joint position cannot leak air. If it leak air, the dust will come out from the leaking area. Therefore, the joint position of each part must use good sealing material. The thickness of steel plate used for welding the bag house is rigid enough to avoid deformation under working pressure.
Heat-resistant/ Corrosion resistant/ Flat bag/ Long life

 This dust collector uses compressed air from the air tank as energy to clean dust. It makes pulse airflow from bag top to bottom when the pulse valve starts. Its purpose is to shake off the dust on bag outer surface and fall down to bottom hopper. If the pressure or air volume is not sufficient, the airflow will be too weak to shake off the dust from top to bottom. The resistance force will be increased and lifetime of bags will be reduced. Otherwise, if the blow is too strong, the micro dust already absorbed by bags will be knocked out again, causing second time dust. And bags may be broken by strong friction with frame. Whatever the pressure is high, medium or low, the blowing strength and airflow is rationally designed according to process flow, dust and bag filter material.
