Hangzhou Songyang Electrical & Technology Co., Ltd. >> Pulse Output Diaphragm Gas Meter (PG1.6)

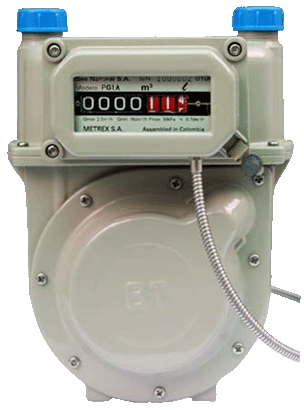

Pulse Output Diaphragm Gas Meter (PG1.6)

Name: Pulse Output Diaphragm Gas Meter (PG1.6)
Brand: China-Manufacturer-Directory.com
SKU: 672594931
Availability: InStock
Rating: 4.5 (98 reviews)

Supplier:	Hangzhou Songyang Electrical & Technology Co., Ltd.
Price:	US $ 15-18/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	PG1.6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Case:	Aluminum
Application:	Civil
Kind:	Diaphragm Gas Meter
Diameter:	<25mm
Starting Flow:	<0.5m³/h
Precision Grade:	0.01

Product Description

G type steel case gas meters are positive diaphragm meters, within the meter there are two chambers formed by movable diaphragms. With the gas flow directed by internal valves, the chambers alternately fill and expel gas, producing a near continuous flow through the meter. As the diaphragms expand and contract, levers connected to cranks convert the linear motion of the diaphragms into rotary motion of a crank shaft which serves as the primary flow element. This shaft then can drive an odometer-like counter mechanism.

High accuracy and long-term stability, compact design, low noise level, synthetic, stadium-shaped diaphram, stable error of flow rate, sensitive, safe, reliable, long life-time.

Comply with International Recommendtion OIML R31.

Media: Natural gas, manufacture gas,; PG, air, inert gases, etc.

ITEM		UNIT	MODEL
			PG1.6(S)	PG2.5(S)	PG4(S)	PG1.6(A)	PG2.5(A)	PG4(A)
Nominal flow-rate (Qn)		m 3 /h	1.6	2.5	4	1.6	2.5	4
Maximum flow-rate (Qmax)		m 3 /h	2.5	4	6	2.5	4	6
Minimum flow-rate (Qmin)		m 3 /h	0.016	0.025	0.040	0.016	0.025	0.040
Total pressure absorption		Pa	<160 ~ <200
Operation pressure range		kPa	0.5 ~ 50kPa			0.5 ~100kPa
Cyclic volume		dm 3	1.2
Permissible error	Qmin < Q <0.1Qmax	%	3
	0.1Qmax < Q < Qmax	%	1.5
Min. recording reading		dm 3	0.2
Max. recording reading		m 3	99999.999
Sensor style			Read relay or Hall element (DC3 ~ 12V)
Storage temperature		0 C	-20 ~ +50
Central distance		mm	130 or 100
Connection thread			M30 x 2, 3/4", 1"1/4 (or by customized)
Dimension		mm	H225xW195xD170 mm			H230xW200xD175 mm
Weight		kg	2.00			2.10
Outside casings			Quality steel sheet			Die cast aluminum alloy
Service life		years	10
Surface painting			Polyester powder plastics coating (gray)
Index cover			Printed index cover of polycarbonate or index cover of aluminum bezel with glass.

Hangzhou Songyang Electrial & Technology Co., Ltd. belongs to HongKong Songyang Industrial Ltd., As a member of SOngyang Group, there are 5 brother companies enter into few different categroies: Zhejiang Songyang Electric Appliance Co., Ltd. (STAM PRESSES, VACUUM CLEANERS), Zhejiang Soode Electronic Technology Co., Ltd. (GAS METERS), Haiyan Shendi Electronic Technology Co., Ltd. (ENERGY METER TEST BENCHES).

Our company major products are Single/Three-Phase KWH Meters, Single/Three-Phase Prepaid Meters, Single/Three-Phase Carrier Meters, Single/Three-Phase Double-tariff Meters, Single/Three-Phase Multifunction Meters, Centralized Meter Reading System and Management System, Lineate/Wireless Auto-measuring Electricity System, etc.

The company uses the most advanced electronic and microprocessor technology and the newest SMT technique to manufacture. It also has all kinds of complete and advanced measuring and testing equipments, strict and standard production technique, better performance and lower price.

We can also produce 1, 20 thousand series of electronic meters every year.
