Product Specifications
Prod Model: |
WFJ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Stainless Steel |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Type: |
Disc Grinding Machine |
Controlling Mode: |
Control Box |
Processing Object: |
Food ,Medicine .etc |
Product Description

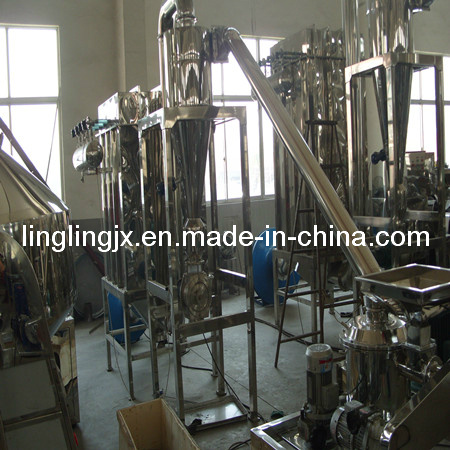

Micro pulverizer mill
Main Application
WFJ type micro crushing machine, is designed after introduce, absorb, digest foreign products' advantages, and combined with China's national conditions. The machine has technical performance stability, high yield, nice in appearance and widely used range etc. This machine has ideal effect for crushing dry non-fibrous material. Compared with domestic other type, it has the features like low produce temperature, uniform particle size, it's especially suitable for sugar, plastic powder, Chinese herbal medicine and shattered thermal sensitive material etc.
This unit has host, auxiliary engine, integrating pipeline and electric control device for a group, auxiliary engine has a whirlwind and bag dust extractions. The host are equipped with centrifugal grading device, except can finish crushing outside, still have classification function, sorting type centrifugal shear, no screen without nets, powder particles can be arbitrary regulation. Material smashs, using negative pressure transportation of discharging valve exports to achieve products requirements. This unit is an ideal machinery for pharmacy, food and chemical industries.
Components
1. Removable type whirlwind separator 2. Draught fan
3. Bag-type dust collector 4. Air blower 5. Fast disassembly pipe 6. Electric control cabinet 7. Classificator 8. Charging machine
Model |
WFJ-15 |
WFJ-20 |
WFJ-30 |
WFJ-60 |
WFJ-80 |
Capacity (kg) |
20~100 |
50~200 |
100~400 |
200~800 |
300~1000 |
Feed size (mm) |
<10 |
<10 |
<12 |
<12 |
<12 |
Output size (mesh) |
80-320 (adjustable) |
Motor power (kw) |
13.37 |
18.37 |
42.5 |
77.5 |
96 |
Spindle speed (rpm) |
5800 |
4200 |
3800 |
3200 |
2800 |
Weight (kg) |
850 |
1000 |
1300 |
2500 |
3000 |
Overall size(L*W*H)(mm) |
4200*1200*2700 |
4700*1250*2900 |
6640*1300*3960 |
7500*2300*4530 |
8500*2500*4600 |
