Pure Sine Wave Online UPS with Double Conversion 6000va/4800W 10000va/8000W

Name: Pure Sine Wave Online UPS with Double Conversion 6000va/4800W 10000va/8000W
Brand: china-manufacturer-directory.com
SKU: 763481035
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 1-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

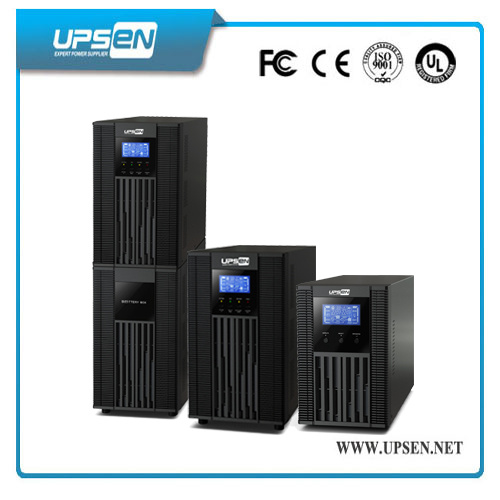

Pure sine wave online UPS with double conversion 6000VA/4800W 10000VA/8000W
Model:High Frequency Online UPS Green Star Series 6K-20Kva (1ph in / 1ph out) (3ph in / 1ph out)

Key Features

1:ECO mode operation for energy saving
2:DSP technology applied for 6-12K models
3:IGBT inverter and output isolation transformer
4:Wide range of AVR(Automatic voltage regulation)
5:advanced true double conversion On-line technology
6:Advanced no-master-slave parallel technology (optional)
7:Ultra-distinct interface information processing technology
8:Selectable output voltage, frequency parameter and bypass function on the display and available to work with generators

UPS Application
Home, Office, Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom, Bank system, ATM, Computers, Railway, Weak electricity system integration, security system, etc.

Technical Specification

GREEN STAR 6K/10K ONLINE UPS SPECIFICATION
MODEL		G6K (L)	G10K (L)
PHASE		1 phase in / 1 phase out
CAPACITY		6000 VA / 4800 W	10000 VA / 8000 W
INPUT
Nominal Voltage		208/220/230/240VAC
Voltage Range	Low Line Loss	110 VAC ± 3% at 50% Load 176 VAC ± 3% at 100% Load
	Low Line Comeback	120 VAC ± 3% at 50% Load 186 VAC ± 3% at 100% Load
	High Line Loss	300 VAC ± 3%
	High Line Comeback	290 VAC ± 3%
Frequency Range		46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Power Factor		>= 0.99 @ 100% load
OUTPUT
Nominal Voltage		208/220/230/240VAC
AC Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		<= 3 % THD (Linear Load) <= 6 % THD (Non-linear Load)
Transfer Time	Bypass to Inverter (Line mode)	Zero
	Inverter to Bypass (Line mode)	Zero
Waveform (Batt. Mode)		Pure Sinewave
EFFICIENCY
Line Mode		89%	90%
Battery Mode		88%	89%
BATTERY
Standard Model	Battery Type	12 V / 7 AH	12 V / 9 AH
	Numbers	16	16
	Typical Recharge Time	9 hours recover to 90% capacity
	Charging Current	Default:1.0 A ± 10%, Max.:2.0A ± 10%	Default:1.0 A ± 10%, Max.:2.0A ± 10%
	Float Charging Voltage	218.4 VDC ± 1%
Long-run Model	Battery Type	Depending on applications
	Numbers	16-20** (adjustable)
	Charging Current	Default:4.0 A ± 10%, Max.:6.0A ± 10%	Default:4.0 A ± 10%, Max.:6.0A ± 10%
	Float Charging Voltage	273 VDC ± 1% (based on 20 pcs batteries)
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Standard Model	Dimension, D X W X H (mm)	369 x 190 x 688	442 x 190 x 688
	Net Weight (kgs)	60	75
Long-run Model	Dimension, D X W X H (mm)	369 x 190 x 318	442 x 190 x 318
	Net Weight (kgs)	21	23
ENVIRONMENT
Operation Humidity		0-95 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 55dBA @ 1 Meter	Less than 58dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser

*Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC.
*If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated
one percent per 100m.
*Product specifications are subject to change without further notice

* Long-run model is only available in 200/208/220/230/240VAC systems.

Prod Model:	Green Star Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transfer Time:	Zero
AC Voltage Regulation:	± 1%
Advanced:	True Double Conversion on-Line
Wide Range:	Automatic Voltage Regulation
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Upsen
