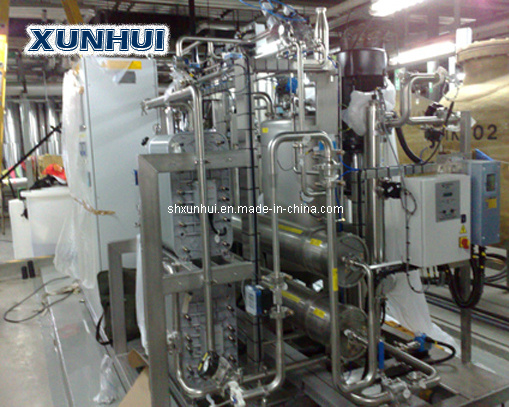

Purification Water Process Reverse Osmosis and EDI Water Treatment Technology
Product Specifications
| Prod Model: |
PURO-1000S-EDI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motive Force: |
Electric power |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection, Chemical Industry, Water Filtration System |
| Size: |
500 L/H |
Product Description
Shanghai Xunhui design and manufacture a complete line of fully customizable RO systems, which use the datest reverse osmosis technology, and are engineered to meet the highest water purification demands by removal of dissolved minerals, bacteria, virus, particles, and organic impurities.
1. Standard features
Energy saving design
TFC high rejection membrane elements
Heavy duty 5 micron sediment prefilter
Corrosion resistant SS high pressure pump
Automatic prefilter and softener
FRP / SS pressure vessel
Heavy duty high pressure tubing
Corrosion resistant high pressure throttling valve
Factory tested
TDS meter
Product water conductivity monitor
Operating pressure gauges
Low pressure switch
Product and reject flow meters
Electric inlet solenoid valve
Customized project planning
2. Operation parameter
Operating Pressure: 200-250 psig
Nominal Recovery: 6575%
Nominal Salt Rejection: 9899%
Max Operating Temperature: 45 Celscius degree
PH tolerance: 3-11
Minimum Inlet Pressure: 30 psig
Inlet Water Quality: Chlorine-Free/Softened
Control Circuit: 220 VAC, 1-phase, 50 Hz.
3. Options
On-line hardness monitor
PH / ORP meter
Atmospheric storage tank with level controller
Membrane clean-in-place systems
Ozonation system/UV sterilizers
Post DI polishers
|
4. Purified water application are but not limited to: |
|
Boiler feed |
Research and medical labs |
Semi conductor |
|
Spot-free rinse |
Process make-up water |
Photovoltaic |
|
Icemaking |
Humidification |
Pharmaceutical |
|
Greenhouses |
Ion exchange pre-treatment |
Dialysis |
Shanghai Xunhui Environment Technology Co., Ltd., is an engineering and industrial company specialized in the research, design, development and construction of high level water treatment system for biochemical, pharmaceutical, hemodialysis, hospital, laboratory and other industrial applications which need ultra pure water. As the subsidiary of Right Action (HK) Enterprise Holding Corp, Shanghai Xun Hui has earned a wide reputation in the industry.
We have our own manufacturing base and R&D center in the most economically vital city - Shanghai, China. Since its establishment, the company adheres to the philosophy of SERVICE, QUALITY, SPEED, SINCERITY. Our PureScience brand water purification systems are under operation in hundreds of clients' premises all over the world.
Our capabilities range from small water treatment equipment to millions of gallons per day water treatment plant.
Water treatment systems we provide:
Membrane systems: Reverse osmosis (RO system), nanofiltration, ultrafiltration, microfiltration
Filtration and pretreatment system: Multi-media filter, activated carbon filter, non-hydrous silicon dioxide filter, manganese greensand filter, cartridge filter,
Deionization system: EDI, separate bed deionizer, mixed bed deionizer, condensate polisher system, water softener
Parts and components: FRP tanks, pressure vessels, membrane elements, filter cartridge, control valves, etc.
Industries we serve:
*Biochemical *Pharmaceutical *Health/Hospital
*Hemodialysis *Food&beverage *Drinking
*Laboratory
On the management principle of "Satisfying the clients, creating the international brand", we devote ourself to provide our clients with professional water treatment solution and best service on most competitive price.
To be a Total solution provider for water purification is our eternal pursuit.
