Shenzhen Aopu Industrial Co., Ltd. >> Push Button with Mount Box-Ak-2rb

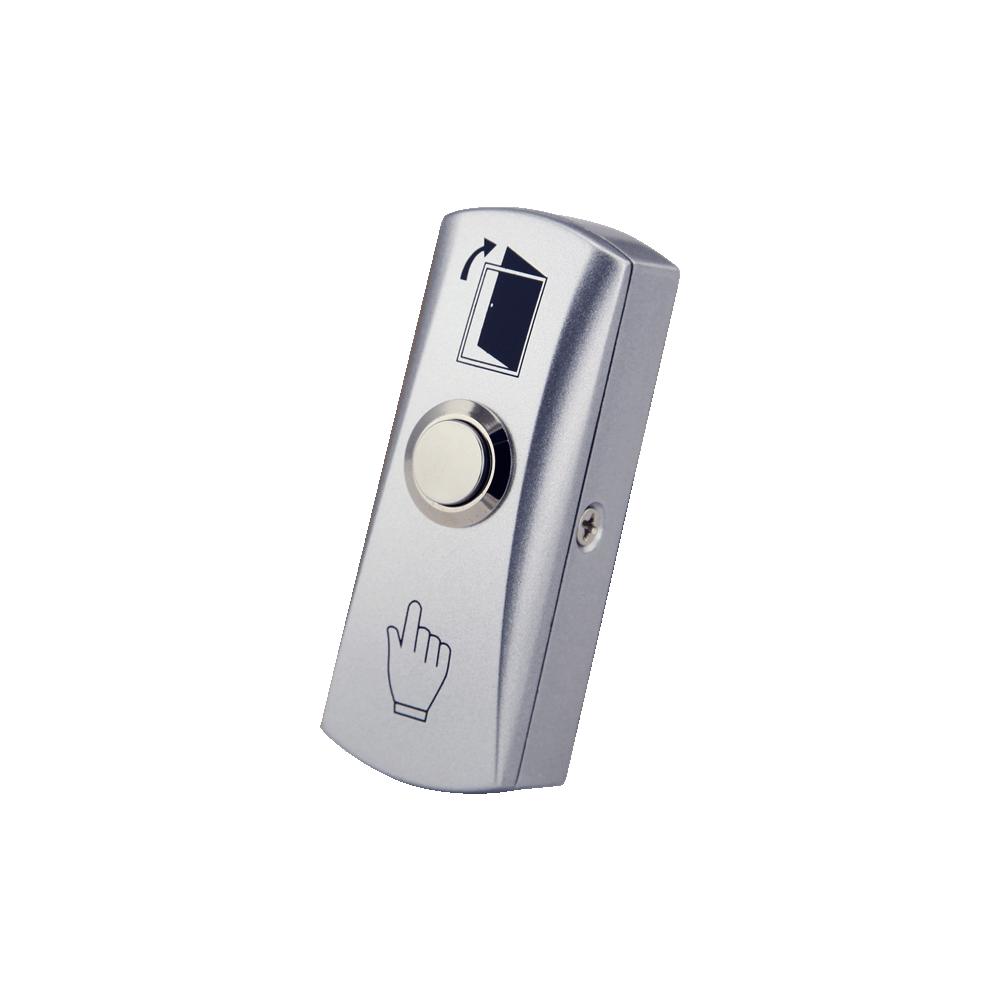

Push Button with Mount Box-Ak-2rb

Name: Push Button with Mount Box-Ak-2rb
Brand: China-Manufacturer-Directory.com
SKU: 686603002
Availability: InStock
Rating: 4.9 (100 reviews)

Supplier:	Shenzhen Aopu Industrial Co., Ltd.
Price:	US $ 4.2/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	AK-2RB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Control Button
Kind:	Double-pole on-off Switch
Type:	Composite

Product Description

Push button for narrow door frame

Product Parameter	Parameter Description
Dimensions	83Lx32Wx25H(mm)
Standard Structure	Alloy Plate, Steel Button
Current Rating	3A@36VDC Max
Output Contact	NO/COM
Mechanical Life	500000 tested
Suitable for Door	All Kind of the Narrow Door Frame
Operating temp	-20~+70
Operating Humidity	0-95% (relative humidity)
Panel Material	Alloy Plate, Sandblast Finished
Weight	0.086kg

AOPU specializes in providing professional multi door access control systems. AOPU products are geared to all needs, from the office buildings, housing estates to multiple-site high tech corporations, universities, banks, police stations and prisions etc. Our products include: RS485 network single-door access controller, RS485 network multi-door (2 doors and 4 doors) access controller; TCP/IP network single-door access controller, TCP/IP network multi-door (2 doors and 4 doors) access controller; Access control software; Access control and time attendance administration system; RS485/232 access control converter; RF IC and ID card reader etc.

Our goal is to provide right and quality products with most friendly software.

Future: We do think that muliti door access controler have a hugh future. And AOPU will also follow the times' progress and develop more products meeting customer demand.
