Product Description

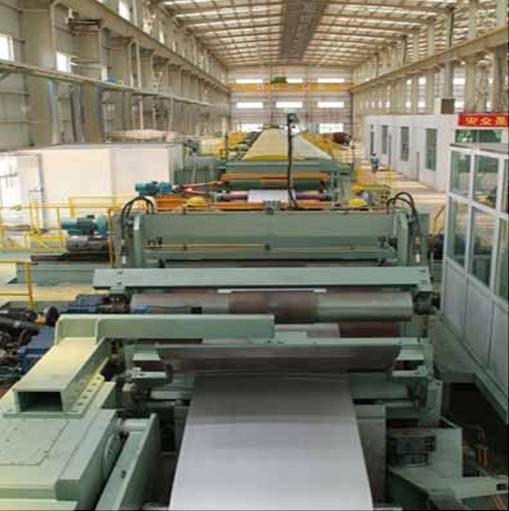

Push-pull Pickling is a semi-continuous production. Compared with the Continuous Pickling Line, it is characterized with less cost, less consumption of field, simpler device, higher effeciency, easier operation and fewer accidents. Moreover, it can acidwashing many kinds of incoming material. So it is very suitable for small and medium capacity. The line capacity we supplied is among 100, 000-600, 000 tons annually. The thickness range for strip steel is 1.5-6mm.
Technical Parameter
1. Process method: Push-pull shallow slot turbulence hydrochloric acid
2. Pickling medium: Hydrochloric acid(≥ 31%)
3. Pickling density: 8~18%
4. Pickling time: Minimum: 25-30s
5. Pickling temperature: 65~85ºC
6. Acid density: Max 200 g/L HCl 120g/LFe2
7. Driven way: Adopt Siemens AC frequency control system in main driving
Shanghai Shanyi Metallurgical Technology Co., Ltd. founded in 2009, is located in the Baoshan District of Shanghai, is specialized in metallurgy equipment, metal strip processing equipment, metal surface coating equipment and other projects of high-tech companies, the company has a number of with rich experience in the design and production of professional and technical personnel, is a machine - light - electric - hydraulic integration of high-tech enterprises. Companies can provide users with Planning - Design - Manufacture - Installation - Commissioning - Service-stop turnkey general contracting services, and can provide design services for factory production line. Company holds a strong technical research team, quality management personnel, sound management system, a strong ability to design and complete. In general contracting, complete sets of equipment supply, single, and spare parts supply, project management and other fields, the global steel industry is willing to provide integrated solutions.
