Yueqing Saibang Electric Co., Ltd. >> PV Grid-Connected Solar DC to AC Inverters (SP-3K)

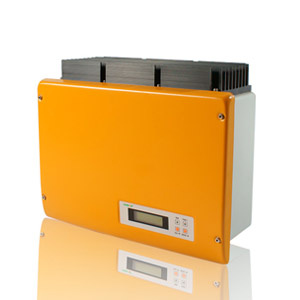

PV Grid-Connected Solar DC to AC Inverters (SP-3K)

Name: PV Grid-Connected Solar DC to AC Inverters (SP-3K)
Brand: china-manufacturer-directory.com
SKU: 676807605
Availability: InStock
Rating: 5 (128 reviews)

Supplier:	Yueqing Saibang Electric Co., Ltd.
Price:	US $ 500-528/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SP-3K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packing Unit:	PCS
Warranty:	2 Years
Phase:	Single
Power Source:	Solar Power
Output Power:	>1000W
Type:	Voltage Transformer

Product Description

PV Grid-Connected Solar DC to AC Inverters (SP-3K) 1. Material: aliminium crust, copper wire and plastic 2. Function: 12V or 24V to 220V？ Product Feature High reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology Pure sine wave output Small, light and artistic,benefited from adopting the SMD paster technology; Cooling fan is intellectual controlled and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise. Applicable for Solar electric energy generation; Wind power generation; Communication equipment; Industrial intellectual controlsystem; Small sized emergency power supply system Product Show About Us SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing？ electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC？ PRODUCT ？ Please kindly contact with us freely. High quality,reasonable price,best service is offered to you. ？ Saip as always inherits "high quality and sincere service". Saip - your successful cooperative partner!

Model	SP-3K
Inverter Rated Output Capacity	0.3KVA
PV Charge Current	10A
Rate Wind Turbine Power	300W
Rate Battery Voltage	12 V_DC
Battery Floating Charge Voltage	15 V_DC
Inverter Output Over-voltage Protection	17 V_DC
Inverter Output Over-voltage Recovery	16.5 V_DC
Battery Under Voltage Protection	10.5 V_DC
Battery Under Voltage Recovery	12 V_DC
No-load Current	0.6A
Output Wave	Pure Sine Wave
Display Mode	LCD
Display Parameters	Battery Voltage,Charge Current,State Parameter
Heat Mode	Fan
Rated Output Voltage	110/120/220/230/240 V_AC
Total Harmonic Distortion	≤4%
Output Frequency	50/60 Hz±0.05Hz
Overload ability	120% ,1minute 150% 10second
Inverter Efficiency	Maxmum90%
Noise Level(1m)	≤40dB
Isolate Level	1500V_AC,1minute
Protection Function	high battery, low battery, over load , short circuit, over temperature, pole-confusion protection for storage battery
Operation Ambient Temperature	-20~50°C
Operation Altitude	≤4000m
Operation Ambient Humidity	0~90%,no condensing
Size(W×H×D)mm	470×280×240
Weight(KG)	11
In order to give our customers better serve, we can adjusted configuration and parameters according to the customer's request
Optional Function Mains Switch If users chose the mains switch function,when the battery under voltage or inverter part malfunction .The controller willswitching to the mains automatically.So as to ensure the load working continuity and consistency.

Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
