Product Specifications
| Prod Model: |
QG27 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface: |
PVC Coated, PP Coated |
| Color: |
Green, Black, Dark Green |
| Surface Treatment: |
PVC Coated |
| Material: |
Low Carbon Steel Wire |
| Application: |
Protecting Mesh |
| Weave Method: |
Twist |
| Weave Technique: |
Twill Weave |
Product Description

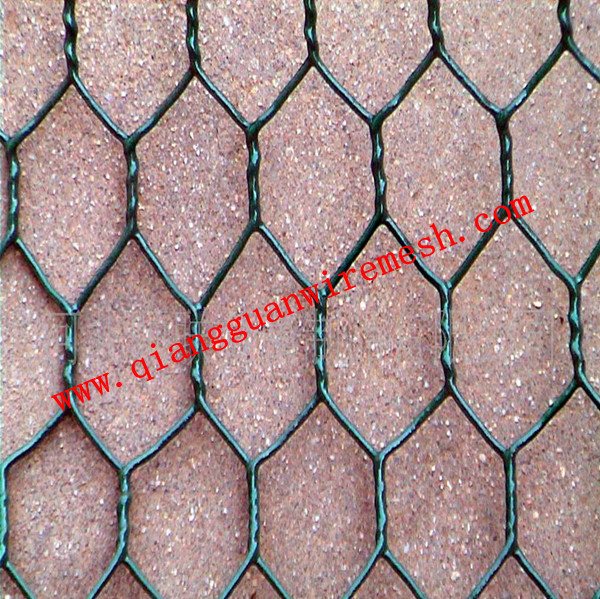

China Professional factory PVC Coated Chicken Wire Mesh /hexagonal wire netting
1. Wire materials: Hexagonal wire mesh is manufactured in galvanized iron or PVC coated wire.
2. Hexagonal wire mesh, also named chicken wire mesh, with its good corrosion resistance and oxidation resistance
3. Technology: Electro galvanized before weaving
Electro galvanized after weaving
Hot dipped galvanized after weaving
PVC coated before or after weaving
PP powder coating
4. Weaving Patterns: Straight twist, reverse twist, double twist.
5. Width: 0.5-2m, customer require available at request
6. Mesh size: 3/8" to 4"
7. Use: It is extensively used in industrial and agricultural constructions as reinforcement and fencing. It is also used as Fence for Poultry Cage, fishing and garden children playground, etc.
Ideal for
Industrial and agriculture construction as well as in building works to reinforce and fence.
Raising: Make cages and protect poultry in Poultry farms.
Protecting: Crops Fruit Vegetable seeding and newly sown grass or other seeds against bird damage.
A variety of uses around the yard, including: Poultry pens pet enclosures and protecting ponds and gardens from bird and cats.
8. Package: Water-proof paper inside and plastic outside or as require
Welcom to send any inquiry, it will be reply within 12 hours!
|
Galvanized Hexagonal Wire Mesh |
|
mesh |
Min. Gal.v.
G/SQ.M |
Width |
Wire Gauge (Diameter)
BWG |
Inch
|
mm |
Tolerance(mm) |
|
3/8" |
10mm |
±1.0 |
0.7mm - 145 |
2' - 1M |
27, 26, 25, 24, 23 |
|
1/2" |
13mm |
±1.5 |
0.7mm - 95 |
2' - 2M |
25, 24, 23, 22, 21 |
|
5/8" |
16mm |
±2.0 |
0.7mm - 70 |
2' - 2M |
27, 26, 25, 24, 23, 22 |
|
3/4" |
20mm |
±3.0 |
0.7mm - 55 |
2' - 2M |
25, 24, 23, 22, 21, 20, 19 |
|
1" |
25mm |
±3.0 |
0.9mm - 55 |
1' - 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
|
1-1/4" |
31mm |
±4.0 |
0.9mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
|
1-1/2" |
40mm |
±5.0 |
1.0mm - 45 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
|
2" |
50mm |
±6.0 |
1.2mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
|
2-1/2" |
65mm |
±7.0 |
1.0mm - 30 |
1' - 2M |
21, 20, 19, 18 |
|
3" |
75mm |
±8.0 |
1.4mm - 30 |
2' - 2M |
20, 19, 18, 17 |
|
4" |
100mm |
±8.0 |
1.6mm - 30 |
2' - 2M |
19, 18, 17, 16 |
|
PVC Coated Hexagonal Wire Mesh |
|
Mesh |
Wire Gauge (MM) |
Width |
|
Inch |
MM |
- |
- |
|
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
|
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
|
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
|
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
|
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
|
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
