Product Specifications
| Prod Model: |
HP-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Height X Length: |
3'x100' |
| Wire Diameter: |
1mm (after pvc),0.77mm (before pvc) |
| Mesh Size: |
1.5" |
| Lead Time: |
Within 10 Days |
| Surface: |
PVC coated wire weave |
| Surface Treatment: |
PVC Coated |
| Material: |
PVC Coated Steel Wire |
| Application: |
Protecting Mesh |
| Weave Method: |
Positive and Negative Twist |
| Weave Technique: |
Twill Weave |
Product Description

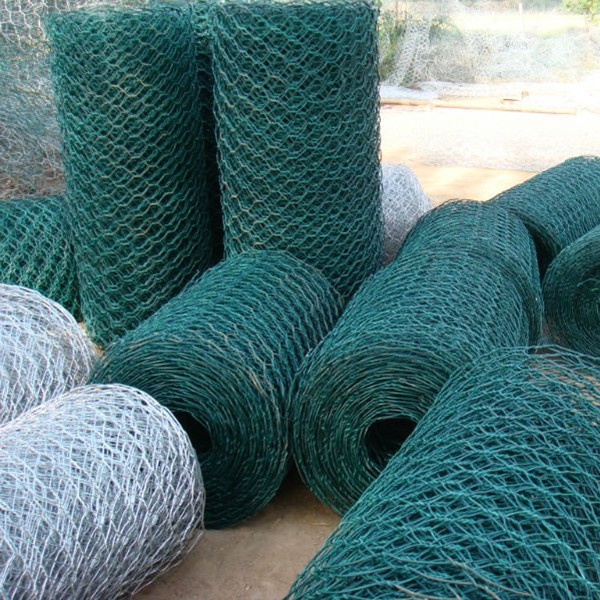

Hexagonal Wire Netting is also known as Chicken Netting, or Hexagonal Wire.
Material: It is made from low carbon steel wire, stainless steel wire
Weaving pattern: Straight twist, reverse twist, double-direction twist, Weaving before galvanized, weaving after galvanized.
Surface treatment: Electro galvanized, hot dipped, plastic-coated, stainless steel, PVC coated, etc.
Characteristics: The hard structure, flat surface, corrosion-resisting and oxidation-resisting.
Applications: Used for feeding Chicken, ducks, gooses, rabbits and the fence of zoo, machinery protection, speedway's fencing, stadium' purse net, the evanescence belt protection mesh on the road.
Mesh Size: 10mm, 13mm, 16mm, 20mm, 25mm, 31mm, 40mm, 50mm, 65mm, 75mm,
Popular specification:
Height x Length: 3' x 100'
Wire diameter:1mm (after pvc),0.77mm (before pvc)
Mesh size: 1.5"
Surface: PVC coated wire weave or Hot dipped galvanized wire weave
|
Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) |
|
Mesh |
Wire Gauge (BWG) |
|
Inch |
mm |
|
3/8" |
10mm |
27, 26, 25, 24, 23, 22, 21 |
|
1/2" |
13mm |
25, 24, 23, 22, 21, 20, |
|
5/8" |
16mm |
27, 26, 25, 24, 23, 22 |
|
3/4" |
20mm |
25, 24, 23, 22, 21, 20, 19 |
|
1" |
25mm |
25, 24, 23, 22, 21, 20, 19, 18 |
|
1-1/4" |
32mm |
22, 21, 20, 19, 18 |
|
1-1/2" |
40mm |
22, 21, 20, 19, 18, 17 |
|
2" |
50mm |
22, 21, 20, 19, 18, 17, 16, 15, 14 |
|
3" |
75mm |
21, 20, 19, 18, 17, 16, 15, 14 |
|
4" |
100mm |
17, 16, 15, 14 |
|
Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) |
|
Mesh |
Wire Gauge(BWG) |
Reinforcement |
|
Inch |
mm |
(BWG) |
Width(ft) |
Strand |
|
1" |
25mm |
22, 21, 20, 18 |
2' |
1 |
|
1-1/4" |
32mm |
22, 21, 20, 18 |
3' |
2 |
|
1-1/2" |
40mm |
20, 19, 18 |
4' |
3 |
|
2" |
50mm |
20, 19, 18 |
5' |
4 |
|
3" |
75mm |
20, 19, 18 |
6' |
5 |
|
Hex. wire netting PVC coated (width of 0.5M-2.0M) |
|
Mesh |
Wire Dia(mm)
|
|
Inch |
mm |
|
1/2" |
13mm |
0.9mm, 0.1mm |
|
1" |
25mm |
1.0mm, 1.2mm, 1.4mm |
|
1-1/2" |
40mm |
1.0mm, 1.2mm, 1.4mm, 1.6mm |
|
2" |
50mm |
1.0mm, 1.2mm, 1.4mm, 1.6mm |
