Product Specifications
Prod Model: |
SJSZ65/132 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Extruder Model: |
Conical Twin Screw Extruder Sj-65/132 |
Die Head Material: |
3cr17 Mould Steel |
Calibrating: |
6m Vacuum Calibrating Table |
Main Electrical Parts: |
ABB, Omron, Rkc, Schneider, FUJI, Delix etc. |
Dimension: |
24m*2m*2m |
Weight: |
9tons |
Delivery Time: |
50 Days |
Guaranteed Time: |
12 Months |
Quality Control: |
Customers Went to Our Factory to Check |
Product Type: |
PVC Profile |
Screw: |
Double-Screw |
Automation: |
Automatic |
Computerized: |
Computerized |
Certification: |
SGS |
Customized: |
Customized |
Product Description

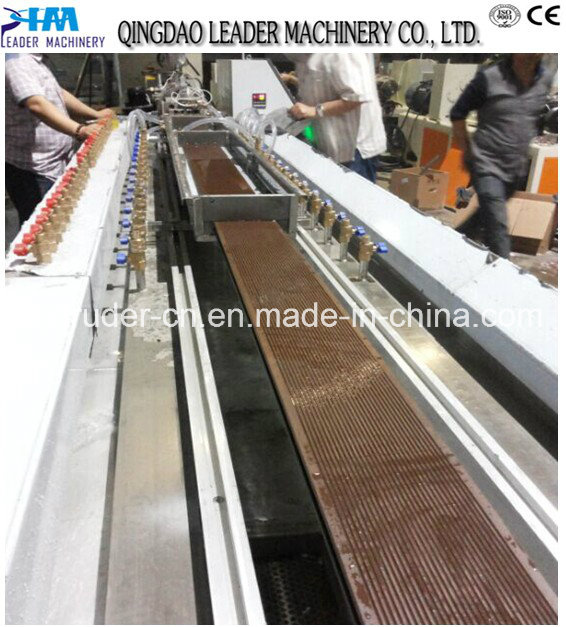

PE WPC Decking Panel Profile Extrusion Line
PART 1 INTRODUCTION:
The line uses raw plastic material or recycled plastics (PVC, PE, PP) and wood fiber (wood powder and other plant fiber such as rice bran, straw, etc. ) as the main raw material (the two accounted for more than 90%) the production of an industrial - wood plastic composites (WPC).
PART 2: The product has the following advantages:
1. Wood-plastic composite materials instead of full-wood products, protecting forest resources.
2. Wood-plastic composites can use the stalks of plants, reducing environmental pollution
3. Wood-plastic composite material to eliminate white pollution, cleaning up the natural environment
PART 3: This line consist of:
1. SJF-700 Spring feeding machine with capacity 1000kg/h max
2. SJSZ-65/132 Conical twin screw extruder main motor 37kw
3. Profile die head customzied
4. YF-300 Vaccum calibrating tank
5. Haul off and cutting machine
6. SFL-6000stacker
7. SWP-450 Plastic crusher
8. SMP-400 Plastic pulverizer
9. SRL-Z 200/500 High speed mixer
10. Polishing machine
11. Embossing machine
PART 4: Applications:
The production line of products can be used for the production of building templates, building blocks toys with plates, trays, boxes, pallets and other packaging equipment; The end of plank, sleepers and other storage supplies, outdoor flooring, railing, outdoor chairs, garden supplies; Outdoor flooring, sun rooms, signage, flow box, stadium chairs, and other load-bearing beam.
PART 5: Quality Guarantee and After Sale Service
1. Warranty for machinery: 18months for mechanical parts, 12 months for electrical parts.
During the guranteed time, damages because of machine itself, we will change new ones for you free.
Damaged made by human, we will also change new one for you based your extra cost.
2. Technical service and support will be forever.
3. Installtion and commissioning
The seller will dispatch four 1-2 engineers from the seller to the buyer's factory for installation and commissioning and training till the buyer's workers can operate the machines independently.
Main technical data of WPC extrusion line: |
Type of extruder | Conical twin-screw extruder |
Model | SJZ65/132 | SJZ80/156 | SJZ92/188 |
Driving motor power | 37KW | 55KW | 110KW |
Output | 120Kg/h | 210Kg/h | 330Kg/h |
Central height | 1000mm | 1000mm | 1050mm |
Qingdao Leader Machinery Co., Ltd., is a specialized supplier and manufacturer of plastic pipe, sheet and profile extrusion lines and other accessary machineries, such as plastics pelletizing recycling lines, mixers, crushers, etc. We have a good market all over the world, because the quality of our machineries and warm after-sale service is guaranted.
We have supplied machineries to Middle East(UAE, KSA, Jordan, Egypt, Yemen, Iran, Oman), Middle Asia(Kazakhstan, Uzbekistan, KYRGYZSTAN, TURKUMENSTAN), East Europe(Russia, Ukraine, Latvia, LITVA, Estonia, Albania, Romania), Africa(South Africa, Kenya, Tanzania, ZIMBABWEE, Botswana, Libya), South and Middle America(GUATEMALLA, Mexico) and so on.
Choose our machineries, and let's earn the world. Awaiting for your inquiry sincerely.
Our products was certified by ISO9001-2008, CE, and GOST.
