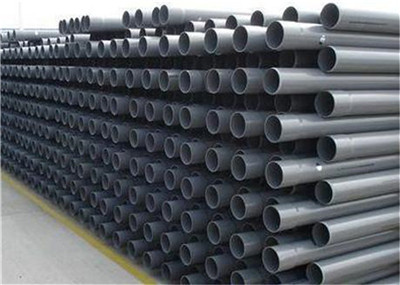

PVC Drainage Pipe/ Plastic Drainage Pipe

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Pressure:	0.63-2.5MPa
Joint End:	Plaint End, Socket End
Certification:	ISO/GB;
Size:	20-800mm;
Material:	PVC
Type:	Thermosetting Plastic Pipe
Usage:	Drainpipe
Shape:	Square
Hardness:	Hoses
Hollow:	Hollow
Color:	Color

Product Description

Hot Sale PVC Tubes UPVC Drainage Pipes
Specification:
1. Material: UPVC, PVC;
2. Size: 20-800mm;
3. Pressure: 0.63-2.5Mpa;
4. Color: Grey / white;
5. Joint end: Plaint end, socket end, spigot with sealing;
6. Media: Water;
7. Place of origin: Huangshan China;
8. Standard: DIN;
9. Certification: ISO/GB;
10. Advantage: Light weight, High strength, Low resistant, Corrosion resistance, Easy installation;
11. Vicat softening temperature ≥74; Dry oven test, no signs of bubbles or cracks;
12. Mechanical properties: Drop test, no cracks with all samples; Hydraulic test, no leak.

Features and Advantages
1. Healthy and lead-free;
2. No disagreeable odor;
3. Longevity;
4. Good abrasion resistance;
5. Unplasticised PVC formulation to improve the mechanical strength.
6. Easy to cut and joint;
7. Shock proof;


Size:

Nominal outside Diameter (mm)	Nominal Pressure
	0.63Mpa	0.8Mpa	1.0Mpa	1.25Mpa	1.6Mpa	2.0Mpa	2.5Mpa
	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)
20						2.0	2.3
25					2.0	2.3	2.8
32				2.0	2.4	2.9	3.6
40			2.0	2.4	3.0	3.7	4.5
50		2.0	2.4	3.0	3.7	4.6	5.6
63	2.0	2.5	3.0	3.8	4.7	5.8	7.1
75	2.3	2.9	3.6	4.5	5.6	6.9	8.4
90	2.8	3.5	4.3	5.4	6.7	8.2	10.1
110	2.7	3.4	4.2	5.3	6.6	8.1	10.0
125	3.1	3.9	4.8	6.0	7.4	9.2	11.4
140	3.5	4.3	5.4	6.7	8.3	10.3	12.7
160	4.0	4.9	6.2	7.7	9.5	11.8	14.6
180	4.4	5.5	6.9	8.6	10.7	13.3	16.4
200	4.9	6.2	7.7	9.6	11.9	14.7	18.2
225	5.5	6.9	8.6	10.8	13.4	16.6
250	6.2	7.7	9.6	11.9	14.8	18.4
280	6.9	8.6	10.7	13.4	16.6	20.6
315	7.7	9.7	12.1	15.0	18.7	23.2
355	8.7	10.9	13.6	16.9	21.1	26.1
400	9.8	12.3	15.3	19.1	23.7	29.4
450	11.0	13.8	17.2	21.5	26.7	33.1
500	12.3	15.3	19.1	23.9	29.7	36.8
560	13.7	17.2	21.4	26.7
630	15.4	19.3	24.1	30.0
710	17.4	21.8	27.2
800	19.6	24.5	30.6


We are a PROFESSIONAL MANUFACTURER of UPVC Pipe, Pipe fittings and valves up to DIN standard with ISO9001:2008 for more than 7 years.

Our company produces kinds of PVCU water pipe with different colors, like grey, white, blue, red, etc. specification as follows:

1.  Diameter 16, 20, 25, 32, 40, 50, 63, 75, 90, 110, 125, 140, 160, 180, 200, 218, 225, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710, 800mm pipes with various of pressures /thickness/length/, they are widely used for fire engineering, chemical plant piping engineering, papermaking plant engineering, brewing fermentation plant piping engineering, electroplating factory piping engineering, agricultural irrigation engineering, mining engineering, the breeding project, golf course project, fishery plastic raft in engineering, landscape engineering, etc
2.  93.2,260,360 UPVC Pipes and others (non-standard pipe).
3.  Various of molded fittings/Valves for 16-500mm UPVC pipe.
4.  Various pressures of manual fittings that acid and alkali-resistance for 63-800mm UPVC pipe.
5.  Various pressures of steel-plastic Bhave joint, socket flange, coupling, union, connector, elbow, Tee, cross pipe, valves. etc

We sincerely hope to establish long time cooperation relationship with you. waiting for your inquiry. It will be replied within 2 working days.
