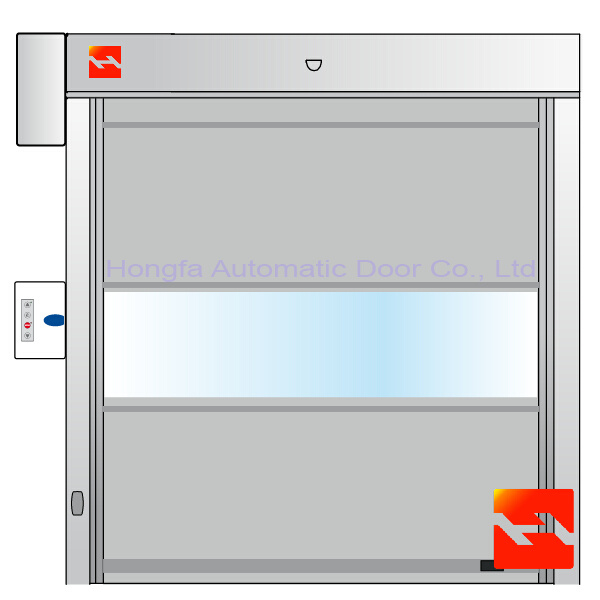

PVC Fast Rolling Door with Loop Detector (HF-1027)

Product Specifications

Prod Model:	HF-1027
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	as Your Request
Door Frame Material:	Stainless Steel or Aluminum Alloy
Door Curtain Thickness:	1.0/1.2/1.5mm
Curtain:	France High Density PVC Fabric
Transparent Window Thickness:	1.2/1.5mm
Opening Speed:	0.5-1.6m/S
Opening Frequence:	1000--1500 Tims/Day
Material:	Stainless Steel
Type:	Rolling
Open Style:	Rolling
Opening Type:	Induced
Certification:	CE
Position:	Industrial
Surface Finishing:	Finished
Special Function:	Sound+Temperature+Fir Proofing
Color:	Red/Blue/Yellow/Green/Gray/Ornage/Transparent

Product Description

PVC  Fast Rolling Door with Loop Detector (HF-1027)

Entry Internal Roller Shutter Garage Doors For Warehouse Workshop


Material Selection:
Frame
1. Power Coated Steel Frame
2. Aluminum Track
3. Stainelss Steel Frame: S. S 202 & S. S 304
Door Curtain 0.8mm~1.5mm Thickness
Color for Curtain Green, Red. Blue, Yellow, Orange, Grey, White, transparent, transparent yellow, transparent white
Motor Option
1. German SEW
2. China SEJ / SNMA
Control Panel Japan Mitsubishi Danmark Danfoss
Command System Radar Sensor, magnetic loop, Remote Control, Push button, Rope Swtich, ect
Safety Device
1. Photocell Sensor
2. Safety edge bottom (Pressure Sensor)
Delivery time: About 7business days
Packing Plywood case or Cardboard, suitable for sea freight or air freight, as your request.


We have many professional engineers with rich experience, qualified products, perfect service system, and good cooperation relationship with many famous companies.
We have the best solution for you, and we provide all the support you need to achieve optimum results, or value, or both, from whatever products you buy.
We provide 12 month warranty for all product and accessories. And custom made door size/color/material.

Technical Parameter for speed door	Max Size	6000mm(W)*6000mm(H)
	Opening Speed	1.0m/s
	Closing Speed	0.6m/s
	Wind load Max	28m/s
Mechanical Unit	Frame	201//304 Stainless Steel
	Inner Frame	Anti-wear Nylon Molded Inner frame
	Thickness of frame	2.0mm Stainless Steel
	Thickness of shaft cover	1.5mm 304 Stainless Steel
	Motor cover	Yes
	Frame Size	120mm*120mm
Control Unit	Control system	China HOLIP or Japan  Mitsubishi
		English Man-Machine Interface
		Self Trouble-Shooting Recognizing system
		Bigger LED Screen
	Control Box Size	320 X 400 X 210 mm
Driving System	Feature	Absolutely Encoder
	Driving Unit Brand	German SEW or China SEJ/SNMA  Motor
	Driving Unit Brand	Yaskawa Frequent Convert
Activation System	Open and Close the door	Radar
		Induction Loop
		Remote
		Card Sensor
		Pull Cord
		Push Button
		Touching Panel for Cleaning Room
		Central-Computer Controlling
Safety System	Safe Equipment	Beep
		Anti-wind Bar
		Traffic Light
		Wireless safety Edge
		Built-in Photo Cell
		Emergency Handle
		Shoulder Protection
Curtain Color	Blue, Orange,Yellow, Red, Grey, White,Green.
Viewing Window	Full transparent 1.0/1.2/1.5mm PVC window.
Power supply	AC 220V - 240V,Single- 3 Phrase, 50HZ
Anti-bar width	60mm or stronger anti-wind pipe
Temperature	-35to 65 Celsius degree
Normal Working	-35 to 65 Celsius degree
Standard Motor Position	Left or Right
Installation Base	Concrete,Panel, Brick,Steel Structure.
Installation Space	≥600mm above the door ≥600mm for motor side ≥200mm for non-motor side ≥800mm in front of the door
Using Area	For Production Line

F A Q:
1. What's the payment details?
Deposit before production, and balance before shipment.

2. What's the delivery time?
For common order, about 7 days only.

3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

5. What's the MOQ?
We accept 1 set as sample order.

6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
