Product Specifications
| Prod Model: |
0.2-2mm thick |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waste Material Recycling: |
Crusher, Miller, Winder, etc |
| Etrusion Line Contains: |
Extruder, Screen Exchanger, Three-Roller Ca |
| Width Of Product (Mm): |
700-2100 |
| Max Output(Kg/H): |
About 100-450 |
| Electrical Equipment: |
ABB/Hitach |
| Plastic Sheet Extrusion Line: |
Lgpc Series |
| Linear Velocity (M/Min): |
1-20 |
| Extruder: |
Sj75-Sj150 |
| Engagement System: |
Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Type: |
Sheet Extruder |
| Screw: |
Single-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
PVC |
| Feeding Mode: |
Multiple Feed |
| Product Type: |
Profile Extrusion Molding Machine |
| Assembly Structure: |
Integral Type Extruder |
| Exhaust: |
Exhaust |
Product Description
Plastic sheet extrusion line
Main applications:
1. Plastic sheet extrusion line can produce Plastic Single Layer, Multi-Layers Composite Sheet
2. Plastic sheet extrusion line can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.
3. Plastic sheet extrusion line is used for packing, printing, stationery, art works, etc. Main product: Gift/ad/file bag, lamp cover, food packing, etc.
4. Plastic sheet extrusion line: Thickness 0.2-2mm width 700-1500mm
5. Plastic sheet extrusion line contains: Extruder, Screen exchanger, Mould, Three-roller calender, Temperature controller, Cooling carrier frame, Haul-off, Cutter/Winder.
6. Optional device of Plastic sheet extrusion line: Hydraulic measuring pump, laminator.

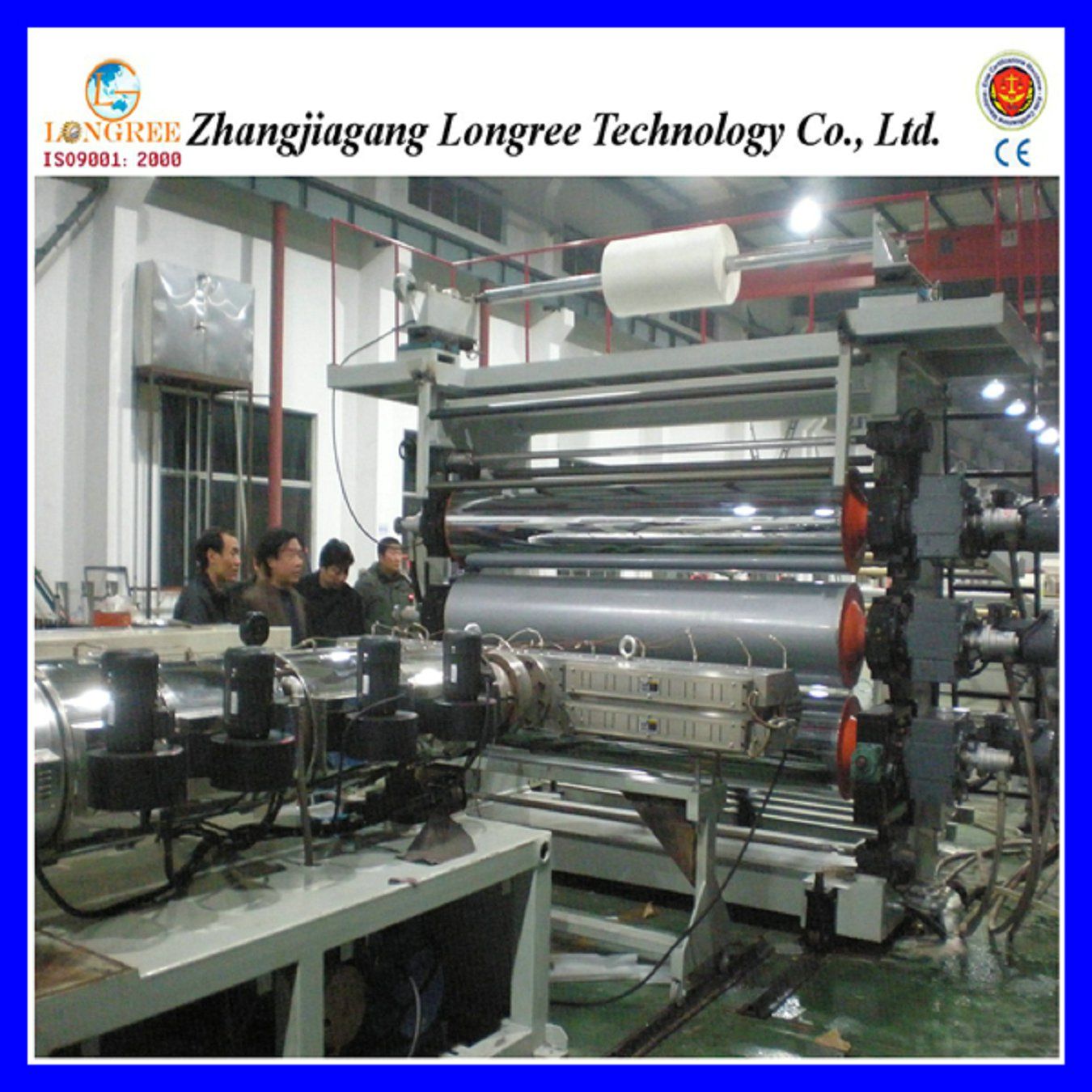

Picture for reference
Model | Extruder | Width of product (mm) | Linear velocity (m/min) | Max output(kg/h) |
| Three-roller calender |
|
|
|
| PET |
| LPF700A | SJ75 | 700-1500 | 1-6 | About 100 |
| LPF700B | SJ90 | 700-1500 | 2-12 | About 200 |
| LPF2100A | SJ120 | 700-2100 | 2-20 | About 300 |
| LPF2100B | SJ150 | 700-2100 | 2-20 | About 450 |
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
Welcome you to visit our Longree Group!
