Product Specifications
| Prod Model: |
SJSZ-65/132(YF-240) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
PVC Profile Machinery UPVC Profile Machinery |
| Applications: |
Windows and Door Profiles |
| Extruder Model: |
Conical Twin Screw Extruder 65/132 |
| Max Capacity: |
250kg/H |
| Line Speed: |
0.5-4m/Min |
| Water Consumption: |
7m3/H |
| Compressed Air Consumption: |
0.3m3/Min |
| Main Electrical Parts: |
ABB, Omoron, Delix, Schnider, Rkc etc |
| Guaranteed Time: |
12 Months |
| Machine Dimension: |
24m*2.2m*1.8m |
| Certification: |
ISO9001:2008 |
| Automation: |
Automatic |
| Product Type: |
PVC Profile |
| Computerized: |
Computerized |
| Screw: |
Double-Screw |
| Customized: |
Customized |
Product Description
pvc profile machinery pvc window door profile making machinery
PART 1 INTRODUCTION:
YF series PVC profile extrusion line is mainly used for extrusion of PVC window and door profile, wood-plastic profile, plintus, wall panel and ceiling panel, electrical conduit trunking channel, decorating profile ect.
The whole production line includes conical twin screw extruder, die head, vacuum calibrating table, haul off unit, cutting unit, film sticking device, and stacker. According to the different profile section and mould design, varied models of twin screw extruder and downstream equipments can be optional.
PART 2 Performance and advantages:
1. Conical Twin Screw Extruder:
adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.

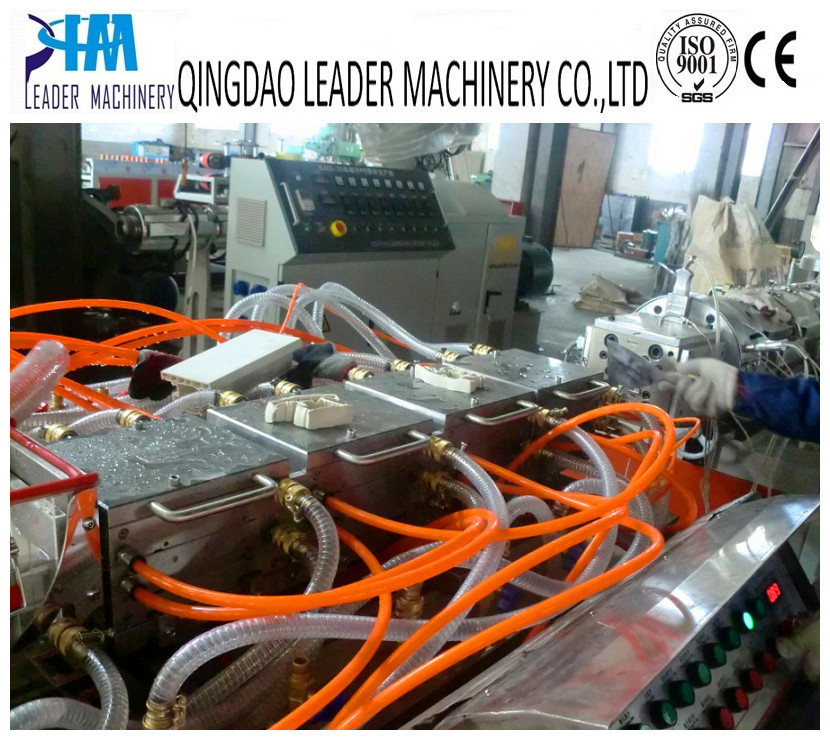

2. Profile Die head :
The die head material is 3Cr17, polished, chromed. It consists of: die head part, calibrating moulds and water cooling tank etc.
3. Vacuum calibrating table:
adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.

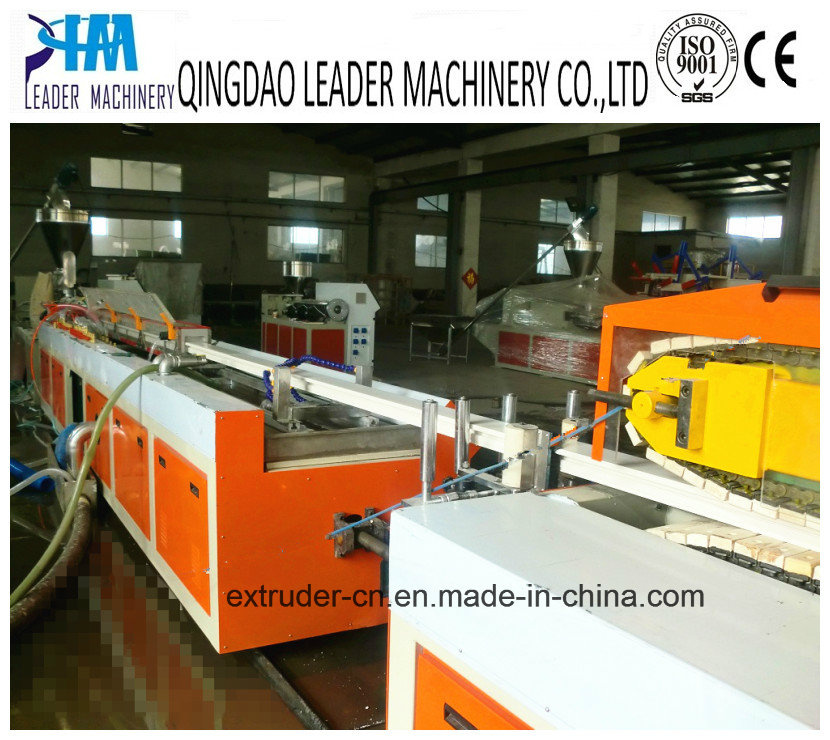

4. Haul off machine:
adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc, with frequency inverter adjusting the haul off speed.

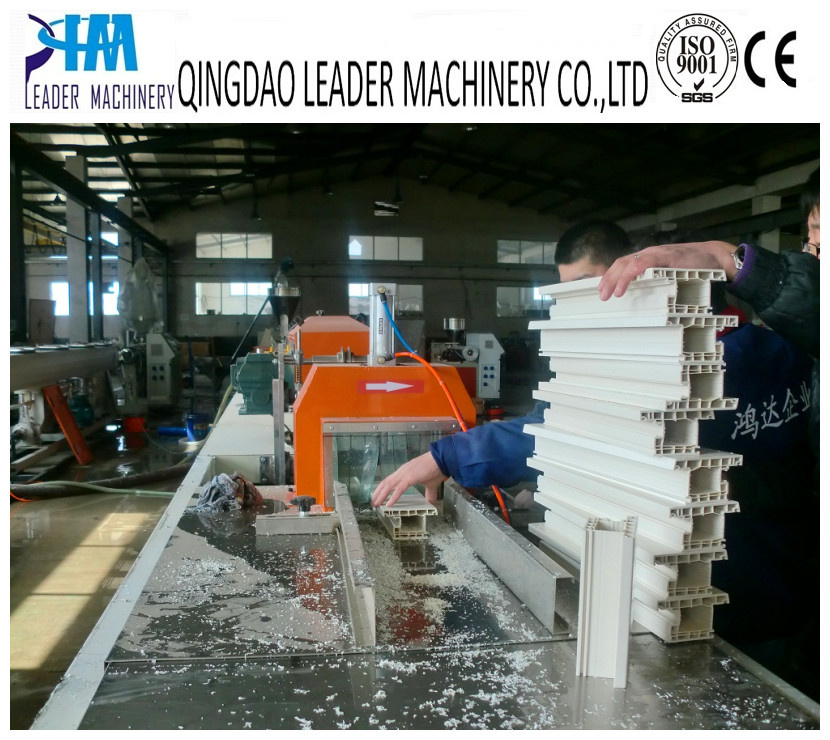

5.Cutting machine:
the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.PART 3 Other Items:
1. Garanteed time:18 months for the machenical parts and 12 months for the electrical parts
2.After sale service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
3. Transporation:2 sets of 40GP containers
4. Payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
5.delivery time: 50 days after receiving the deposit
PART 4 TESTING PICTURES
|
Item |
Description |
Data |
|
1 |
SJSZ-65/132(YF-240) PVC window door profile extrusion line |
1 line |
|
1.1 |
ZJF-700 spring feeding machine |
1 set |
|
1.2 |
SJ-65/132 conical twin screw extruder machine |
1 set |
|
1.3 |
Profile die head/mould |
1 set |
|
1.4 |
ZDM-240 vacuum calibrating table |
1 set |
|
1.5 |
SQY-240 hauling off machine |
1 set |
|
1.6 |
SQG-240 plastic saw cutting machine |
1 set |
|
1.7 |
SFL-6000 stacker |
1 set |
|
2 |
SRL-Z 200/500 High speed hot and cold mixer |
1 set |
|
3 |
SWP-450 Plastic crusher |
1 set |
|
4 |
SMP-400 Plastic pulverizer |
1 set |
|
5 |
Film laminating machine |
1 set |
Qingdao Leader Machinery Co., Ltd., is a specialized supplier and manufacturer of plastic pipe, sheet and profile extrusion lines and other accessary machineries, such as plastics pelletizing recycling lines, mixers, crushers, etc. We have a good market all over the world, because the quality of our machineries and warm after-sale service is guaranted.
We have supplied machineries to Middle East(UAE, KSA, Jordan, Egypt, Yemen, Iran, Oman), Middle Asia(Kazakhstan, Uzbekistan, KYRGYZSTAN, TURKUMENSTAN), East Europe(Russia, Ukraine, Latvia, LITVA, Estonia, Albania, Romania), Africa(South Africa, Kenya, Tanzania, ZIMBABWEE, Botswana, Libya), South and Middle America(GUATEMALLA, Mexico) and so on.
Choose our machineries, and let's earn the world. Awaiting for your inquiry sincerely.
Our products was certified by ISO9001-2008, CE, and GOST.
