Product Specifications
| Prod Model: |
JTZ-series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Decorative Coating, Widely Use in Automobile Parts |
| After Sales-Service: |
Engineers Available to Service Machinery Overseas |
| Brand: |
Hcvac |
| Control System: |
PLC+ Touch Screen, Automatic+ Manual |
| Coating Technology: |
Magnetron Sputtering Coating, Evaporation Deposite |
| Service: |
Installment, Training, Professional Solutions |
| Model: |
Jtz-Series |
| Raw Material: |
Chrome, Aluminum, Stainless Steel etc |
| Coating: |
Vacuum Coating |
| Type: |
Coating Production Line |
| Certification: |
CE,ISO9001,TUV,SGS |
| Substrate: |
Plastic&Alloys |
Product Description

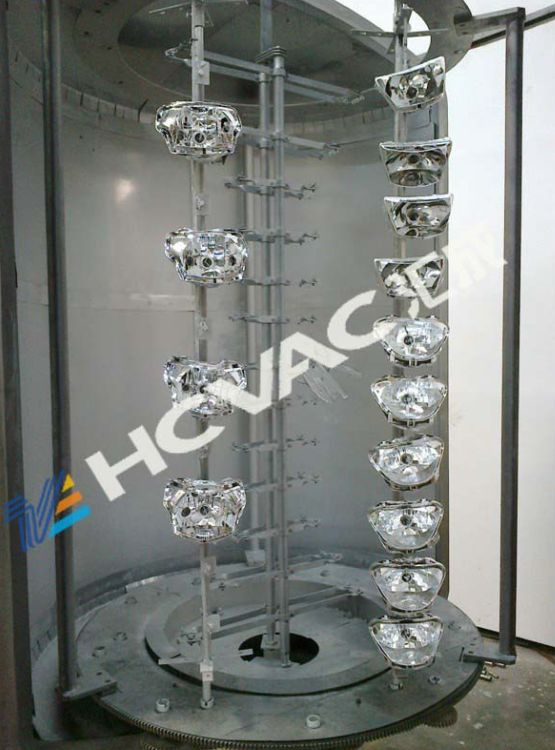

PVD Coating Machine for Automobile accessory
Feature:
1. Structure: Vertical&heritical type. It is a mluti-fucntion, high efficience machine. Configured with rotary arc target, one pair of twins (IF) magnetron sputtering target, Medium twins sputtering taget, non-balance sputtering target, DC impulse power according to users requirement.
2. Electroplating effects: Uniform, high density, strong adhesion.
3. Applied industry: Widely use to decrotive surfuce coating and dummy function like home appliance, Clock, Craft, toy, Car Light, Mobile key-press case&instrument ect.
Remark:
1-We can manufacture the machine zccording to client's requirements.
2-All our machines are the environmental prodection products.
Mode
Dimension | JTZ-1200 | JTZ-1400 | JTZ-1600 |
| 1200*1400mm | 1400*1800mm | 1600*1800mm |
| Film type | Meal film, translucent film, nonconductive film, electromagnetism shield film, dielectric film, etc. |
| Power source | Resistance evaporation power, DC magnetron power, |
| Sputtering and electrode structure | Column magnetron targets, plane rectangle targets, twin targets, evaporation electrode. |
| Vacuum chamber structure | Vertical double door, Vertical single door, pump system postposition, horizontal single door, pump system for side. |
| Ultimate vacuum | 4.0*10 -4 pa |
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump |
| Pump time | Pump from atmosphere to 8.5*10 -3 ,≤15 minutes |
| Workpiece motion mode | Public rotation/ Frequency control |
| Control mode | Manual/Automatic all in one mode, Touch screen + PLC |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
