Product Specifications
| Prod Model: |
PVDF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
1.76-1.78g/cm3 |
| Elongation At Break: |
300-450% |
| Temperature Range: |
-40 to 150 Celcius Degree |
| Material: |
PVDF |
| Tensile Strength: |
39-59mpa |
Product Description
PVDF
PVDF (PolyVinylindeneFluoride) is a specialty plastic material in the fluoropolymer family. Its tensile strength is two times higher than PTFE, the compressive strength six times higher than PTFE, and the abrasion resistance similar to nylon. PVDF can be injected, molded to sheet, rod, pipe and is widely applied in the fields of photovoltaic, semiconductor, aviation and aerospace, electric plating, chemical anti-corrosion lining, tube, pump, valve, gasket, impeller and electrical wire& cable protection.
Features:
Appearance: Smooth surface, uniform texture, white color
1. High mechanical strength & rigidity
2. Good toughness
3. Good sliding and abrasion resistance
4. Self-extinguishing
5. UV resistant
6. Corrosion resistant
7. Good aging resistant and electrical insulation
Typical application:
1. Photovoltaic
2. Semiconductor
3. Electrical plating, photovoltaic
4. Chemical corrosion resistant lining
5. Chemical storage and handling, such as tube, pump
6. Electrical wire and wire protection

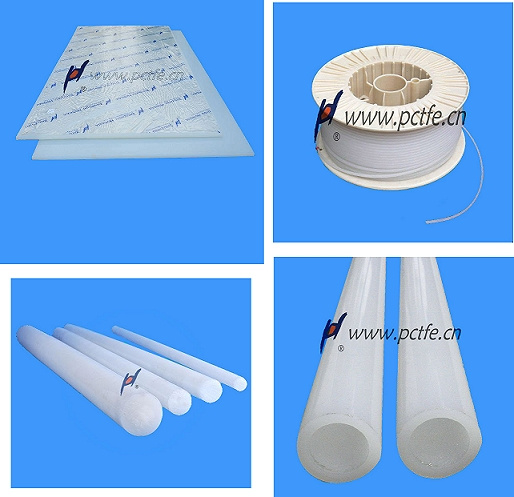

Specification(mm):
Molded rod dia5-25, length 200
Dia30-100, length 150;
Extruded rod dia10-250, length1000
Technical index:
|
Item |
Unit |
Test method/condition |
Index |
|
Density |
g/cm3 |
ASTM D792 |
1.76-7.18 |
|
Tensile strength |
MPa |
ASTM D638/23Celcius degree |
39-59 |
|
Elongation at break |
% |
ASTM D638/23Celcius degree |
300-450 |
|
Hardness |
shore |
Durometer |
D75-85 |
|
Coefficient of linear expansion |
1/Celcius degree |
ASTM D699/23-60Celcius degree |
4.2×10 -5 |
Zhuzhou Hongda Polymer Materials Co., Ltd. (Hongda for short) was founded in year 1999, it's an ISO9001: 2008 certified company, which is a a leading fluoropolymer & engineering plastics products manufactuer in China;
The main products includes but not limited to PVDF, PCTFE, PTFE, PFA, FEP, PEEK, UHMW-PE, PA, plastic machined parts, pipe fittings and anti-corrosion chemical equipments etc.
By "quality survival, seeking development and stress integrity" to establish the company brand image, we sincerely wish to establish partnership with customer all over the word based on sincere cooperation,
Interactive Win-Win and creating brilliance!
